Name
: Bitzer
Brand
: Germany brand
The compressor is the only engine of the refrigeration system, it's just
as the heart for a human being
, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
5980*1600*930mm
-
Weight:
-
2500 KG
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Frascold
-
Refrigerant:
-
R404a
-
Solenoid valve:
-
Castel/Danfoss
-
Cooling way:
-
Water Cooling
-
Compressor power:
-
28 HP X 2
-
Water tank material:
-
304# stainless steel
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380V~420V,60hz,3P/customized
-
Power:
-
42kw
-
Ice storage capacity:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
5980*1600*930mm
-
Weight:
-
2500 KG
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Frascold
-
Refrigerant:
-
R404a
-
Solenoid valve:
-
Castel/Danfoss
-
Cooling way:
-
Water Cooling
-
Compressor power:
-
28 HP X 2
-
Water tank material:
-
304# stainless steel
Product Description
Kingwell 25 kg 1 2 4 5 10 15 Ton Bloc de Glace Industrial Ice Block Making Machine to Africa

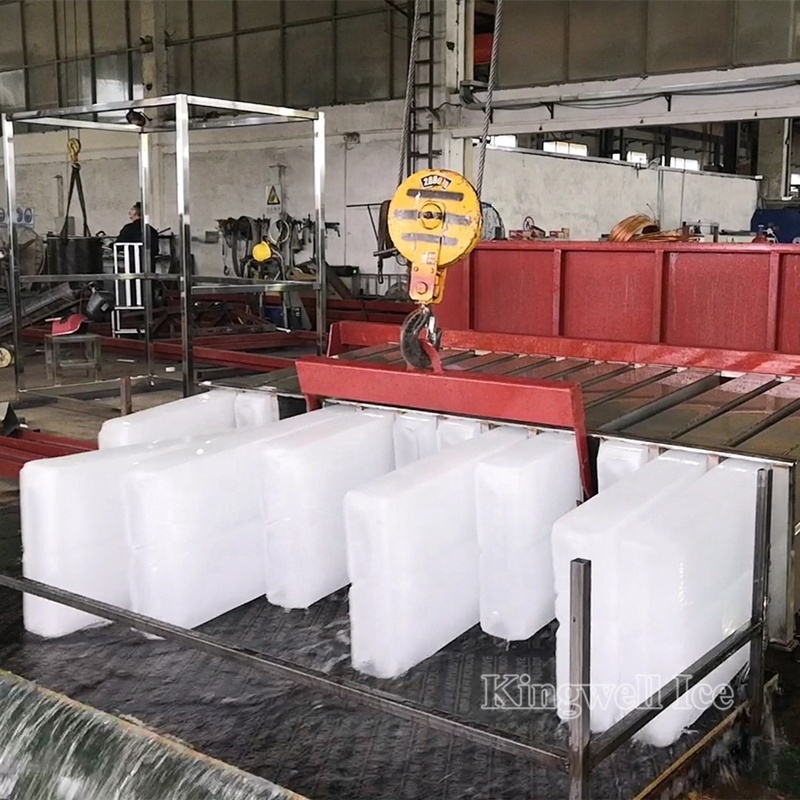

Salt water block ice machine
is a traditional ice block making machine, which is using salt water as secondary refrigerant , it had been widely used for years.
It consists of three major parts:
compressor machinery unit, salt water tank(with ice cans inside) and water cooling tower.
|
SPECIFICATIONS FOR 10 TONS PER DAY BLOCK ICE PLANT
|
|
|
|
|||
|
Compressor
|
Brand
|
Bitzer, Germany
|
|
|||
|
|
Horse Power
|
28HP * 2
|
|
|||
|
|
Type
|
Semi-hermetic compressor
|
|
|||
|
Technical specification
|
Supply Power
|
380V, 50Hz, 3Phase / Customized
|
|
|||
|
|
Input Water Temp.
|
21℃
|
|
|||
|
|
Condensing Temp.
|
40℃
|
|
|||
|
Measurement
|
Compressor machinery unit
|
2200mm(L)*990mm(W)*1400mm(H)
|
|
|||
|
|
Salt water tank
|
5980mm(L)*1600mm(W)*930mmmm(H)
|
|
|||
|
|
Water cooling tower
|
2000mm(L)*2000mm(W)*1700mm(H)
|
|
|||
Main Features
1). The block ice it created is
strong and hard
, do
not melt easily
, which is suitable for long-term and long-distance storage.
2).
Energy saving
: Using salt water as secondary refrigerant, which can help the ice freezing quicker, consumes less electricity.
Application
Widely application of block ice
1).Fishery
2). Foods processing
3). Fresh keeping
4). Cooling
5). Ice sculpture
Different ice cans
Stainless steel & galvanised steel ice cans
Technical Parameter
Notes:
* Power supply: 380V~420V, 60hz; 3P; 220V~240V, 60hz, 3P; 380V, 50HZ, 3P; 440~480V, 60HZ, 3P.
* Above capacity based on makeup water temperature of 21℃, evaporating temperature of -15℃
and condensing temp. 40℃. The actual capacity will be changed by different ambient temp. and make-up water temp.
* The daily capacity can be ranged from 1ton to 120 tons or we can design as per your requirements.
Detailed Images
Compressor
High/Low Pressure Controller
Name
: Danfoss
Brand
: Denmark brand
The high/low pressure controller is used as
pressure controller and pressure protector
, when the pressure of system reaches the setting point, it turns on or off automatically to keep the compressor refrigeration unit from damage.
Electrical components
Name
: LS
Brand
: South Korea brand
The electrical components like power switch, contactor, thermal relay are all protector for other refrigeration components.
Expansion Valve
Name
: Danfoss
Brand
: Denmark brand
World famous brand, with stable performance and low failure.
