Quick Details
-
Size:
-
Customers Request
-
Sample:
-
Provided
-
OEM:
-
YES
-
ODM:
-
YES
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Standard:
-
IEC 61109
-
Color:
-
Brown
-
Size:
-
Customers Request
-
Sample:
-
Provided
-
OEM:
-
YES
-
ODM:
-
YES

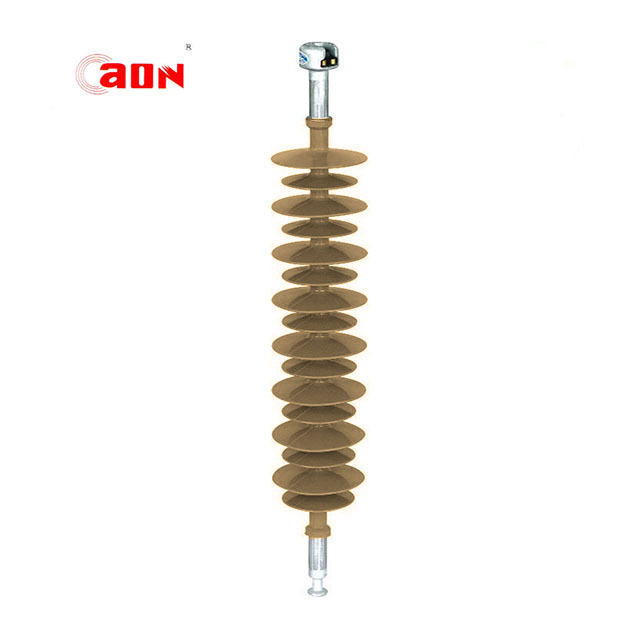

1.Size and technical data of High tension 66kV composite suspension polymer Insulators
TYPE:FXBW4-66/70
| Rated voltage(KV) | Rated mechanical tension load(KN) | Structure of coupling marks | Structure height(mm) | Min.Electric arc distance(mm) | Min nominal creepage distance(mm) | Full wave lightning impulse withstand voltage(peak value)not less than(kv) | 1min power frequency wet withstand voltage not less than(kv) |
| 66 | 70 | 16 | 880±15 | 701 | 1900 | 410 | 185 |
TYPE:FXBW4-66/100
| Rated voltage(KV) | Rated mechanical tension load(KN) | Structure of coupling marks | Structure height(mm) | Min.Electric arc distance(mm) | Min nominal creepage distance(mm) | Full wave lightning impulse withstand voltage(peak value)not less than(kv) | 1min power frequency wet withstand voltage not less than(kv) |
| 66 | 100 | 16 | 950±15 | 701 | 1900 | 410 | 185 |
2.Materials of High tension 66kV composite suspension polymer Insulators
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
3. Company advantage:
(The world's only one insulators maker who can produce all material as blow by ourselves)
1-We produce epoxy resin fiberglass rod.
2-We produce HTV silicone rubber.
3-We produce HDG metal fittings.
4-Famous and top brand in China.
5-Superior quality and competitive price.
6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.
7-Exported to more than 35 countries.
8-Guarantee: we can give 15 years wanrantee period after shipment.
9-ISO9001 and ISO14001 and third party support and assurance from Envertec-Europe.
