Quick Details
-
Power:
-
7.5 KW (Maximum), 20 KW (Maximum)
-
Dimension(L*W*H):
-
around 800*600*1600mm
-
Weight:
-
600
-
Applicable Industries:
-
card making
-
Product name:
-
A3Y PVC Card Laminating Machine with Hydraulic system
-
PVC sheet layout:
-
2*5 / 3*8
-
Laminating template size:
-
230*315mm / 320mm*500mm
-
Daylight number/distance:
-
1 tower, 3 hot daylights, 3 cool daylights, 50mm
-
Pressure control precision:
-
+/-0.5Mpa
-
Work pressure:
-
0-16Mpa (adjustable)
-
Temperature control precision:
-
+/- 1℃
-
Heating temperature:
-
≤200 ℃
-
Power supply:
-
AC380V 50/60HZ 3 phase 4 wires
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Sinocard
-
Voltage:
-
AC380V 3 phase 4 wires/220V
-
Power:
-
7.5 KW (Maximum), 20 KW (Maximum)
-
Dimension(L*W*H):
-
around 800*600*1600mm
-
Weight:
-
600
-
Applicable Industries:
-
card making
-
Product name:
-
A3Y PVC Card Laminating Machine with Hydraulic system
-
PVC sheet layout:
-
2*5 / 3*8
-
Laminating template size:
-
230*315mm / 320mm*500mm
-
Daylight number/distance:
-
1 tower, 3 hot daylights, 3 cool daylights, 50mm
-
Pressure control precision:
-
+/-0.5Mpa
-
Work pressure:
-
0-16Mpa (adjustable)
-
Temperature control precision:
-
+/- 1℃
-
Heating temperature:
-
≤200 ℃
-
Power supply:
-
AC380V 50/60HZ 3 phase 4 wires

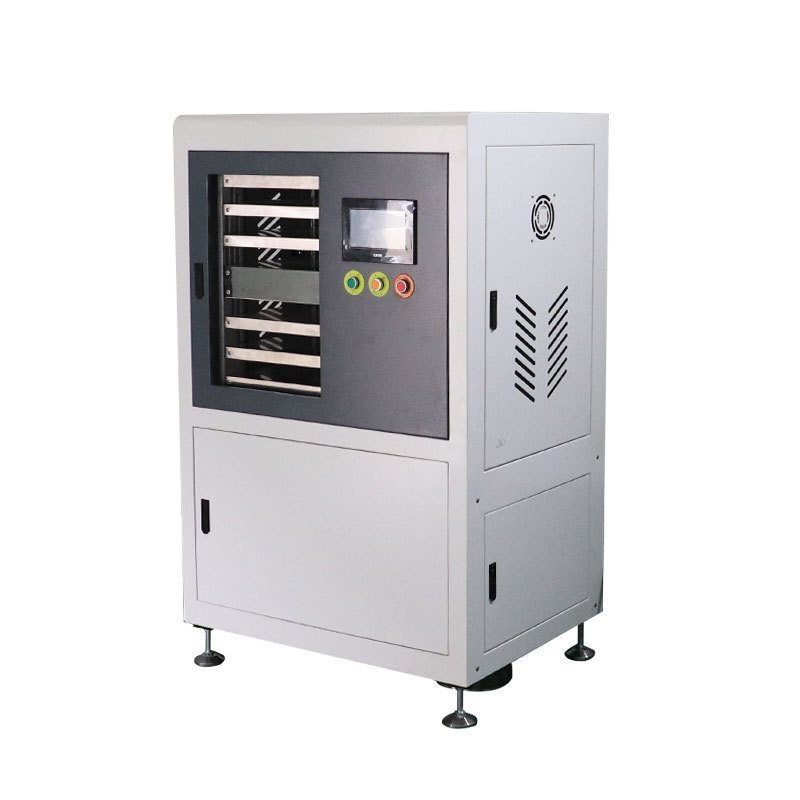

A3Y PVC Card Laminating Machine with Hydraulic system
Factory A3 Size Automatic PVC Card Laminating Machine / RFID Card Inlay Laminator
It is controlled by PLC system to ensure more precise control in each lamination stage and more reliable performance.
This model is specially designed for the quality lamination of various cards including RFID chip cards.
The big size cooling parallel loop is specially designed to ensure better cooling effect.
Technical Parameters:
| PVC sheet layout |
2 * 5 / 3*8 |
| Laminating template size |
230×315mm / 320mmx500mm |
| Daylight number/distance | 1 tower, 3 hot daylights, 3 cool daylights, 50mm |
| Pressure control precision | +/-0.5Mpa |
| Work pressure | 0-16Mpa (adjustable) |
| Temperature control precision | +/- 1℃ |
| Heating temperature | ≤200 ℃ |
| Power | 20 KW (Maximum) |
| Power supply | AC380V 50/60HZ 3 phase 4 wires |
| Dimension | around 800×600×1600mm |
| Gross weight | around 600 kg |
Standard Export Wooden Box/Carton
