Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yanfeng
-
Model Number:
-
QPT-6528K
-
Product name:
-
Used to replace Atomex XM-68 Air Powered Airless Sprayer Bare
-
Pressure Ratio:
-
45:1
-
Max Flow:
-
28 LPM
-
Max Pump Speed:
-
60 Cycles Per Minute
-
Max Fluid Pressure:
-
4500 psi
-
Max Air Pressure:
-
100 psi
-
Max Air Consumption:
-
124 SCFM
-
Air Motor Size:
-
254mm
-
Stroke:
-
120mm
-
Key words:
-
Air Powered Airless Sprayer
Quick Details
-
Type:
-
Airless Spray Gun
-
Application:
-
Paint Spray Gun
-
Cup Volume:
-
NO
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yanfeng
-
Model Number:
-
QPT-6528K
-
Product name:
-
Used to replace Atomex XM-68 Air Powered Airless Sprayer Bare
-
Pressure Ratio:
-
45:1
-
Max Flow:
-
28 LPM
-
Max Pump Speed:
-
60 Cycles Per Minute
-
Max Fluid Pressure:
-
4500 psi
-
Max Air Pressure:
-
100 psi
-
Max Air Consumption:
-
124 SCFM
-
Air Motor Size:
-
254mm
-
Stroke:
-
120mm
-
Key words:
-
Air Powered Airless Sprayer
Product Overview

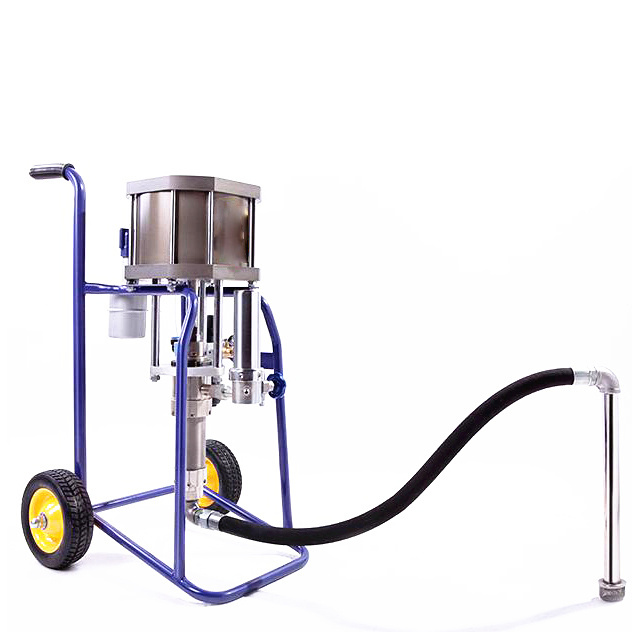

QPT-6528K Air Powered Airless Sprayer
The QPT-6528K air powered airless sprayers are specially designed for both small and large workshops where large volumes of paint product need to be applied.The long slow piston stroke delivers no pulsation at the spray tip ensuring a high quality finish on every pass. Large high pressure fluid filters are standard on this model to reduce rubbish in the paint causing tip blockages and wear.
FEATURES AT A GLANCE
YANFENG QPT-6528K Air Powered Airless Sprayer Package
The YANFENG QPT-6528K air powered airless sprayer comes standard with 20 litre drum suction hose set, 15m x 3/8” paint hose, 1.8m x 1/4” whip hose, SPQ2Aairless spray gun and 517 XHD-y reversible spray tip.
The YANFENG QPT-6528K Air Powered Airless Sprayer features:
Economical long lasting fluid pump and air motor
Full spare parts back up
Balanced fluid manifold
No pulsation delivery of paint
All metal construction, no plastic covers to break
Comes standard with the SPQ2A airless spray gun
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Pressure Ratio
|
45:1
|
|
2
|
Max Flow
|
28 LPM
|
|
3
|
Max Pump Speed:
|
60 Cycles Per Minute
|
|
4
|
Max Fluid Pressure:
|
4500 psi
|
|
5
|
Max Air Pressure
|
100 psi
|
|
6
|
Max Air Consumption
|
124 SCFM
|
|
7
|
Air Motor Size
|
254mm
|
|
8
|
Stroke
|
120mm
|
Exhibition
Details Images
Oil-water separation system
USA 440 grade stainless steel pump body
Available in 45:1, 56:1 and 68:1 pump ratio’s to suit a wide range of industrial paint applications.
CONTACT US
Title goes here.
Contact: Pan Yuanzhen
Phone: +86 13515161964 (WhatsApp\WeChat)
Fax: +86 0523 84316778
Email: zhenjie@jjyanfeng.com
Postal Code: 214500
SALES AND SERVICE NETWORK
FAQ
A.What are your main products?
Q: Our manufactory concertrate on offering airless sprayer with reliable quality. Our products range include electric, petrol,
pneumatic and hydraulic airless sprayers and spare parts.
A. How to guarantee the products quality?
Q: We use materials with superior quality, like worldclass imported bearing and gears with level 5 grinding.
We have CE certificate for our machines.
We use high-technology equipments like CNC, HAAS equipments to make precise spare parts.
We test every machine for half an hour before shipment to ensure quality.
A.What is the warranty
Q: Provide one-year warranty.
Offer technical support for life.
A.Can you accept OEM service?
Q: Yes,we provide OEM service. You can tell us your requirement.
A.What is your after-sale service?
Q: Train you how to use and maintain machines.
send you free replacement if parts are guaranteed in one-year warranty
Q: Our manufactory concertrate on offering airless sprayer with reliable quality. Our products range include electric, petrol,
pneumatic and hydraulic airless sprayers and spare parts.
A. How to guarantee the products quality?
Q: We use materials with superior quality, like worldclass imported bearing and gears with level 5 grinding.
We have CE certificate for our machines.
We use high-technology equipments like CNC, HAAS equipments to make precise spare parts.
We test every machine for half an hour before shipment to ensure quality.
A.What is the warranty
Q: Provide one-year warranty.
Offer technical support for life.
A.Can you accept OEM service?
Q: Yes,we provide OEM service. You can tell us your requirement.
A.What is your after-sale service?
Q: Train you how to use and maintain machines.
send you free replacement if parts are guaranteed in one-year warranty
