Quick Details
-
Power:
-
0.2W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hesida
-
Model Number:
-
HSD-SL813
-
Product name:
-
Rear View Reversing Camera
-
Image sensor:
-
1/3" CMOS,1/4'' CMOS,1/4.5'' CMOS,1/6'' CMOS
-
Resolution:
-
750*540,1080*720,1920*1080
-
Lens Angle:
-
70-180°,180-220°
-
Waterproof:
-
IP 69K
-
Night vision:
-
Top Starlight Night Vision
-
Feature:
-
Switch wire for parking line/mirror image /CVBS/AHD
-
Operating temperature:
-
-40~85°C
-
Application:
-
Automotive Universal Car Models
-
Power Supply:
-
DC 12-24V
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
170°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
0.2W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hesida
-
Model Number:
-
HSD-SL813
-
Product name:
-
Rear View Reversing Camera
-
Image sensor:
-
1/3" CMOS,1/4'' CMOS,1/4.5'' CMOS,1/6'' CMOS
-
Resolution:
-
750*540,1080*720,1920*1080
-
Lens Angle:
-
70-180°,180-220°
-
Waterproof:
-
IP 69K
-
Night vision:
-
Top Starlight Night Vision
-
Feature:
-
Switch wire for parking line/mirror image /CVBS/AHD
-
Operating temperature:
-
-40~85°C
-
Application:
-
Automotive Universal Car Models
-
Power Supply:
-
DC 12-24V
1. Worked with more than
10+
car plant .
2. Annual sales is more than 50 million US dollars for parking reverse aid,we supply car reverse aid product to all over the world.
3.Support Free customization logo .
4. Strong supply capacity,We have 12 production line .
5. Customized products function and housing. we private owned industied design team,including PCB,UI,products shap.
6. Woked with 20+ car dealer, 3000+ car showroom around the world.
2. Annual sales is more than 50 million US dollars for parking reverse aid,we supply car reverse aid product to all over the world.
3.Support Free customization logo .
4. Strong supply capacity,We have 12 production line .
5. Customized products function and housing. we private owned industied design team,including PCB,UI,products shap.
6. Woked with 20+ car dealer, 3000+ car showroom around the world.

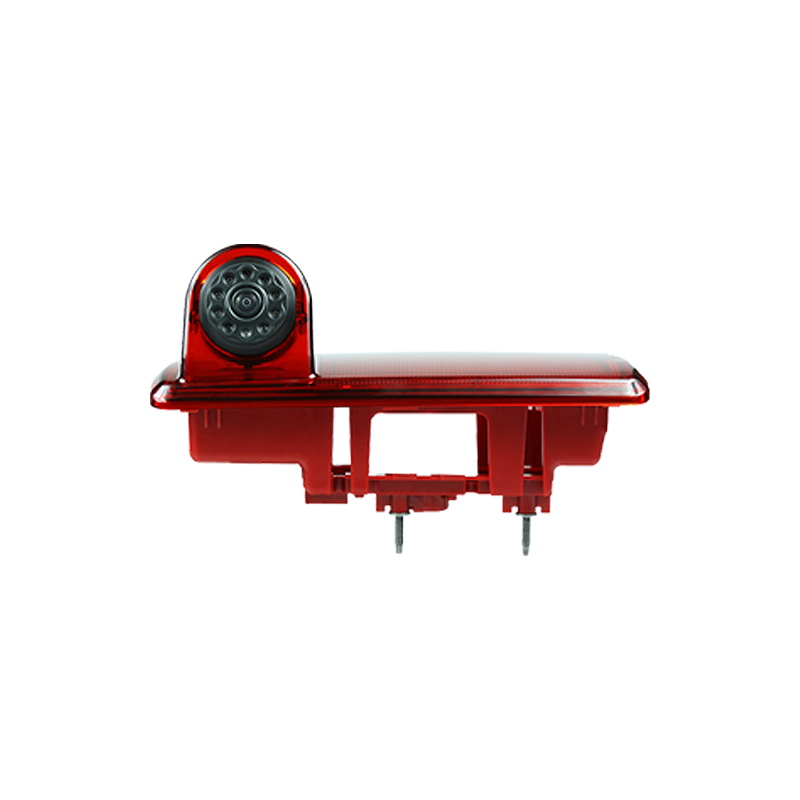

Hesida Auto Reversing IR Led Light Vehicle Camera Car Brake Light Rear View Camera For 2014 Opel Vivaro / 2014 Renault Trafic
|
Multiple Sensor for you optional
|
|
|
|
|
|
|||||
|
Image Sensor
|
Color PC7070(1/4)
|
Color MT 9V136(1/4)
|
Color FPX8341 (1/3)
|
Color PC3089K (1/3)
|
Color PC1058K(1/3)
|
|||||
|
TV System
|
PAL/NTSC
|
PAL/NTSC
|
PAL/NTSC
|
PAL/NTSC
|
PAL/NTSC
|
|||||
|
Effective Pixels
|
640*40Pixels
|
720*576 Pixels
|
736*592 Pixels
|
756*504 Pixels
|
976*592 Pixels
|
|||||
|
Horizontal resolution
|
420TVL
|
480TVL
|
480TVL
|
500TVL
|
600TVL
|
|||||
|
Effective image area
|
3.63mm*2.73mm
|
3.584mm*2.688mm
|
4.732mm*3.57mm
|
4.8mm*3.73mm
|
4.88mm*3.67mm
|
|||||
|
Shutter speed
|
1/60-1/5000
|
1/60-1/510000
|
1/60-1/510000
|
1/60-1/510000
|
1/60-1/510000
|
|||||
|
Min Illumination
|
0.1lUX/F=1.2(OLux with ON
|
0.01lUX/F=1.2(OLux with ON
|
0.01lUX/F=1.2(OLux with ON
|
0.01lUX/F=1.2(OLux with ON
|
0.01lUX/F=1.2(OLux with ON
|
|||||
|
Video output
|
1.0vP-Pat 75 ohm
|
1.0vP-Pat 75 ohm
|
1.0vP-Pat 75 ohm
|
1.0vP-Pat 75 ohm
|
1.0vP-Pat 75 ohm
|
|||||
|
Power Supply
|
DC12V
|
DC12V
|
DC12V
|
DC12V
|
DC12V
|
|||||
|
Operating temperature
|
-30°C-70°C,RH 95% MAX
|
-30°C-70°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
|||||
|
Storage temperature
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
-40°C-85°C,RH 95% MAX
|
|||||
|
Lens angle
|
170deree
|
170deree
|
170deree
|
170deree
|
170deree
|
|||||
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
|||||
|
White Balance
|
Auto
|
Auto
|
Auto
|
Auto
|
Auto
|
|||||
Wide view angle AHD/CVBS/LVDS/TVI Car Camera:
120~175degree optional ,we have different lens for you choose ;720p/1080p optional,the resolution is 1080*720p and 1920*1080p.
120~175degree optional ,we have different lens for you choose ;720p/1080p optional,the resolution is 1080*720p and 1920*1080p.
Support to Switch CVBS/AHD video signal:
This Car camera supports AHD and CVBS screen,you can choose the camera’s video signal according screen’s signal.The default set is
AHD signal,you only cut the the brown loop wire when you want CVBS video signal and reboot the power supply.
Switch parking line on and off:
The default set have parking line,please cut the green loop wire when you don't want the parking line,then reboot the power
supply.
Switch mirror iamge and erect iamge.
The default set is mirror image (for rear view) ,please cut the white loop wire when you want erect image (for front view),then reboot the power supply.
This Car camera supports AHD and CVBS screen,you can choose the camera’s video signal according screen’s signal.The default set is
AHD signal,you only cut the the brown loop wire when you want CVBS video signal and reboot the power supply.
Switch parking line on and off:
The default set have parking line,please cut the green loop wire when you don't want the parking line,then reboot the power
supply.
Switch mirror iamge and erect iamge.
The default set is mirror image (for rear view) ,please cut the white loop wire when you want erect image (for front view),then reboot the power supply.
Support waterproof IP68
Adopting precise glue filling technology and undergoing strict water bubble and vibration testing, it can work normally even in complex weather and road conditions
Installation
Supports various installation locations
Installation method
