Quick Details
-
Brand Name:
-
TOPFRP
-
Model Number:
-
TOP001
-
Surface Treatment:
-
Smooth
-
Product Name:
-
Fiber Glass rod / bar / pole
-
Material:
-
Fiberglass reinforced polymer ( GFRP)
-
Color:
-
White,green,Yellow,Black,or Customized
-
Diameter:
-
From1mm--130MM
-
Length:
-
Arbitrarily cut as required
-
Shape:
-
Round, square, hollow, solid,Flat,etc
-
Features:
-
High Strength,Anti-corrosion,Insulation
-
Use:
-
Engineering anchor rod,arch shed/flower/melon/vineyard support rod
-
OEM:
-
Accepted
-
Advantage:
-
LOW MOQ
Quick Details
-
Application:
-
snow marker,Plant support,Tent
-
Technique:
-
Pultrusion
-
Place of Origin:
-
China
-
Brand Name:
-
TOPFRP
-
Model Number:
-
TOP001
-
Surface Treatment:
-
Smooth
-
Product Name:
-
Fiber Glass rod / bar / pole
-
Material:
-
Fiberglass reinforced polymer ( GFRP)
-
Color:
-
White,green,Yellow,Black,or Customized
-
Diameter:
-
From1mm--130MM
-
Length:
-
Arbitrarily cut as required
-
Shape:
-
Round, square, hollow, solid,Flat,etc
-
Features:
-
High Strength,Anti-corrosion,Insulation
-
Use:
-
Engineering anchor rod,arch shed/flower/melon/vineyard support rod
-
OEM:
-
Accepted
-
Advantage:
-
LOW MOQ
|

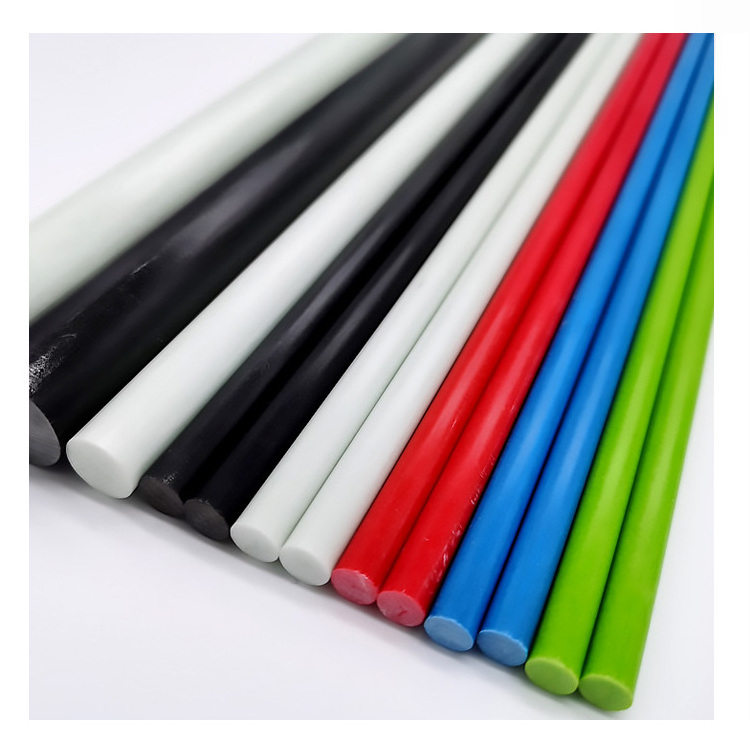

Fiberglass Rod
* E-class ( Fiberglass)+ Epoxy resin (Iso 9001-2008 Compliant)*
*the below sheet is our stock size ,custom size,custom shape and custom color can be accpted *
|
|
|
|
|
||||
|
Diameter (mm)
|
Diameter (inch)
|
|
Diameter (mm)
|
Diameter (inch)
|
||||
|
0.6
|
0.024
|
|
9
|
0.354
|
||||
|
0.8
|
0.031
|
|
9.525
|
3/8
|
||||
|
1
|
0.039
|
|
10
|
0.394
|
||||
|
1.5
|
0.059
|
|
10.5
|
0.413
|
||||
|
2
|
0.079
|
|
11
|
0.433
|
||||
|
2.5
|
0.098
|
|
12
|
0.4724
|
||||
|
3
|
0.118
|
|
12.7
|
1/2
|
||||
|
3.175
|
1/8
|
|
13
|
0.512
|
||||
|
3.5
|
0.138
|
|
15.875
|
5/8
|
||||
|
4
|
0.157
|
|
16
|
0.630
|
||||
|
4.7625
|
3/16
|
|
19.05
|
3/4
|
||||
|
5
|
0.197
|
|
20
|
0.787
|
||||
|
5.5
|
0.216
|
|
25.4
|
1
|
||||
|
6
|
0.236
|
|
28
|
1.1
|
||||
|
6.35
|
1/4
|
|
30
|
1.1811
|
||||
|
7
|
0.275
|
|
50.8
|
2
|
||||
|
8
|
5/16
|
|
76.2
|
3
|
||||
|
|
|
|
130
|
5.118
|
||||
------------------------------------------- Application of the Fiberglass Rod ------------------------------------------------
1,Plant support rod:High strength\no rust\no fading\Oxidation resistance\long life
2,Safety Markers:
360° reflector\snow markers\driveway markers
3,tent pole :Light weight, strong toughness, anti-oxidation,no rust,no fading
4,other Application:
What do you do with it, I will give you the best advice.please tell me
|
Light Weight
High Strength
|
Low Density: about 1.8, 1/4 of steel,
Specific strength:Same strength as steel
|
|
|
||
|
Non-Conductive Thermally And Electrically
|
Good performance of electric insulation,10KV no voltage breakdown.
No electro-magnetic behavior. No electric spark. Oxygen index≥32,
Anti-fire and Pass test of ASTM-E84.
|
|
|
||
|
High Corrosion Resistance
|
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
|
|
|
||
|
Anti-aging
|
Have more than 20 years effective service life under normal outdoor working condition.
|
|
|
||
|
physical properties
|
|
|
mechanical property
|
|
|
||||
|
Density
|
g/cm3
|
1.7~2.0
|
Barcol hardness
|
|
≥55
|
||||
|
Fiberglass content
|
%
|
50~65
|
Tensile Strengh(lengthways)
|
Mpa
|
≥550
|
||||
|
Water Absorption
|
%
|
≤0.2
|
Tensile Strengh(crosswise)
|
Mpa
|
≥65
|
||||
|
electrical property
|
|
|
Flexural Strengh(lengthways)
|
Mpa
|
≥600
|
||||
|
breakdown voltage
|
kv/mm
|
≥10
|
Flexural Strengh(crosswise)
|
Mpa
|
≥70
|
||||
|
Arc Resistance
|
S
|
≥180
|
Hole crushing strength(lengthways)
|
Mpa
|
≥90
|
||||
|
Comparative tracking index
|
V
|
≥600
|
Hole crushing strength(crosswise)
|
Mpa
|
≥50
|
||||
|
|
|
|
shear strength
|
Mpa
|
≥15
|
||||
Malaysia Customer
Australian Customer
South Africa's Customer
|
If you have any questions about the product, please feel free to contact us.
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
