Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K-6500K
-
Product Weight（kg）:
-
1.6
-
Wattage:
-
100W
-
Lamp Luminous Flux(lm):
-
15000
-
Brand Name:
-
IShineLux
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
60°/ 90°/ 110°
-
Input Voltage(V):
-
AC100-277V
-
CRI (Ra>):
-
80
-
Solution options:
-
On-Off, 0-10V, DALI
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Light Source:
-
LED
-
Application:
-
Warehouse, Factory, Workshop, Supermarket, Logisti
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K-6500K
-
Product Weight（kg）:
-
1.6
-
Wattage:
-
100W
-
Lamp Luminous Flux(lm):
-
15000
-
Brand Name:
-
IShineLux
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
60°/ 90°/ 110°
-
Input Voltage(V):
-
AC100-277V
-
CRI (Ra>):
-
80
-
Solution options:
-
On-Off, 0-10V, DALI
Product Description

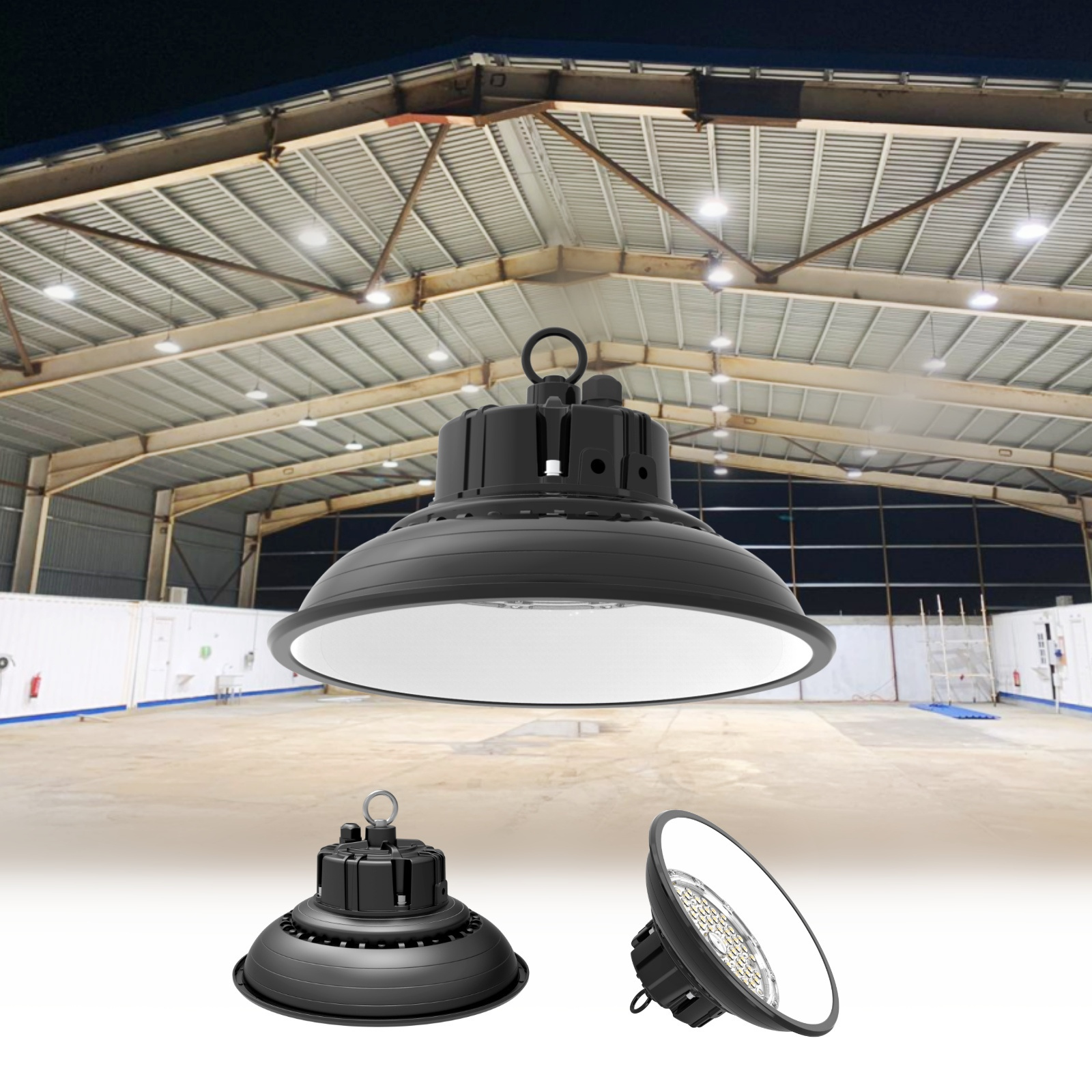

IP65 Commercial Industrial LED High Bay Light 100W 150W 200W
■ Unique elegant design in appearance, perfectly to replace MH&HPS High Bay
■ Integrated AL reflector and optical design, achieves low glare, ideally for supermarket, shopping mall and other commercial applications
■ Integrated AL reflector saves additional cost and time for projects need reflectors, such as labor cost, installation time
■ Incorporates rotating carving technology into the heat sink, 1070AL with 99% purity, thermal conductivity 236W/(m*k)@25℃, ensures excellent thermal management
■ Cavity structure, removes heat from inside of the heat sink
■ Top brand LED chip and driver, ensure the product quality and lifetime
■ Optical lighting distributions: 60°, 90°,110°
■ High luminous efficacy: 150lm/W
■ Ingress protection & Impact protection rating: IP65 & IK08
■ Deal direct with a manufacture, competitive price
Specification
|
Product Specification
|
|
|
|
Elegant I UFO High Bay Light 100W-200W
|
|
|
|
100W
|
ø290*179mm
|
|
|
150W
|
ø340*185mm
|
|
|
200W
|
ø360*191mm
|
|
|
Input Voltage
|
100-277VAC, 50/60Hz
|
|
|
Light Efficiency
|
150lm/W
|
|
|
CCT
|
3000K, 4000K, 5000K, 5700K, 6500K
|
|
|
CRI
|
80Ra
|
|
|
Beam Angle
|
60°, 90°, 110°
|
|
|
Solution options
|
On-Off
|
|
|
|
0-10V Dimming
|
|
|
|
DALI Dimming
|
|
|
IP Rating
|
IP65
|
|
|
IK Rating
|
IK08
|
|
|
Warranty
|
5Years
|
|
Beam Angle
Details Images
Installation
Application Scenario
It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Logistics Center, Gas Station, Indoors Stadium Light, Highway Toll Station, etc.
