Quick Details
-
Product Name:
-

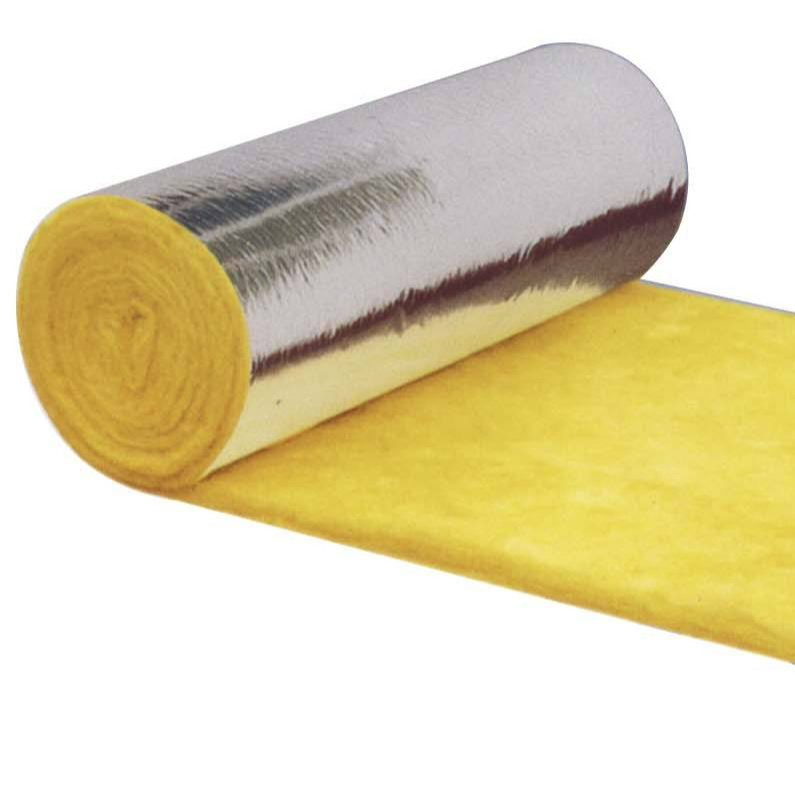

Glass wool Insulation Materials
-
Service Temperature:
-
350℃
-
Function:
-
Heat preservation, noise reduction, flame retardant, durable
-
Density:
-
10-80kg/m3
-
Certificate:
-
CE/BS476/FM/ASNZ/ISO
-
Length:
-
5-30m
-
Width:
-
1.2m
-
Thickness:
-
25mm-200mm
-
Thermal conductivity:
-
0.032-0.042 w/m.k
Quick Details
-
Place of Origin:
-
Hebei
-
Brand Name:
-
HUAYUE
-
Model Number:
-
HYG-10
-
Product Name:
-
Glass wool Insulation Materials
-
Service Temperature:
-
350℃
-
Function:
-
Heat preservation, noise reduction, flame retardant, durable
-
Density:
-
10-80kg/m3
-
Certificate:
-
CE/BS476/FM/ASNZ/ISO
-
Length:
-
5-30m
-
Width:
-
1.2m
-
Thickness:
-
25mm-200mm
-
Thermal conductivity:
-
0.032-0.042 w/m.k
fire resistant yellow fiberglass insulation aluminium pipe acoustic insulated flexible duct for ventilation
Specification of Huayue® Glass Wool Roll Insulation
|
Model
|
Density (Kg/m3)
|
Thickness (mm)
|
Width (mm)
|
Length (mm)
|
Thermal conductivity
(W/(m·K)) |
|
GWR10
|
10
|
50
|
1200
|
30000
|
0.044
|
|
|
|
75
|
1200
|
20000
|
|
|
|
|
100
|
1200
|
15000
|
|
|
GWR12
|
12
|
40
|
1200
|
30000
|
0.042
|
|
|
|
50
|
1200
|
30000
|
|
|
|
|
75
|
1200
|
20000
|
|
|
|
|
100
|
1200
|
15000
|
|
|
GWR16
|
16
|
25
|
1200
|
30000
|
0.039
|
|
|
|
50
|
1200
|
15000
|
|
|
|
|
75
|
1200
|
10000
|
|
|
|
|
100
|
1200
|
7500
|
|
|
GWR24
|
24
|
25
|
1200
|
20000
|
0.036
|
|
|
|
50
|
1200
|
10000
|
|
|
|
|
75
|
1200
|
10000
|
|
|
|
|
100
|
1200
|
5000
|
|
|
GWR32
|
32
|
25
|
1200
|
20000
|
0.035
|
|
|
|
50
|
1200
|
10000
|
|
|
|
|
75
|
1200
|
10000
|
|
|
|
|
100
|
1200
|
5000
|
|
|
GWR48
|
48
|
25
|
1200
|
20000
|
0.032
|
|
|
|
50
|
1200
|
10000
|
|
|
|
|
75
|
1200
|
5000
|
|
|
|
|
100
|
1200
|
5000
|
|
Glass Wool Insulation Blanket Technical Parameters
|
PROPERTY
|
|
TEST METHOD
|
PERFORMANCE
|
|
|
Maximum Service Temperature
|
|
ASTM C411
|
850°F (454°C)
|
|
|
Thermal Conductivity
|
|
ASTM C518
|
0.033-0.044 (W/m·K)
|
|
|
Corrosion Resistance
|
|
ASTM C665
|
Meets requirements
|
|
|
Fungi Resistance
|
|
ASTM C1338
|
Meets requirements
|
|
|
Shot Content
|
|
GB/T 5480.5
|
Free of shot
|
|
|
Moisture Absorption
|
|
ASTM C1104
|
<1% by weight
|
|
|
Combustion Performance
|
Surface Burning Characteristics
|
ASTM E84
|
Flame Spread: 25
Smoke Developed: 50
|
|
|
|
-
|
ASTM E84
|
Grade A Non-Combustibility
|
|
|
|
-
|
BS 476
|
Class 0
|
|
Glass Wool Insulation Blanket Distinctive Advantages:
✅Very economical, improve the energy efficiency of the building;
✅Very economical, improve the energy efficiency of the building;
✅Reduce transmission of exterior sound to the interior of the building;
✅Absorb reverberating sounds within the building;
✅Provide thermal efficiency;
✅Keep the building warmer in winter and cooler in summer;
✅Light weight and easy to fabricate on job site;
✅Non-combustible and fire-retardant;
✅Durable, life-time.
✅Absorb reverberating sounds within the building;
✅Provide thermal efficiency;
✅Keep the building warmer in winter and cooler in summer;
✅Light weight and easy to fabricate on job site;
✅Non-combustible and fire-retardant;
✅Durable, life-time.
