Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FC
-
Model Number:
-
FC-MI003-3
-
Technology:
-
Pinhole
-
resolution:
-
420TVL-700TVL optional
-
sensor:
-
SONY / SHARP CCD
-
Minimum Illumination:
-
1.0LUX/F1.2
-
Lens type:
-
3.6mm pin hole
-
KEY WORD:
-
mini camera night vision
Quick Details
-
Special Features:
-
NIGHT VISION, 3.6mm board lens
-
Function:
-
NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FC
-
Model Number:
-
FC-MI003-3
-
Technology:
-
Pinhole
-
resolution:
-
420TVL-700TVL optional
-
sensor:
-
SONY / SHARP CCD
-
Minimum Illumination:
-
1.0LUX/F1.2
-
Lens type:
-
3.6mm pin hole
-
KEY WORD:
-
mini camera night vision

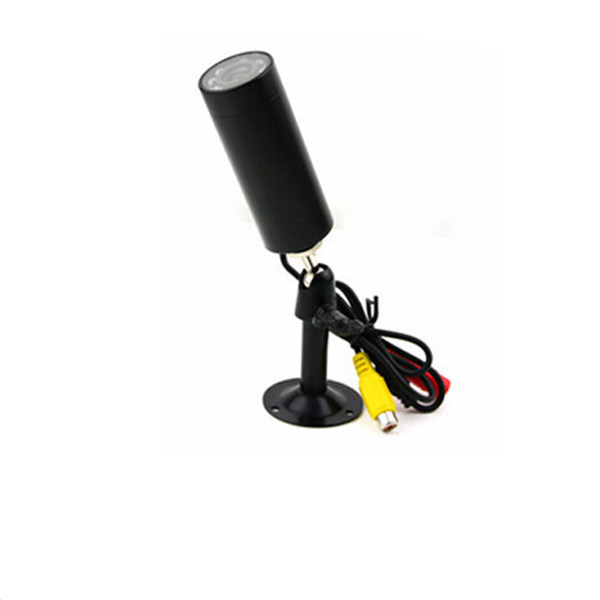

AHD network night vision waterproof camera 700tvl & 1200tvl 3.6mm board lens cctv mini bullet camera
Main features:
- Mini style, easy handle, convenient use
- 420/480/550/650/700TVL are optional
- Pinhole lens/board lens are optional
- 1.0/0.5/0.01Lux are optional
- Size: 20x20mm, 25x25mm, 30x30mm, 34x34mm are optional
- Adopt full metal shell structure design, hard and practical performance
- with U type bracket
|
Image Pick-up Device |
1/3" SONY COLOR CCD |
|
Horizontal Resolution |
420-700 TV Lines |
|
Number of Pixels |
NTSC:811(H)x508(V); PAL:795(H)x596(V) |
|
Scanning System |
NTSC:525 Lines,60 Field/sec, |
|
PAL:625 Lines 50 Field/sec |
|
|
Sync System |
Internal Synchronization |
|
Gamma Characterlstic |
0.45 |
|
S/N Ratio |
more than 48dB(AGC Off) |
|
Electronic Shutter Time |
NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; |
|
Minimum Illumination |
0.5Lux |
|
Video Output |
1.0Vp-p 75 ohm |
|
Gain Control(AGC) |
Auto |
|
Operation Temperature |
-10C~ +50C RH95% MAX |
|
Storage Temperature |
-20C~ +60C RH95% MAX |
|
Power Supply |
DC12V+_10%,120mA |
|
Dimension |
34x34mm,2-boards |
|
Case |
Black,with U typebracket |
|
weight |
0.12kg |
