Quick Details
-
Description:
-

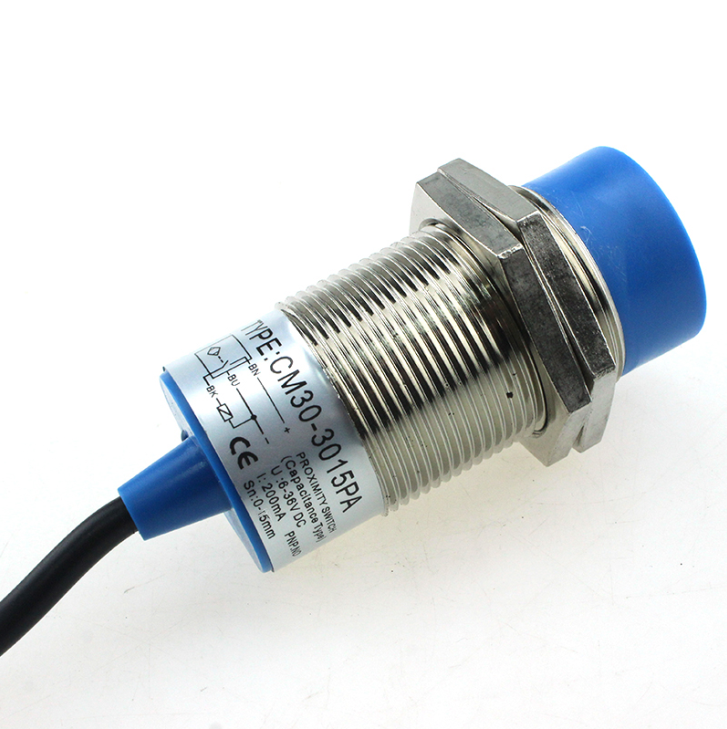

Cylindrical metal housing M18 SN:15mm, Capacitive approach switch
-
Model Number:
-
CM30-3015PA
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Jiade
-
Theory:
-
Capacitance sensor
-
Output:
-
Switching Transducer
-
Working voltage:
-
6-36VDC
-
Output form:
-
3wires PNP
-
Output state:
-
NO
-
installation:
-
Non-Flush
-
Sensing Object:
-
conductor and dielectric body
-
Detection distance:
-
15mm
-
Working temperature:
-
-25℃~+70℃
-
Insulation resistance:
-
50MΩ
-
Protection grade:
-
IP54
-
Response frequency:
-
50Hz
Quick Details
-
Use:
-
Position Sensor
-
Series:
-
CM30
-
Mounting Type:
-
Non-Flush
-
Description:
-
Cylindrical metal housing M18 SN:15mm, Capacitive approach switch
-
Model Number:
-
CM30-3015PA
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Jiade
-
Theory:
-
Capacitance sensor
-
Output:
-
Switching Transducer
-
Working voltage:
-
6-36VDC
-
Output form:
-
3wires PNP
-
Output state:
-
NO
-
installation:
-
Non-Flush
-
Sensing Object:
-
conductor and dielectric body
-
Detection distance:
-
15mm
-
Working temperature:
-
-25℃~+70℃
-
Insulation resistance:
-
50MΩ
-
Protection grade:
-
IP54
-
Response frequency:
-
50Hz
Product Description
|
MODEL EXPLANATION OF PROXIMITY SWITCH
|
|
CM
18
-
30
05
N
A
□
/
L
1 2 3 4 5 6 7 8 |
|
|
|
1.SWITCH CATEGORY
|
|
Lm: Inductance type
Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type |
|
|
|
|
|
|
|
|
|
|
|
|
|
2.OURWARD APPEARANCE CODE
|
|
❏:Cylinder type
F❏:Angular Column Type And Plane Installation Type |
|
|
|
3.WORKING VOLTAGE
|
|
20:90-250VAC 210:24-250VAC 220:380VAC
30:6-36VDC 310:5-24VDC 320:12-60VDC 330:10-30VDC 340:10-55VDC 350:10-60VDC 360:5-36VDC 40:12-240VDC/24-240VAC 50:Special voltage |
|
|
|
|
|
|
|
|
|
4.DETECTION DISTANCE
|
|
01:1mm 05:5mm 10:10mm ……
|
|
5.OUTPUT FORM
|
|
N:Three-wire Dc NPN Output
P:Three-wire Dc PNP Output L:Two-wire DC Output :Ac Two-wire Output J:Relay Contact Output NP:NPN+PNP Double Output |
|
|
|
|
|
|
|
|
|
|
|
6.OUTPUT STATE
|
|
A:Normally Open (NO) B:Normally Close (NC)
C:Normally Open-Normally Close (NO+NC) Mu:Mimic Voltage Mi:Mimic Current Mui:Voltage+Current |
|
|
|
|
|
|
|
7.SUBSIDIARY FUNCTIONS
|
|
T:with aviation connector Y:water proof,oil proof
I:special requir ement H:high temp resistance R:ring type |
|
|
|
|
|
8.LONG-DISTANCE
|
|
L:Long-distance
|
WORKING PRINCIPLE INDUCTIVE PROXIMITY SWITCH
The induction surface of capacitance sensor is composed of two coaxial mental electrodes, which from a capacitor and connected on RC oscillation circuit, just like an open capacitor electrode. When connecting to power supply, RC oscillator does not work. When an object is close to capacitor electrode, the capacitor capacity will increase, and the oscillator will vibrate. Through the treatment of behind stage circuit, both signals of stop oscillation and oscillation will be converted to switch signs for checking the existence of object. this distance can be obtained, but to nonmetal object, the action distance is determined by material dielectric constant, the more dielectric constant, the more action distance will be obtained.
CM18 Capacitance proximity switch
OVERALL DIMENSIONS
|
DETECTION DISTANCE
|
|
|
|
0-10mm
|
|||
|
Flush
|
DC
6-36
VDC
AC
90-250
VAC
|
NPN
|
NO
|
CM30-3010NA
|
|||
|
|
DC
|
|
NC
|
CM30-3010NB
|
|||
|
|
10~30
|
|
NO+NC
|
CM30-3010NC
|
|||
|
|
VDC
|
PNP
|
NO
|
CM30-3010PA
|
|||
|
|
|
|
NC
|
CM30-3010PB
|
|||
|
|
|
|
NO+NC
|
CM30-3010PC
|
|||
|
|
90~250
|
SCR
|
NO
|
CM30-2010A
|
|||
|
|
VAC
|
|
NC
|
CM30-2010B
|
|||
|
|
|
|
NO+NC
|
|
|||
|
DETECTION DISTANCE
|
|
|
|
0-15mm
|
|||
|
Non-flush
|
DC
6-36
VDC
AC
90-250 VAC |
NPN
|
NO
|
CM30-3015NA
|
|||
|
|
DC
|
|
NC
|
CM30-3015NB
|
|||
|
|
10~30
|
|
NO+NC
|
CM30-3015NC
|
|||
|
|
VDC
|
PNP
|
NO
|
CM30-3015PA
|
|||
|
|
|
|
NC
|
CM30-3015PB
|
|||
|
|
|
|
NO+NC
|
CM30-3015PC
|
|||
|
|
90~250
|
SCR
|
NO
|
CM30-2015A
|
|||
|
|
VAC
|
|
NC
|
CM30-2015B
|
|||
|
|
|
|
NO+NC
|
|
|||
|
Detectable object
|
|
|
|
Conductor and dielectric body
|
|||
|
Consumption current
|
|
|
|
DC<15mA AC<10mA
|
|||
|
Output current
|
|
|
|
DC:200mA AC:300mA
|
|||
|
Output voltage drop DC/AC
|
|
|
|
DC<3V AC<7V
|
|||
|
DC/AC Response frequency
|
|
|
|
DC:50Hz AC:10Hz
|
|||
|
Shell material
|
|
|
|
ABS Resin , Metal
|
|||
|
Working environment temperature
|
|
|
|
-25℃~+75℃
|
|||
|
Insulation resistance
|
|
|
|
50MΩ
|
|||
|
Protection grade
|
|
|
|
IEC Standard IP54
|
|||
