Quick Details
-
MOQ:
-
1SET
-
SIZE:
-
20FT/40FT Customized
-
Product name:
-
Container Houses Home
-
Color:
-
Customized Color
-
Material:
-
Steel + Sandwich Panel
-
Door:
-
Sandwich Panel Door or customized
-
Certification:
-
ISO9001
-
Usage:
-
Multi-function
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DXH-CONTAINER
-
Delivery time:
-
10-15days
-
MOQ:
-
1SET
-
SIZE:
-
20FT/40FT Customized
-
Product name:
-
Container Houses Home
-
Color:
-
Customized Color
-
Material:
-
Steel + Sandwich Panel
-
Door:
-
Sandwich Panel Door or customized
-
Certification:
-
ISO9001
-
Usage:
-
Multi-function
Product Description

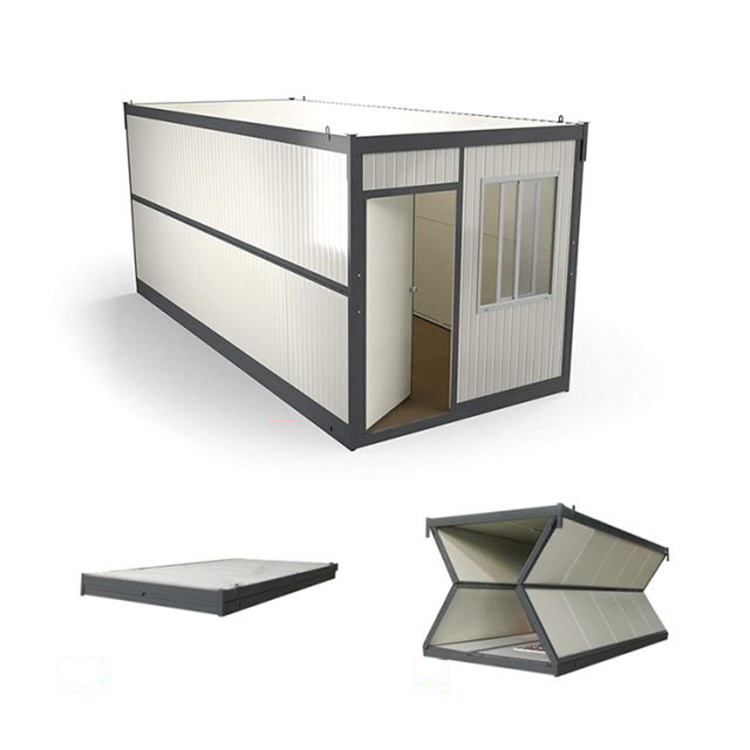

| Foldable Container House | ||
| Name | Detailed Description | Export size specification |
| Exit configuration | Standard container |
outsize:5800mm*2500mm*2450m
inside size:5650mm*2350mm*2230mm folding size:5800mm*2500mm*440mm weight:1.3t |
|
Frame |
Top girder | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm(both sides) |
| Bottom girder | Special shaped steel galvanized concave convex pipe 63mm*160mm*2.0mm(both sides) | |
| Top beam | Galvanized square pipe 50mm*50mm*1.8mm | |
| Front and rear end girder | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5(both sides) | |
| Sidewall frame | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5(both sides) | |
| Bottom crossbeam | Galvanized square steel pipe 40mm*80mm*2.0mm | |
| Cast steel butt joint Corner Fitting | Steel plate(200mm*100mm*15mm) | |
| Folding hinge | Galvanized hinge 85mm*115mm*3mm(Shaft column304stainless steel) | |
| Integral frame protective coating | Cabaret high gloss enamel | |
| Top of container | External roof | 104 color steel tile(0.5mm) |
| Internal ceiling | 831 ceiling tile(0.326mm) | |
| Insulation rock wool | Bulk density 60kg/m³*14.5square | |
| Floor | Grade A fireproof glass magnesium plate | 15mm |
| Wallboard | Heat insulation rock wool color steel composite sandwich panel (side wall) | 0.326mm color steel plate / 50mm / 65kg / m3 rock wool |
| Heat insulation rock wool color steel composite sandwich panel (Front and rear walls) | 0.326mm color steel plate / 50mm / 65kg / m3 rock wool | |
| Window | Aluminum alloy anti-theft integrated window (push-pull Series) | 950mm*1200mm(With screen window) |
| Door | Special anti-theft door for folding container | 860mm*1980mm |
| Roof load | greater or equal to 50kg/m² | |
| Floor load | greater or equal to 150kg/m² | |
| Aisle load | greater or equal to 200kg/m² | |
| Wall side pressure | greater or equal to 80kg/m² | |
| Fire rating Class | A fire protection | |
| Wall deformation coefficient | less than or equal to 300kg/m² | |
| Anti-seismic grade | 10 anti-seismic | |
| Wind resistance level | 11 wind resistance | |
Advantage:
1.Ready for use,without any assemble work.
2.Convenient for moving,transporting,water cleaning.
3.Service life:30 years
4.Good waterproof, sound-insulated,heat preservation,environmental protection.
5.The layout is customized design.
6.International standard can be put on other shipping container.
7.Beautiful appearance,different colors.
2.Convenient for moving,transporting,water cleaning.
3.Service life:30 years
4.Good waterproof, sound-insulated,heat preservation,environmental protection.
5.The layout is customized design.
6.International standard can be put on other shipping container.
7.Beautiful appearance,different colors.
