- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Building, Metal roof , Havc , and others
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
QY1FS-Fa
-
Type:
-
Heat Insulation Materials, Other Heat Insulation Materials
-
Product Name:
-
Heat Resistant Material Insulation Scrim Sheet FSK Vapor Barrier
-
style:
-
thermal insulation material
-
Normal Length:
-
100/200m/300m/customized
-
Normal Width:
-
100/120cm/150cm/customized
-
weight:
-
80-150gsm
-
Norm:
-
120g/㎡
-
Feature:
-
High Temperature Resistance
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Building, Metal roof , Havc , and others
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
QY1FS-Fa
-
Type:
-
Heat Insulation Materials, Other Heat Insulation Materials
-
Product Name:
-
Heat Resistant Material Insulation Scrim Sheet FSK Vapor Barrier
-
style:
-
thermal insulation material
-
Normal Length:
-
100/200m/300m/customized
-
Normal Width:
-
100/120cm/150cm/customized
-
weight:
-
80-150gsm
-
Norm:
-
120g/㎡
-
Feature:
-
High Temperature Resistance

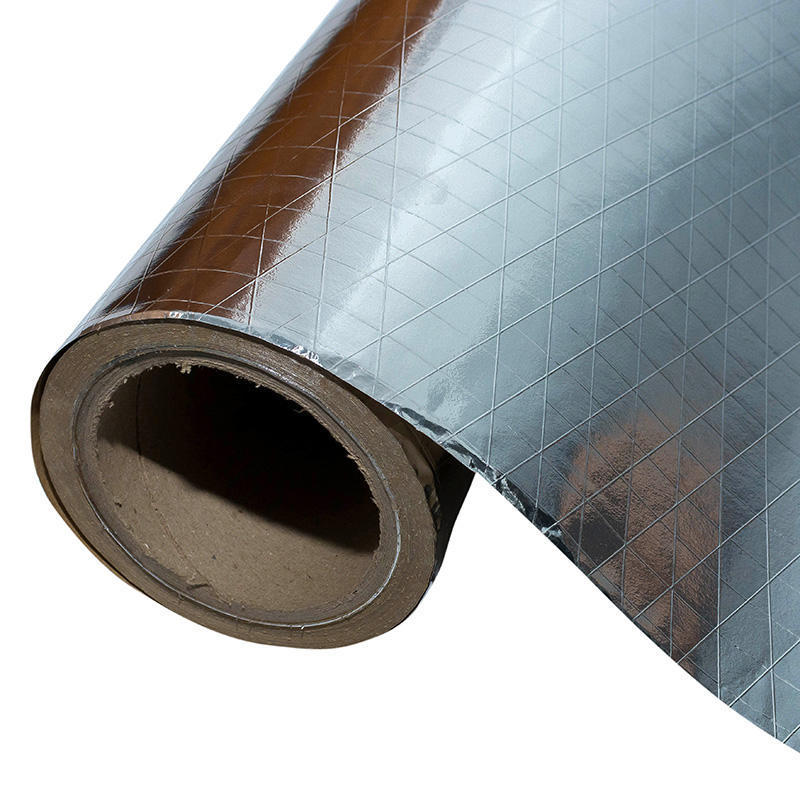

Heat Insulation Materials Thermal Aluminized Scrim Kraft Reinforced MPET paper Heat Reflective Aluminium Foil Scrim Kraft Sheet
Construction:
Aluminum foil+ 2way scrim+kraft paper
Aluminum foil+2 way scrim+kraft paper +Alu foil
Aluminum foil+ 3 way scrim+kraft
Technical parameters:
|
Physical Properties
|
Test Method
|
Value(English)
|
Value(Metric)
|
|
Basis Weight
|
Scale
|
28.6lbs/1000ft2
|
140gsm
|
|
Permeance(WVTR)
|
ASTM E96, Procedure A
|
0.02perm
|
1.15ng/N.s
|
|
Tensile Strength - MD
|
ASTM D828
|
45 lbs/in
|
200N/25mm
|
|
Tensile Strength - XD
|
ASTM D828
|
28.4 lbs/in
|
125N/25mm
|
|
Burst Strength
|
ASTM D774
|
75.4 psi
|
52 N/cm2
|
|
Low Temperature
Resistance |
ASTM D1790
4 hrs @-40 °F(-40 °C) |
No Delamination
|
No Delamination
|
|
High Temperature
Resistance |
ASTM D1790
4 hrs @+240°F(+116°C) |
No Delamination
|
No Delamination
|
|
Emissivity
|
ASTM E408
|
0.03
|
0.03
|
|
Fire Rating
|
UL 723 / ASTM E84
|
Less 25/50 - Passed
|
Less 25/51 - Passed
|
|
Thickness
|
Micrometer
|
0.0058 inch
|
150 micron
|
Application:
1.good sound insulation and absor
2.exellent water vapor resistance
3.single side reflective PET/AL foil
4.for wall,ceiling,roof,floor,factory building
5.ISO9001 certificated
6.GMC exellent supplier
Characteristics:
1.sound,corrosion,light,vapor can be prevented effectively.
2.for keeping warm air duct,sound insulation and absor,moisture-proof floor,etc.3.Eco-friendly,sound-proof,temperature resistant for construction,etc.
4.For construction,OEM is available
