Full automatic slitting machine
Slitting and rewinding the tapes full automaticlly
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lunyou Machinery
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
3120*1600*1700mm
-
Product name:
-
fully automatic adhesive bopp packing tape slitting rewinding machine
-
Slitting Accurancy:
-
±0.1mm
-
Min-Sliting width:
-
20mm
-
Max-unwinding Diameter:
-
800mm
-
Max-slitting Speed:
-
250M/mm
-
Constant Tension:
-
Yes
-
Advantage:
-
fully automatic, high speed
-
Usage:
-
bopp tape, masking tape, cloth duct tape
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
7kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lunyou Machinery
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
3120*1600*1700mm
-
Product name:
-
fully automatic adhesive bopp packing tape slitting rewinding machine
-
Slitting Accurancy:
-
±0.1mm
-
Min-Sliting width:
-
20mm
-
Max-unwinding Diameter:
-
800mm
-
Max-slitting Speed:
-
250M/mm
-
Constant Tension:
-
Yes
-
Advantage:
-
fully automatic, high speed
-
Usage:
-
bopp tape, masking tape, cloth duct tape
-
Marketing Type:
-
Hot Product 2022
Product Description
|
SPECIFICATIONS OF MODEL LY-600L SLITTING MACHINE
|
|
|
|
|||
|
Vaild width
|
|
1300mm/1600mm
|
mm
|
|||
|
Diameter of paper core
|
|
76.2mm(3 inch)
|
mm
|
|||
|
Min slitting width
|
|
20mm
|
|
|||
|
Max unwinding diameter
|
|
800mm
|
mm
|
|||
|
Max rewinding diameter
|
|
150mm
|
mm
|
|||
|
Rewinding speed
|
|
0-250m/min
|
|
|||
|
Voltage
|
|
380V, 50HZ, 3-Phase(changeable according to different countries)
|
|
|||

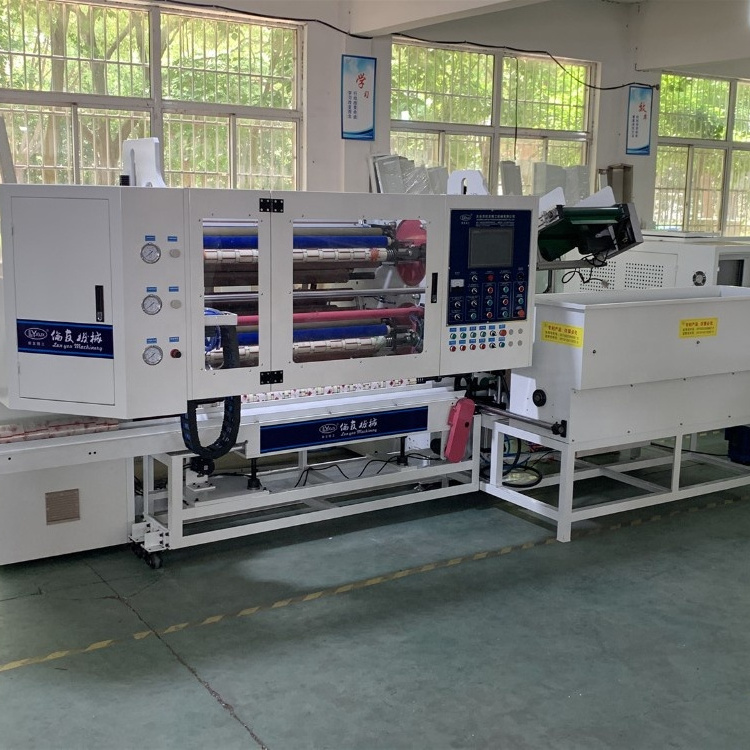

LY-600L Full Automatic Adhesive Tape Slitting Mechine line
*Patent of invention, all rights resevered.
· full automatic model, auto core loading, auto shaft loading, auto tape cutting and smoothing, non-stop labeling
·
suitable for the slitting and rewinding of super clear bopp tape, common bopp tape and masking tape
· machine speed: 0-250m/min
· easy to change the mold
· optional automatic paper core cutting machine, paper core conveyor and packing machine
Automatic core loader
Load the prepaed paper core automaticlly.
Optional: LY-208 4 shaft automatic paper core cutting machine with paper core conveyor
Cutting and loading the paper core automaticlly
Optional: LY-600FX packing machine
Packing finished tapes automaticlly
Detailed Images
Similar Models
Contact
More informaion please contact:
Judy Zhu
Wechat/whatsApp: +8615850298511
Email: tclunyou@aliyun.com
Our Company
WHY CHOOSE LUNYOU?
We have nearly 20 years of experience in manufacture of tape slitting, cutting and rewinding machine. Our machines are aimed at medium and high-end markets. It's based on our experienced design team and high quality imports parts. We also can make the machines for special popurse according to customer's request. High quality and reasonable price is our way to enjoy the popularity in the worldwide markets.
CUSTOMERS & EXHIBITIONS
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1.
Q: Are you a factory or trading company?
A: We are a factory and we have years of experience of manufacturing slitting, rewinding and cutting machines.
2.
Q: Does the machine be able to cut different size of tapes?
A: Yes absolutely, one width, one mold, our machine is easy to change the mold.
3.
Q: Do you make machines according to specifications?
A: Yes, we do design different machines for special purpose.
4.
Q: Do you have the manual book?
A:Yes, and if necessary, our engineers are available to service overseas. And our machines are highly automatical and easy to operate.
5.
Q: How long does it usually take you to make the delivery?
A: As a rule ,we deliver our machine within 1 month, and of cause it will take longer for special orders, but in no case would it take longer than 3 months.
6.
Q: The voltage in our country is different from yours,does the machine can be changed?
A: Yes, we can make the change for customers.
7.
Q: Where is your factory locatesd in , and how can I get there?
A: Our address is No. 228 Fenglin Road, Shuangfeng Town, Taicang City, Jiangsu Province, China. And we are near by Shanghai, you can contact us when you arrive in Shanghai, and we'll pick you up.
8.
Q: How about your warranty?
A: One year, wearing parts not included.
