Double acting hydraulic lift cylinder hydraulic piston cylinder

Double acting hydraulic lift cylinder hydraulic piston cylinder

FOB Reference Price: Get Latest Price

≥1 Sets

US $60

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: BMT-HYDRO

cylinder body material:: ST52 BK+S

Type:: double acting piston type

Piston rod:: C45E QT

Operating Pressure:: 160-300bar

Seal Kits:: Parker,Merkel,Hallite

Painting:: Sandblasting, primer paint, middle paint, finish paint

Available Temperature:: -40℃ to +300℃

Working medium:: Hydraulic Oil

Piston speed:: maximum 1m/s

Mounting style:: Earings, flange, foot mounting, screw thread

Quick Details

Applicable Industries:: Other

Weight (KG):: 2000

Core Components:: cylinder

Place of Origin:: Jiangsu, China

Brand Name:: BMT-HYDRO

cylinder body material:: ST52 BK+S

Type:: double acting piston type

Piston rod:: C45E QT

Operating Pressure:: 160-300bar

Seal Kits:: Parker,Merkel,Hallite

Painting:: Sandblasting, primer paint, middle paint, finish paint

Available Temperature:: -40℃ to +300℃

Working medium:: Hydraulic Oil

Piston speed:: maximum 1m/s

Mounting style:: Earings, flange, foot mounting, screw thread

Product Overview

Betten Hydraulic - 30 years Experienced Hydraulic Cylinder Supplier

Custom Hydraulic Cylinders to FIT YOUR NEEDS

Betten’s double acting hydraulic cylinders could combine reducer union, piston rod, seal kits, Cylinder bore and other body parts with our careful Trundle processing. Each cylinder before sold should be tested by Ultrasonic detector, spectrograph, CMM, metallography, chrome thickness tester to confirm its capacity. As well, Betten’s piston cylinders lead other suppliers by their flexible production schedule and reliable manufacturing technology.

Betten mainly exported to European countries like Germany, Australia, and also Southeast Asia ,Middle America and South American and build cooperation with some world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN,Shanghai Boiler, HTC etc.

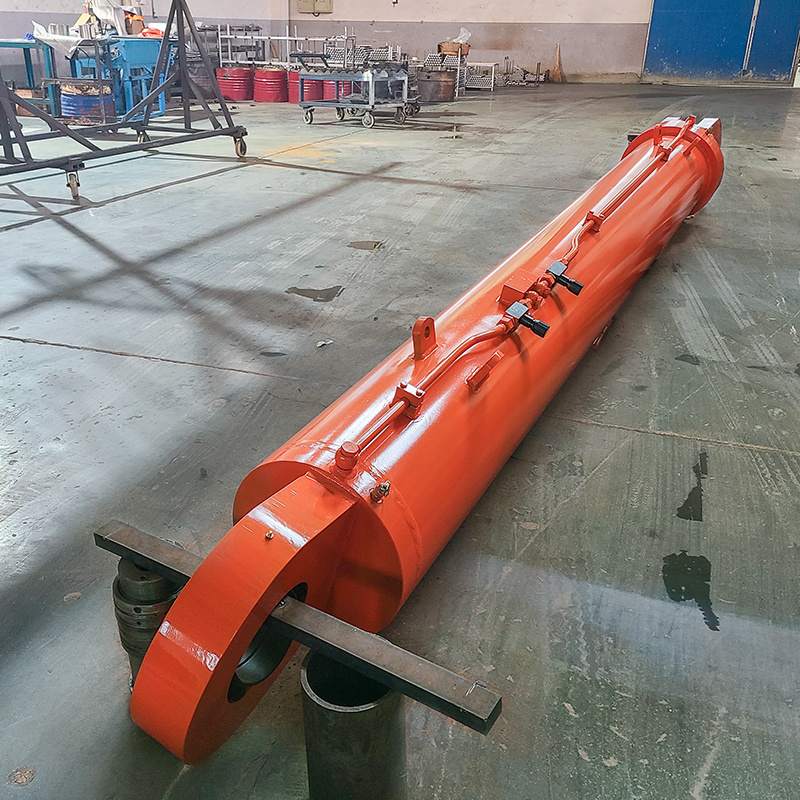

Bore : φ 400mm

Stroke: 3500mm

Operation pressure: 210~250bar

Cylinder tube: ST52.3 BK+S

Rod: C45E QT hard chrome plated 30-40μm

Seal Kits: PARKER/MERKEL

PRODUCT SPECIFICATIONS

Product Type	Double Acting Hydraulic Pistons Cylinders
Stroke	10mm-15000mm
Inside Cylinder Tube Dia.	40 – 1000 mm (1.5 – 40 inch)
Hydraulic cylinder tube material	Carbon steel, Alloy steel, Stainless steel
Piston Rod Dia	:12 – 500 mm (1/2 – 20 inch) Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
Rod Coating	Cr, Ni or Ceramic
Design Pressure	Max 700 bar (10150 PSI)
Weight	Max 60 tons
Valves	SUN (USA),or famous Chinese brand with same quality to PARKER
Seals Type	PARKER (USA), MERKEL (Germany) or NOK (Japan)
Liner material	copper (prolongs the life cycle of cylinder)
Bearings	LONGXI (China) or SKF
Painting	follow with customer requirement or 3-coat marine painting
Certificate	DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS
Application	Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc.

MANUFACTURING TECHNIQUE

Raw Material

One-Piece Forging

≤20MPa ASTM1020/E355J2
20~30MPa ST52/ST52.3 BK+S
≥32MPa GB35/45 FORGING

Raw Material

Cold drawn honed tubes

≤20MPa ASTM1020/E355J2
20~30MPa ST52/ST52.3 BK+S
≥32MPa GB35/45 FORGING

Cylinder Tube Maching

the raw material will choose according to the working condition

≤20MPa ASTM1020/E355J2

20~30MPa ST52/ST52.3 BK+S

≥32MPa GB35/45 FORGING

Piston Rod Maching

Finish Turning

Installation

Tolerance Inspection

Dimension Test

Hardness Test

Ultrasonic Testing

Roughness Testing

Each Betten Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer.

1). Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new
product or wish to make further improvements, we are here to offer our support.

2). Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→
Assembly→Packing→Shipping

3). Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4). Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5). Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6). Certification
Should your products require testing and certification to comply with international standards, we can arrange this with
independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of
your choice.
