Quick Details
-
Panel Efficiency:
-
High Efficiency 182mm
-
Product name:
-

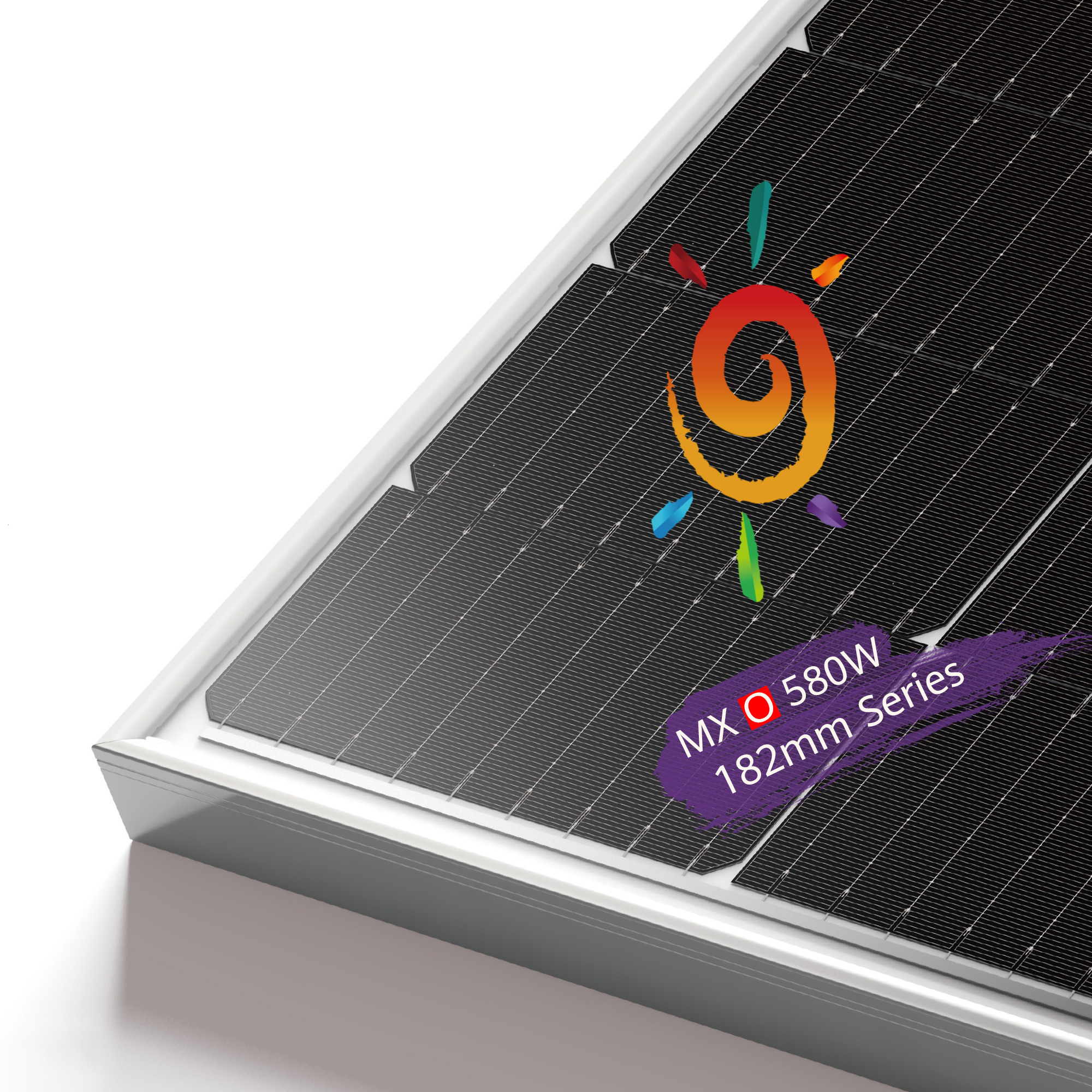

580W Solar Panels
-
Cells:
-
210/182/166/158.75mm
-
Frame:
-
Silver/Black Anodized Aluminium Alloy
-
Junction Box:
-
IP68 rated, 3 diodes
-
TPT back sheet:
-
Black/White Backsheet
-
Cable:
-
4mm² Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Application:
-
Solar Energy System Projects
-
System Voltage:
-
1000V/1500Vdc
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
Quick Details
-
Brand Name:
-
Rosenpv or OEM
-
Model Number:
-
RSM580M-144HC
-
Place of Origin:
-
Anhui, China
-
Panel Efficiency:
-
High Efficiency 182mm
-
Product name:
-
580W Solar Panels
-
Cells:
-
210/182/166/158.75mm
-
Frame:
-
Silver/Black Anodized Aluminium Alloy
-
Junction Box:
-
IP68 rated, 3 diodes
-
TPT back sheet:
-
Black/White Backsheet
-
Cable:
-
4mm² Symmetrical Lengths
-
Glass:
-
3.2mm High Transmission Tempered Glass
-
Application:
-
Solar Energy System Projects
-
System Voltage:
-
1000V/1500Vdc
-
Connector:
-
Compatible MC-4/Male/Female/Fuse
Product Description
Specification
|
Model
|
RSM540-144HC
|
RSM550-144HC
|
RSM560-144HC
|
RSM570-144HC
|
RSM580-144HC
|
||||
|
Rated Maximum Power at STC
|
540W
|
550W
|
560W
|
570W
|
580W
|
||||
|
Maximum Power Voltage(Vmp/V)
|
41.64
|
41.96
|
42.28
|
42.59
|
42.89
|
||||
|
Maximum Power Current(Imp/A)
|
12.97
|
13.11
|
13.25
|
13.39
|
13.53
|
||||
|
Open Circuit Voltage(Voc/V)
|
49.60
|
49.90
|
50.20
|
50.50
|
50.80
|
||||
|
Short Circuit Current(Isc/A)
|
13.86
|
14.00
|
14.14
|
14.28
|
14.42
|
||||
|
Module Efficiency(%)
|
20.9
|
21.3
|
21.7
|
22.1
|
22.4
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000w/m², Cell Temperature 25℃, Air Mass AM1.5
|
|
|
|
|
||||
|
ELECTRICAL DATA(NOCT)
|
|
|
|
|
|
|||||
|
Maximum Power-PMAX (Wp)
|
408W
|
416W
|
424W
|
432W
|
440W
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
38.99
|
39.44
|
39.90
|
40.34
|
40.78
|
|||||
|
Maximum Power Current(Imp/A)
|
10.47
|
10.55
|
10.63
|
10.72
|
10.80
|
|||||
|
Open Circuit Voltage(Voc/V)
|
46.43
|
46.68
|
46.93
|
47.19
|
47.45
|
|||||
|
Short Circuit Current(Isc/A)
|
11.09
|
11.17
|
11.25
|
11.33
|
11.41
|
|||||
|
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
|
|
|
|
|
|
|||||
EVA
High Transmittance EVA,High GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.
Solar Cell
5BB, 6BB, 9BB, 10BB, 12BB Available
158.75cells, 166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
158.75cells, 166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Black/Silver Color Optional
Junction--Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
500N Tensile Strength
Female/Male/Fuse
Label
Waterproof Customized Label
OEM/ODM with your Logo
Professional Silver Color
OEM/ODM with your Logo
Professional Silver Color
Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days
Delivery Details : 5-10 working days
