Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
VDM07
-
Torque:
-
0.16N.m
-
Size:
-
Diameter of motor is 7mm
-
Rated Speed:
-
1800/3200r/min
-
Rated Current:
-
4.2/2.1/1.05/8.4/4.2/2.1A
-
Brush life:
-
2000H
-
Insulation Class:
-
B
-
Voltage:
-
12/24/90V
-
Output Power:
-
30/60W
-
Package:
-
Carton
-
Usage:
-
Car,boat,fan,home appliance
Quick Details
-
Speed(RPM):
-
1800/3200r/min
-
Continuous Current(A):
-
4.2/2.1/1.05/8.4/4.2/2.1A
-
Efficiency:
-
Good
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
VDM07
-
Torque:
-
0.16N.m
-
Size:
-
Diameter of motor is 7mm
-
Rated Speed:
-
1800/3200r/min
-
Rated Current:
-
4.2/2.1/1.05/8.4/4.2/2.1A
-
Brush life:
-
2000H
-
Insulation Class:
-
B
-
Voltage:
-
12/24/90V
-
Output Power:
-
30/60W
-
Package:
-
Carton
-
Usage:
-
Car,boat,fan,home appliance

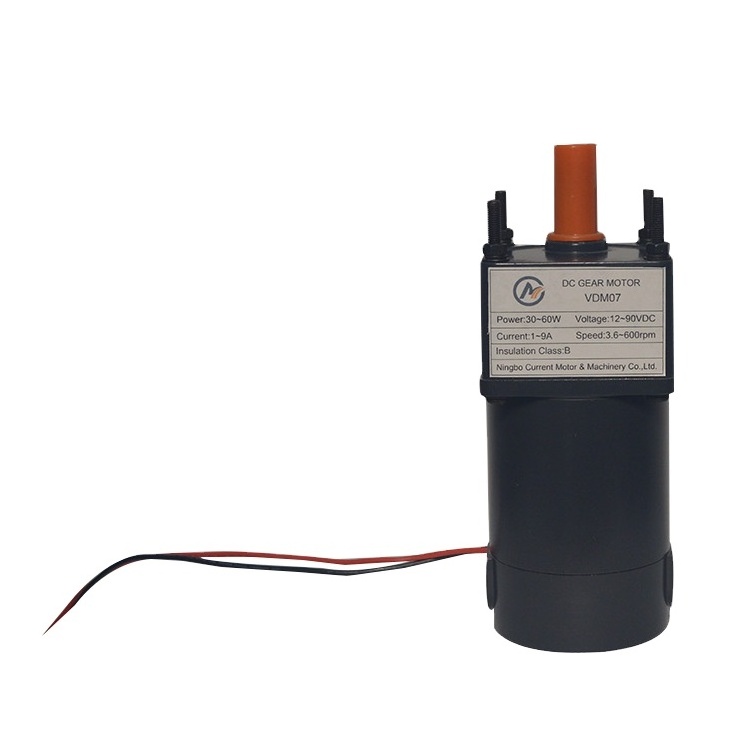

Product Description
VDM series is PM DC Gear motor. Diameter of motor is from 60mm to 90mm. DC motors can be designed as 1800rpm and 3600rpm. Gear ratio range is from 1:3 to 1:500. If 90degree output is required, we can choose NMRV series worm gearbox to assembled to dc motor.
Product Data
Data Sheet
| Specifications of VDM07 | ||||||
| Model | Voltage | Power | Load Parameters | Brush Life | ||
| Speed | Torque | Current | ||||
| V | W | RPM | KG.CM | A | Hour | |
|
VDM-07SP VDM-07SGN(U) |
12 | 30 | 1800 | 1.62 | 4.2 | 2000 |
| 24 | 30 | 1800 | 1.62 | 2.1 | 2000 | |
| 90 | 30 | 1800 | 1.62 | 1.05 | 2000 | |
|
VDM-07SP VDM-07SGN(U) |
12 | 60 | 3200 | 1.83 | 8.4 | 2000 |
| 24 | 60 | 3200 | 1.83 | 4.2 | 2000 | |
| 90 | 60 | 3200 | 1.83 | 2.1 | 2000 | |
Torque Table
| Model | Speed | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | |
| VDM-07 SGN | rpm | Output Speed | rpm | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 |
| 1800 | Rated Torque | N.M | 0.39 | 0.46 | 0.64 | 0.77 | 0.96 | 1.16 | 1.29 | 1.61 | 1.93 | |
| Kg.cm | 3.94 | 4.72 | 6.56 | 7.87 | 9.84 | 11.8 | 13.1 | 16.4 | 19.7 | |||
| VDM-07 SGN | rpm | Output Speed | rpm | 1067 | 888 | 640 | 533 | 426 | 355 | 320 | 256 | 213 |
| 3200 | Rated Torque | N.M | 0.44 | 0.52 | 0.73 | 0.87 | 1.09 | 1.31 | 1.45 | 1.82 | 2.18 | |
| Kg.cm | 4.45 | 5.34 | 7.41 | 8.89 | 11.1 | 13.3 | 14.8 | 18.5 | 22.2 |
| Model | Speed | Gear Ratio | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | |
| VDM-07 SGN | rpm | Output Speed | rpm | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 |
| 1800 | Rated Torque | N.M | 2.31 | 2.57 | 2.9 | 3.48 | 4.17 | 4.64 | 5.79 | 6.95 | 7.84 | 7.84 | |
| Kg.cm | 23.6 | 26.2 | 29.6 | 35.5 | 42.6 | 47.3 | 59.1 | 71 | 80 | 80 | |||
| VDM-07 SGN | rpm | Output Speed | rpm | 178 | 160 | 128 | 106 | 88.8 | 80 | 64 | 53 | 42.6 | 35.5 |
| 3200 | Rated Torque | N.M | 2.61 | 2.9 | 3.27 | 3.93 | 4.71 | 5.24 | 6.55 | 7.84 | 7.84 | 7.84 | |
| Kg.cm | 26.7 | 29.6 | 33.4 | 40.1 | 48.1 | 53.4 | 66.8 | 80 | 80 | 80 |
| Model | Speed | Gear Ratio | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 360 | 400 | 500 | |
| VDM-07 SGN | rpm | Output Speed | rpm | 18 | 15 | 12 | 10 | 9 | 7.2 | 6 | 5 | 4.5 | 3.6 |
| 1800 | Rated Torque | N.M | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | |
| Kg.cm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |||
| VDM-07 SGN | rpm | Output Speed | rpm | 32 | 26.6 | 21.3 | 17.8 | 16 | 12.8 | 10.6 | 8.9 | 8 | 6.4 |
| 3200 | Rated Torque | N.M | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | 7.84 | |
| Kg.cm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Product Size
Our Services
| Type | VDM07 |
| brush life | 1000hours with load |
| Grease | no grease leakage after long time working |
| Insulation Class | Class B |
| M.O.Q | Our Minimum quantity is 1pc |
| OEM Service | Yes! We offer OEM service. |
