Quick Details
-
Model Number:
-

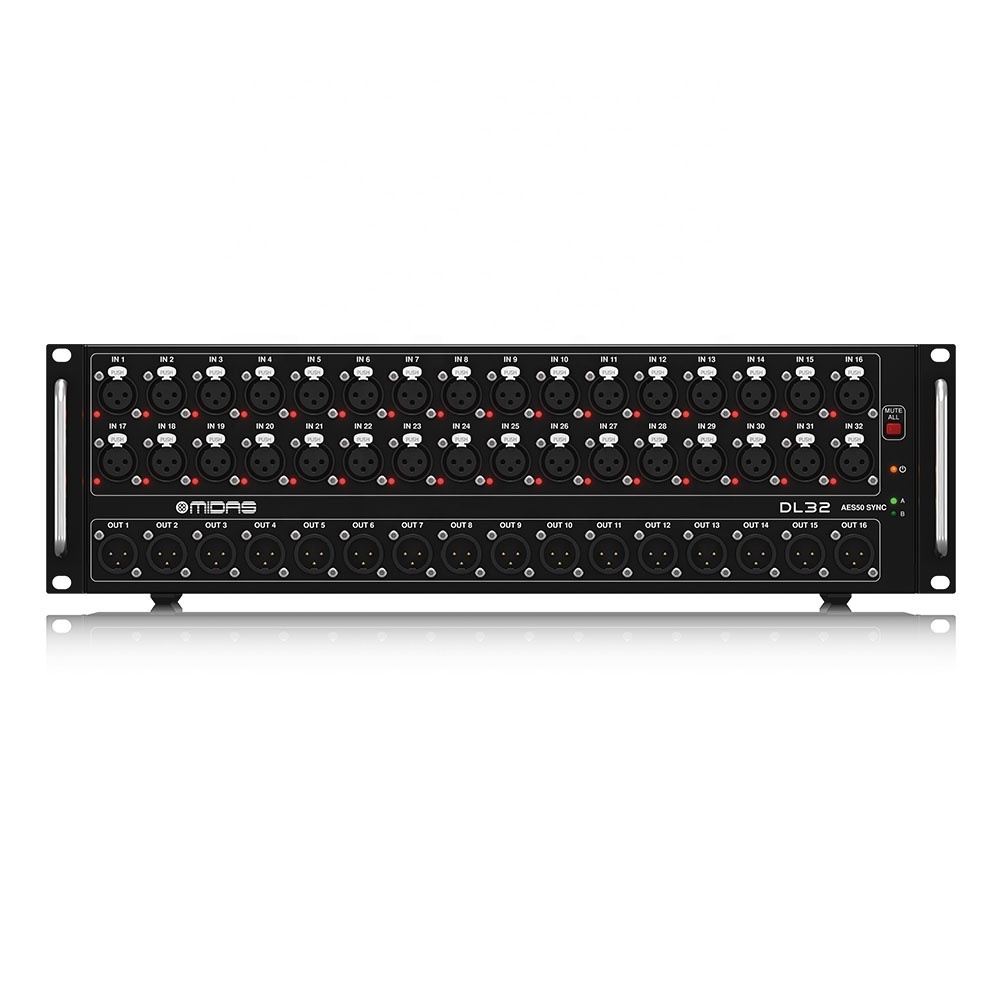

DL32
-
Dimension:
-
483*242*138 mm
-
Power Supply Mode:
-
Other
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
N/A
-
Connection Type:
-
Other
-
Format:
-
N/A
-
Net Weight:
-
5.7kg
-
Color:
-
Black
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
midas
-
Model Number:
-
DL32
-
Dimension:
-
483*242*138 mm
-
Power Supply Mode:
-
Other
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
N/A
-
Connection Type:
-
Other
-
Format:
-
N/A
-
Net Weight:
-
5.7kg
-
Color:
-
Black
|
Processing
|
|
|
|
A/D-D/A conversion(Cirrus Logic A/D CS5368, D/A CS4398)
|
24-bit @ 44.1 / 48 kHz,114 dB dynamic range (A-weighted)
|
|
|
Networked I/O latency(stagebox in>console processing*>stagebox out)
|
1.1ms
|
|
|
Connectors
|
|
|
|
Programmable Midas mic preamps, balanced XLR
|
32
|
|
|
Line outputs, balanced XLR
|
16
|
|
|
AES/EBU outputs (AES3 XLR)
|
2
|
|
|
AES50 ports, SuperMAC networking, NEUTRIK etherCON
|
2
|
|
|
ULTRANET output, RJ45 (no power supplied)
|
1
|
|
|
MIDI inputs / outputs
|
1/1
|
|
|
ADAT outputs, Toslink
|
2
|
|
|
USB port for system updates, type B
|
1
|
|
|
Power
|
|
|
|
Switch-mode autorange power supply
|
100-240V(50/60 Hz)
|
|
|
Power consumption
|
55 W
|
|
|
Physical
|
|
|
|
Standard operating temperature
|
5°C-40°C
|
|
|
Dimensions
|
483*242*138 mm
|
|
|
Weight
|
5.7 kg
|
|
1. Can we have our logo or company information on your products or packages?
Sure.We accept OEM/ODM orders.Your logo can be shown on the products by printing,embossing etc.Just let us know your requirements.
2. When will you ship out the goods normally?
Normally we ship out goods within 3 days for stock goods.If OEM/ODM order,it depends the quantity. Please check with us you can get the exact schedule.
3. How to process the order?
(1)Contact us(send e-mail or chat online)and tell your inquiries.
(2)We answer you online or send you the price list and our suggestions by e-mail.
(3)We will make a Pl after you confirmed the quotation.
(4)You make the payment after check the details.
(5)We arrange the shipment and advise the tracking number promptly.
4.How to make the payment?
Pay by credit card/TT by TA(Trade Assurance),T/T,Western Union,MoneyGram,Paypal,online transaction at your convenience.
More questions,please don't hesitate to contact us.
