iptv qam modulator with LCN EPG for cable tv digital headend option 16/32 QAM output

iptv qam modulator with LCN EPG for cable tv digital headend option 16/32 QAM output

FOB Reference Price: Get Latest Price

≥2 Sets

US $1699

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

inputs:: 256 IP input, 1000M Ethernet Port

Output:: 8*ATSC RF output

Protocol:: TS over UDP/RTP/RTSP, unicast and multicast, IGMP V2/V3

Application:: CATV or DTV broadcasting system

keyword1:: modulator atsc

keyword2:: atsc modulator

Product name:: iptv qam modulator

Certification:: CE

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Dibsys

Model Number:: IPM6000C

inputs:: 256 IP input, 1000M Ethernet Port

Output:: 8*ATSC RF output

Protocol:: TS over UDP/RTP/RTSP, unicast and multicast, IGMP V2/V3

Application:: CATV or DTV broadcasting system

keyword1:: modulator atsc

keyword2:: atsc modulator

Product name:: iptv qam modulator

Certification:: CE

March Promotion

Product Description

iptv qam modulator with LCN EPG for cable tv digital headend option 16/32 QAM output

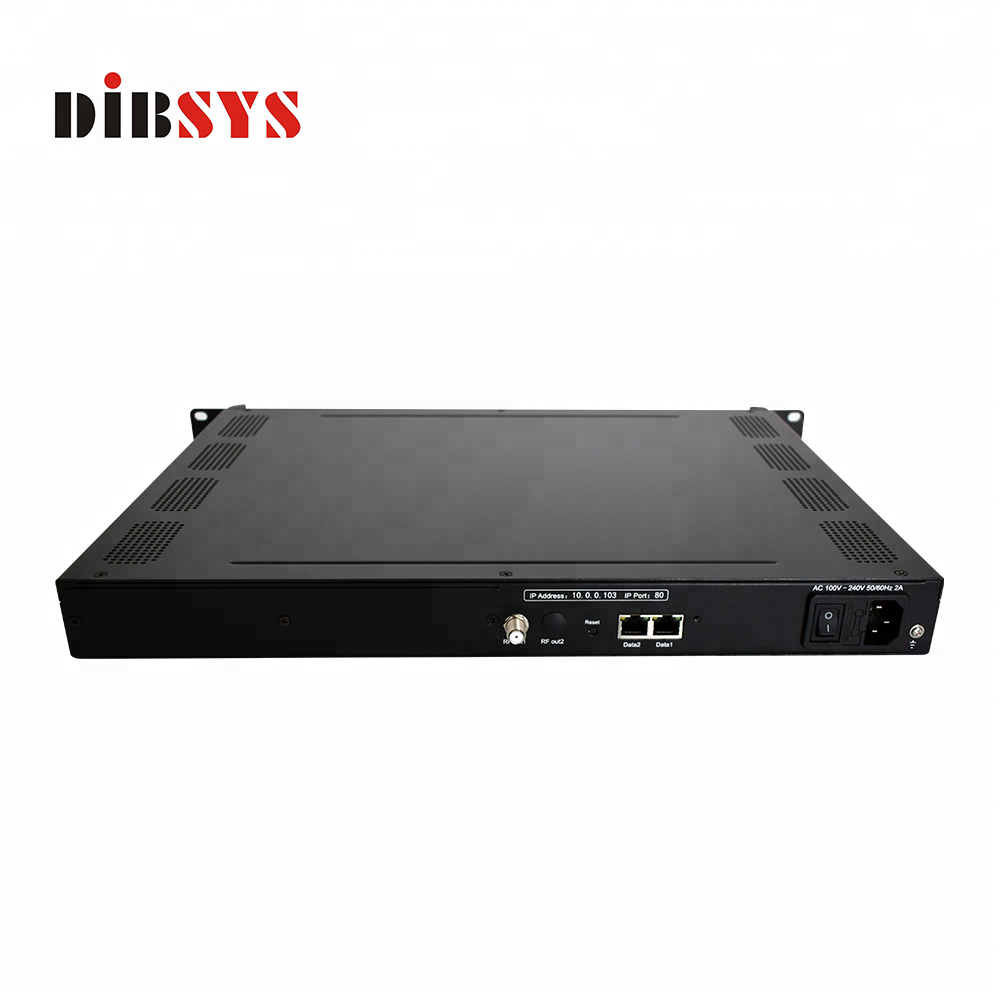

IPM6000 IP to RF Gateway and Modulator is an ideal solution for environments where you have a large number of displays over almost any distance such as Small and Medium Scale of Digital TV broadcasting System, Hotel, stadiums, Campus, entertainment facilities, Education Markets in limited budget. Designed especially for high channel density Distribution Video Engineering project where rapid deployment, compatibility IP source inputs and Multi-Modulated Carrier RF outputs Simultaneously as like Brazil, Japan ISDB-T or United States, Korea ATSC or Europe/Asia/Africa DVB-T and DVB-C and DTMB standard.

IPM6000 Equipped with two IP In/Out data ports reception or streaming of MPEG compliant transport streams over UDP/RTP, each port operates independently and can be configured as either IP in and IP out supporting full 840 Mbit/s TS data rate and up to 1024 MPEG services. The full content of an input port can be mapped transparently and Multiplex to an output modulated Carrier Channel with the option to perform PID filtering or service filtering. The module can be provided with either RJ45 connectors or SFP connectors on the two data ports.

Features

●Selectable RJ45 or SFP interfaces port of 2 GbE IP inputs and modulated carriers RF outputs of ISDB-Tb, DVB-T, ATSC, DTMB ,DVB-C modulation per 1RU Chassis

●Up to 1024 SPTS or MPTS Inputs over GbE Port

●Multi-Channel No-adjacent Carrier RF output as mirror of IP out after Multiplexing or Scrambling

●PID Filtering, Remapping and Passthrough Capabilities with User-Defined PID Value and any Index of In/Out TS

●EPG EIT Table passthrough

●LCN (Logical Channel Number) support

●VCT(Virtual Channel Table) Insertion for ATSC and DVB-C

●Support NIT Table Insertion from Web, PSI/SI Editor and IP source inputs

●Multiplexing and transparent pass-through of two operating modes for each modulated carrier output

●TS Re-multiplexers with PSI/SI regeneration,Editing & inserting and PID processing

●PCR correction to accurately correct several PCR of the input data

●High density, high quality, high performance, high flexibility

●Excellent RF performance, Gain Level: -20 - +10dBm; Gain offset:10dB; BW:50-960Mhz; MER ≥ 40dB

●Max.Level RF out much higher than the normal standard output level 0dBm, it will reduce the number of amplifier during the long distance transmission of the project. Increase reliability and cut the cost

●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

●Easy-to-Use System Management via Web

●Diagnostics report, log printing of Kernal and System information

●Low Cost per Modulated channel - Breakthrough Price !

Main Application

●Distribute IP source to All TVs Over Existing TV Coax

●Advertising, monitoring, training and educating

●Upgrade all your analog Head-ends to digital TV Solution

●Enterprise, Hotel, campus, hospital, Public Place

●Works with Digital TV transmitter in wireless TV broadcasting

●Low cost Digital TV distribution

●DTMB project in Southeast Asian countries

Specifications

IP Interfaces
Types	Two independent Gigabit Ethernet 100/1000Base-T auto-sensing
Connector	Each providing 1000Base-T (twisted pair, RJ-45)or SFP cages
IP Encapsulation	MPEG-TS over UDP/RTP IP
I/O Speed (1Gbe ports)	840 Mbps per port
IP Input	Addressing & Protocols	Unicast, Multicast(IGMP V2/V3)
		MPEG Format	188/204 Bytes per TS packet
		Maxinumber of services	1024 IP inputs (for DVB-C, DVB-T) 192 IP inputs (for ISDB-T)
		Maxinumber of services		256 IP inputs (for ATSC)
		Transport stream	Reception of MPTS and SPTS
IP Output	Configuration	Configurable mirroring per Carrier RF channel
		TS out	GbE1 or GbE2 Port
		Packet Length	1-7
		MPEG Format	188 Bytes per TS packet
		Null Packet Processing	Filtering & Insertion

Multiplexing
Maximum PID Remapping	180 input per channel
Max.Programs	Up to 512 programs to multiplex
Max.Programs		64 service id per one MPTS In/Output
PID remapping by automatically and manually
PSI Insert	PAT, CAT, PMT extraction and generation
SI Insert	SDI, NIT, TOT, BAT, TDT generation
PSIP Insert	VCT (Only for DVB-C, ATSC)
IPTV Sync	Setting Sync period (Only for ISDB-T)
NIT Insert	Web, PSI/SI Editor, Any TS inputs
Operating modes	multiplexing and transparent pass-through
PID Processing	CA Filter, PID Remap, PID passthrough
Program Information	Service Name, Program number LCN(Logic Channel Number)
		Service Type,Service Provider
		PMT Descriptor Tag, PMT Descriptor Data
		PMT, PCR, Video, Audio PID
PCR accurate adjusting	PCR Speed BW, PCR State BW
Source Select	Scrambled TS or Multiplexed TS

Scrambling (Only for DVB-C/DTMB)
Simul-Crypt CAS number	4
Scrambling algorithm	DVB-CSA
Table update	CAT/PMT
ECMG interface	TCP
EMMG interface	TCP/UDP
EMM bandwidth	0~3Mbps/TS
Scramble Standard	ETR289, ETSI 101 197, ETSI 103 197

General RF Modulation
Connector Type	1×F type Female, 75Ω
MER	≥ 40dB
Output Return Loss	14 dB
RF frequency	50~960MHz, 1KHz step
Output Level	-20~+10dbm (for all carriers), Gain Offset 0-10dB
Modulated Carrier Enable	On/Off
Shoulder Attenuation	55dBc (typical.)
Spectrum Flatness	4dB over full output frequency range
Configure Mode	All Configuration or Each Modulated Carrier
Max.BandWidth	192Mhz, 384Mhz(Only for 32 Carrier DVB-C QAM)

QAM Modulating
Modulation Standard	DVB-C EN300429
Num of QAM Channels	16 or 32 Non-adjacent Carrier
QAM Encoding	ITU-T J.83 Annex A (DVB), Annex B, Annex C
Symbol Rate	5.0~7.0Msps, 1Khz stepping
QAM Constellations	16/32/64/128/256QAM(Annex A) 64/256QAM(Annex B, Annex C)

DVB-T Modulating
Modulation Standard	EN300744
Num of Cofdm Channels	8 Non-adjacent Carrier
FFT mode	2K, 4K, 8K
Bandwidth	6Mhz, 7Mhz, 8Mhz
Constellation	QPSK, 16-QAM, 64-QAM
Guard Interval	1/4, 1/8, 1/16, 1/32
FEC Code	1/2, 2/3, 3/4, 5/6, 7/8

ATSC Modulating
Modulation Standard	ATSC A/53
Num of 8vsb Channels	8 Non-adjacent Carrier
Constellation	8VSB
Bandwidth	6MHz
FEC	RS(208 188)+Trellis

ISDB-Tb Modulating
Modulation Standard	ARIB STD-B31
Num of Carrier Channels	6 Non-adjacent Carrier
Bandwidth	6M
Constellation	QPSK, 16QAM, 64QAM
Guard Interval	1/32, 1/16, 1/8, 1/4
Transmission Mode	2K, 4K, 8K
Code rate	1/2, 2/3, 3/4, 5/6, 7/8

DTMB Modulating
Modulation Standard	GB20600-2006
Num of Carrier Channels	8 Non-adjacent Carrier
Constellations	4, 16, 32, 64QAM
RF Range	50~900MHz, 1kHz stepping
Output Level	-20dBm~10dBm, 0.5dB

System function
Management Port	Web-GUI, RJ45,100M
Configuration	Save/Restore/Facture Set/Backup/Load Setting
		English language
		Reset Button

Environment
Dimensions(W×L×H)	420mm440mm44.5mm
weight	3.5kg
Temperature	0~45℃(Operation); -20~80℃ (Storage)
Power Voltage	100 to 120/200 to 240V AC ±10%; 50/60Hz
Power Consumption	20 W
