Quick Details
-
Brand Name:
-
Lenser Group
-
Model Number:
-
Q235/Q345/SGCC/DX51D
-
Width:
-
600mm-1250mm, 600-1250mm
-
Length:
-
1.8- 5m or as sustomers' Request, 1.8- 5m or as customers' request
-
Product Name:
-
Lenser Group Galvanized Corrugated Roof Sheet
-
Color:
-
Customers Samples Color
-
Material:
-
SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
-
Spangle:
-
Big,small,zero spangle
-
Certificate:
-
SGS
Quick Details
-
Grade:
-
SGCC/CGCC/TDC51DZM, Q235/Q345/SGCC/Dx51D
-
Tolerance:
-
±1%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lenser Group
-
Model Number:
-
Q235/Q345/SGCC/DX51D
-
Width:
-
600mm-1250mm, 600-1250mm
-
Length:
-
1.8- 5m or as sustomers' Request, 1.8- 5m or as customers' request
-
Product Name:
-
Lenser Group Galvanized Corrugated Roof Sheet
-
Color:
-
Customers Samples Color
-
Material:
-
SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
-
Spangle:
-
Big,small,zero spangle
-
Certificate:
-
SGS

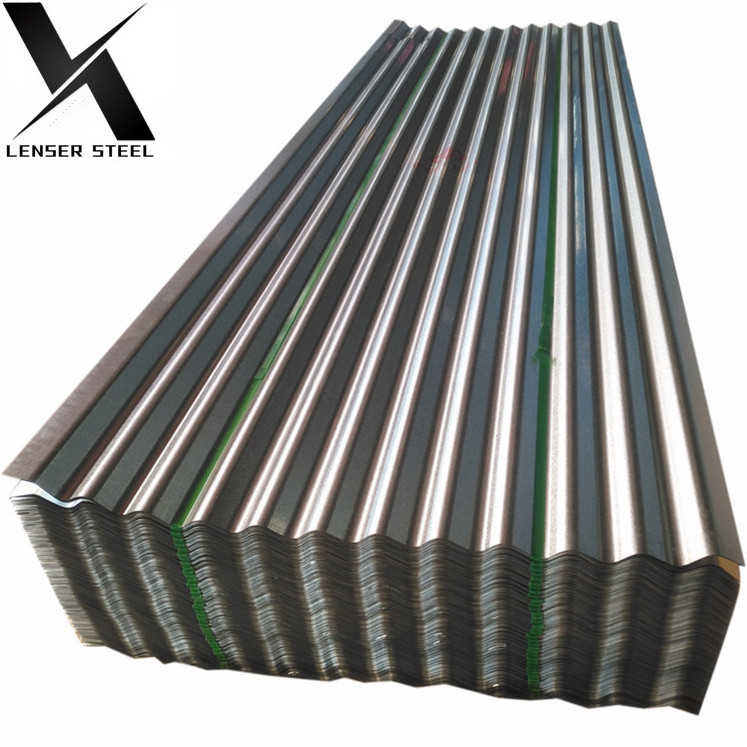

galvanized sheet metal roofing aluzinc steel roof sheet price
Product Description
| Corrugated steel roofing sheet | |
| Material | SGCC,SGCH,JIS G3302,DX51D,DX52D,DX53D |
| Thickness | 0.10 -1mm |
| Width | 600-1100 mm |
| Length | 2-5 meters |
| Tolerance | Thickness: +/-0.02mm |
| Width:+/-2mm | |
| Color coating | Zinc Coating:30g/m2-275g/m2 |
| Color Coating:Top:15-25µm/Back:5-8µm | |
| Surface treatment | unoil,dry,chromate passivated,non-chromate passivated |
| Certification | ISO 9001-2008,SGS,CE,BV |
| Technique | Cold rolled—>hot dipped galvanizing—>Color Coated—>corrugated |
| Weight of each package | 3 mt/As required |
| Depth of corrugated | from 15mm to 18mm |
| Pitch | from 75mm to 78mm |
| Colors | refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red. |
| Corrugated Sheet Raw Materials | Galvanized steel, Aluzinc Steel,Aluzinc Pre-painted sheet and Aluminium sheet. |
| Gloss | The gloss can changeable by Customers' Request.we can also do some High gloss. |
| Paint type | PE or PVDF |
| Standard | GB/T12754-2006;ASTM A 755;EN 10169;JIS G3312;AISI;BS;DIN |
| Grade | CGCC/SGCC/SGCH/SPCC |
| Yield strength | 550MPA/As required |
| Tensile strength | 600MPA/As required |
| Hardness | Full hard/soft/As required |
| Application | various roofs or walls referring to the large size factory buildings,storages,exhibition halls,gymnasiums etc. |
Packaging & Shipping
Packaging: In bundle with steel strip or packed in wooden pallets or as customers' requirement.
Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
