- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM48106
-
Battery Size:
-
48106
-
Place of Origin:
-
Anhui, China
-
Weight:
-
25+48.5*N
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Electric Energy:
-
5088 Wh
-
Product name:
-

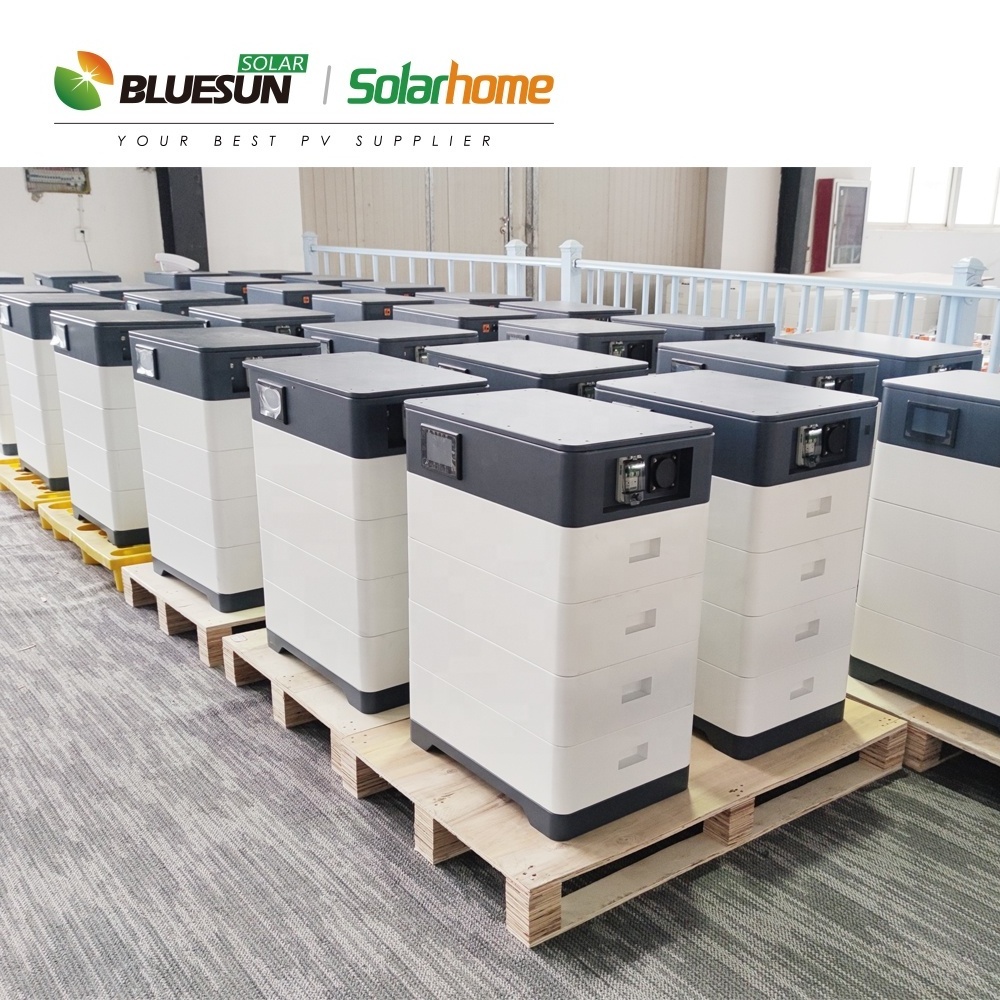

Stacked 48v Lithium Ion Battery
-
Dimension:
-
600*400*200mm (3U)w
-
Battery Type:
-
Lifepo4/lithium Battery
-
Warranty:
-
10 Years
-
Nominal Capacity (KWH):
-
5.427*N
-
Usable Capacity (KWH):
-
4.884*N
-
Battery System Discharge Current (Max):
-
100
-
Peak Charge/Discharge Current(A):
-
120(2S)
-
Certi cation:
-
CE/IEC/UL/UN38.3/MSDS
-
Cycle Life:
-
>6000
Quick Details
-
Storage Type:
-
Keep Away From Fire
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Solar Energy Storage Systems
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM48106
-
Battery Size:
-
48106
-
Place of Origin:
-
Anhui, China
-
Weight:
-
25+48.5*N
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Electric Energy:
-
5088 Wh
-
Product name:
-
Stacked 48v Lithium Ion Battery
-
Dimension:
-
600*400*200mm (3U)w
-
Battery Type:
-
Lifepo4/lithium Battery
-
Warranty:
-
10 Years
-
Nominal Capacity (KWH):
-
5.427*N
-
Usable Capacity (KWH):
-
4.884*N
-
Battery System Discharge Current (Max):
-
100
-
Peak Charge/Discharge Current(A):
-
120(2S)
-
Certi cation:
-
CE/IEC/UL/UN38.3/MSDS
-
Cycle Life:
-
>6000
Product Description
Product Paramenters
|
BASIC PARAMETERS
|
BSM48106HP
|
|
|
Nominal Voltage (V)
|
51.2*N
[2]
|
|
|
Nominal Capacity (kWH)
|
5.427*N
|
|
|
Usable Capacity (kWH)
|
4.884*N
|
|
|
Charge Voltage (V)
|
58.4*N
|
|
|
Discharge Voltage
|
40*N
|
|
|
Battery System DischargeCurrent (Standard)
|
50
|
|
|
Battery System DischargeCurrent (Max)
|
100
|
|
|
Peak Charge/Discharge Current(A)
|
120(2S)
|
|
|
Communicaiton
|
RS485/RS232/CAN
|
|
|
Working Temperature
|
0°C~50°C Charge -10C ~50C Disharge
|
|
|
Shelf Temperature
|
-20°C~60°C
|
|
|
Certification
|
CE/IEC/UL/UN38.3/MSDS
|
|
|
Design Life
|
10 years+
|
|
|
Size(mm)
|
600*400*(167+350N)
|
|
|
Weight(kGS)
|
25+48.5*N
|
|
|
Cycle Life
[1]
|
>6000
|
|
|
[1]
Test conditions:0.2C Charging/Discharging,@25C, 80%Dod
[2] "N" is the battery moudle quantity, N ≤ 8 |
|
|
|
|
||
Matching inverter
High compatibility BMS, seamless communication with energy storage inverter
