Quick Details
-
Size:
-
5000*2300mm, Customized
-
Product Name:
-
Factory Cargo Heavy Towing Industrial Utility Flatbed Truck Trailer
-
Color:
-
Customized
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Application:
-
Industrial Filed
-
Certificates:
-
CE ISO
-
Warranty:
-
12 Months
-
Feature:
-
Easy Operation
-
Tires quantity:
-
4,8,12
Quick Details
-
Max Payload:
-
300 ton
-
Brand Name:
-
Perfect
-
Place of Origin:
-
Henan, China
-
Size:
-
5000*2300mm, Customized
-
Product Name:
-
Factory Cargo Heavy Towing Industrial Utility Flatbed Truck Trailer
-
Color:
-
Customized
-
Material:
-
Q235
-
Load capacity:
-
1-300T
-
Application:
-
Industrial Filed
-
Certificates:
-
CE ISO
-
Warranty:
-
12 Months
-
Feature:
-
Easy Operation
-
Tires quantity:
-
4,8,12

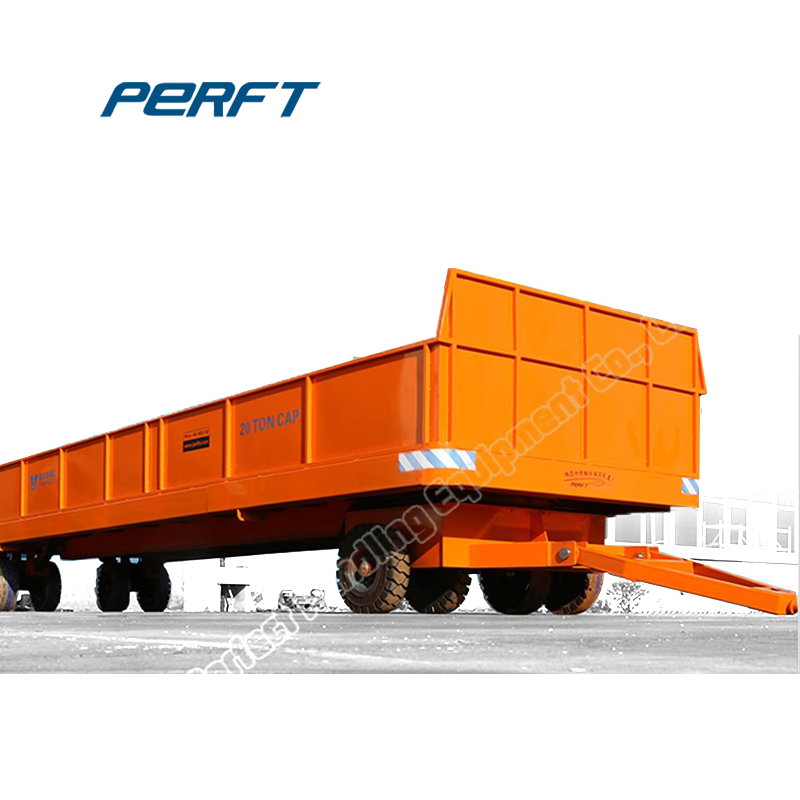

China supply Factory Cargo Heavy Duty Towing Industrial Utility Flatbed Truck Trailer
| Model | BWT-2t | BWT-5t | BWT-10t | BWT-20t | BWT-30t | BWT-45t | BWT-60t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000*1500 | 2500*1500 | 3000*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
|
Height (mm) |
500 | 600 | 700 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Feature:
1. Traction connecting bolt is equipped with chain connection to prevent bolt loss.
2. The trailer is equipped with lifting hooks and lifting rings.
3. All the rods are made to order, which improves the turning accuracy and has beautiful appearance.
4. Trailer equipped with uneven road surface adjustment device.
5. The height of the drawbar can be automatically adjusted or fixed to any height.
6. Trailer steering is a traction rod steering, which drives all wheels to steer, reduces the turning radius and solves the problem of turning in small space.
7. The tractor table steel plate adopts patterned steel plate, which increases friction force and effectively solves the problem of goods sliding off.
8. All traction trailer wheels are sealed, and material handling is not limited by rain and snow road surface and water surface.
9. The cart is welded with Q245 steel plates, all of which are designed for excessive arc angles and grinding of edges and corners to avoid injury to operators.
Application:
The transfer trailer is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The transfer trailer has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more transfer trailer could be towed by one tractor. It can running on rails and cement floor. The transfer trailer is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor. The transfer trailer is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.
Customized:
The load capacity, table size, color of the Pallet transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
lift and aerial work platform all the time. We have gain a lot of experience in designing and manufacturing through unremitting exploration. The company has passed ISO9001 quality management system certification and all products have CE certification. Our products enjoy great popularity in Europe,Southeast Asia, Mid-Asia, Africa and South America.
Communicate directly at any reply to the message within 12 hours.
Personalized service and customized solutions.
Customer visit with warm reception
Flexible payment methods
After-sale
12 months warranty for the whole machine.
Technical support by phone ,emai or WhatsApp/Skype around the clock.
Friendly English version manual and operation video.
Engineer available to service machinery overseas.
Within warrantly time ,support you repair technology or replace relevant parts.
After the warrantly time ,absolute discounted price for replcaement parts.
If you are interested in our prodcut please feel free to contact us.
