Quick Details
-
Brand Name:
-
SM
-
Warranty:
-
1 years
-
Product Name:
-

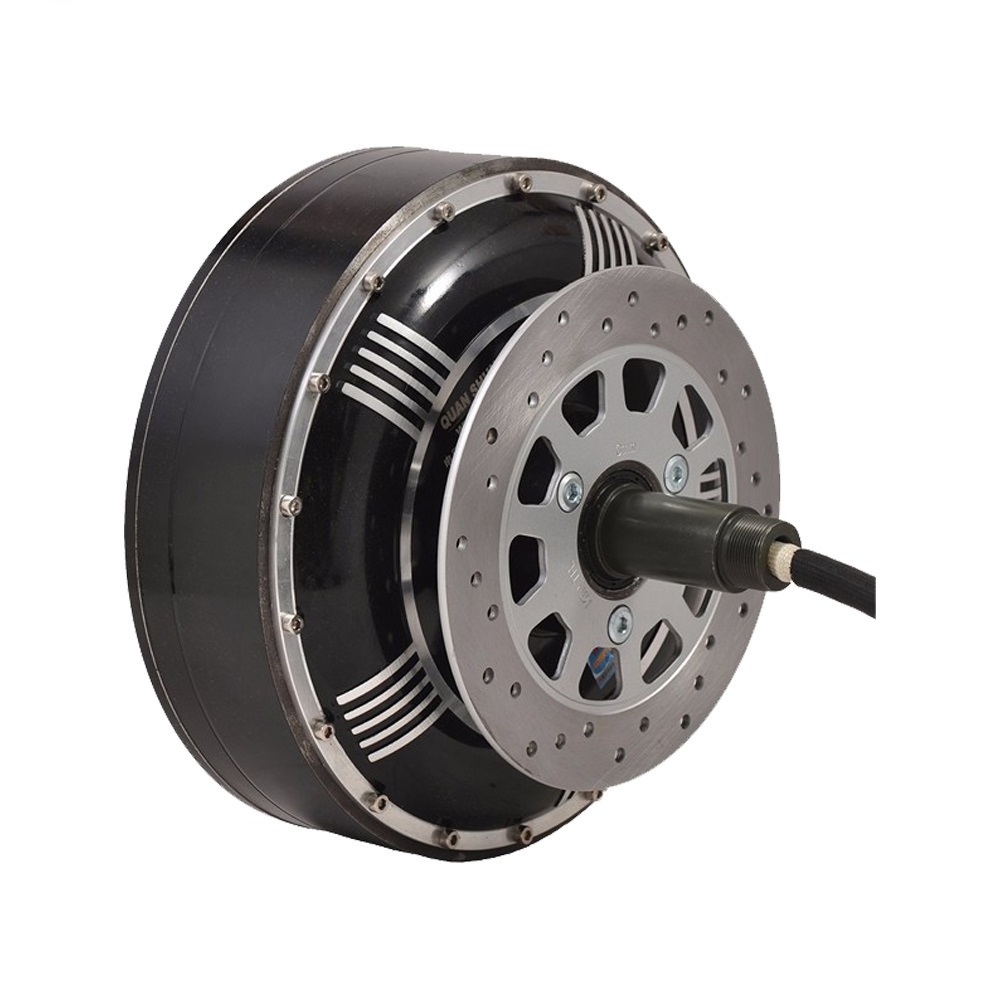

Brushless Hub Motor
-
Voltage:
-
48-120V
-
Rated Out Power:
-
2000-12000W
-
Brake:
-
Disc brake
-
Magnet height:
-
40-70mm
-
Speed:
-
30-120km/h
Quick Details
-
Finishing:
-
Machining Surface
-
Width:
-
5*112mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SM
-
Warranty:
-
1 years
-
Product Name:
-
Brushless Hub Motor
-
Voltage:
-
48-120V
-
Rated Out Power:
-
2000-12000W
-
Brake:
-
Disc brake
-
Magnet height:
-
40-70mm
-
Speed:
-
30-120km/h
Product Description
Specification
|
item
|
value
|
|
Material
|
Aluminum Alloy
|
|
Product Name
|
E-car Hub Motor
|
|
Speed
|
20-120km/h
|
|
Voltage
|
48-120V
|
|
Rated Out Power
|
2000-12000KW
|
|
Brake
|
Disc brake
|
Motor Type: BLDC Hub Motor with Permanent Magnet
Motor design: Single axle out without
PCD for rim installation: 5 x112mm, CB:>60mm
Magnet Height: 40mm
No. of Pole Pairs: 16 pair
Rated Power: 4000W
Peak Power: 8000W Rated Voltage: 72V( 60V-144V Can beoptional)
Speed: 100km/h (24-100km/h can be customized
Max No-load RPM: 1000RPM
Max Torque: 266N.m
Max Efficiency:90%
Continious
current:83A Max current:120A (Peak 170A in short time)
current:83A Max current:120A (Peak 170A in short time)
Brake type: Disc brake
Winding Core material: Aluminium Cross Section of
Hall sensor phasing angle: 120 degree
Temperature Sensor: Optional
Max.
Working Temperature: 70 degree, Peak 120 degree
Waterproof Grade: IP54
Color: Black N.W./ G..W. : 23.5kgs /25kgs
Package Size: 34*34*33CM
Product Drawing
Its the drawing for normal 273 e-car hub motor with M8*3 disc brake. PCD and CB can be customized.
Related Model
We also provide the suitable motor kits:
Motor Controller, Speedometer, Throttle, Pedal, Brake System, and etc.
