* Nominal Capacity: 2.6 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 1/4 HP
* Voltage: 220 V 50 Hz
* Oil volume: 180 ml
* Length x width x height: 308x124x228 mm
* Net weight: 7.5 kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13104
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
EPT Vacuum Pump
-
Model Number:
-
2RS-2
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1/2HP
-
Structure:
-
Dual-stage Pump
-
Cable Length:
-
/
-
Outlet Size:
-
1/4''
-
Power:
-
1/2HP, 1/2HP
-
Free Air Displacement:
-
5/4.5 CFM
-
Ultimate Vacuum:
-
2*10^-1Pa
-
Rotating Speed:
-
3500/2800 rpm
-
Oil Capacity:
-
330ml
-
Dimension:
-
290mm*115mm*220mm
-
Weight:
-
10kg
-
Loading port:
-
Shanghai or Ningbo
-
Fuel:
-
Electric Vacuum Pump
-
Certification:
-
ce
Quick Details
-
Application:
-
HVAC OEM, HVAC, vacuum pakcage, automotive, refrigeration
-
Pressure:
-
5PA
-
Voltage:
-
220v50hz
-
Warranty:
-
1 years
-
Brand Name:
-
EPT Vacuum Pump
-
Model Number:
-
2RS-2
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1/2HP
-
Structure:
-
Dual-stage Pump
-
Cable Length:
-
/
-
Outlet Size:
-
1/4''
-
Power:
-
1/2HP, 1/2HP
-
Free Air Displacement:
-
5/4.5 CFM
-
Ultimate Vacuum:
-
2*10^-1Pa
-
Rotating Speed:
-
3500/2800 rpm
-
Oil Capacity:
-
330ml
-
Dimension:
-
290mm*115mm*220mm
-
Weight:
-
10kg
-
Loading port:
-
Shanghai or Ningbo
-
Fuel:
-
Electric Vacuum Pump
-
Certification:
-
ce
Products Description
Standard Features
* * Aluminum alloy casing: Alloy casing has high heat dissipation to keep the motor and pump cool, while being light weight and
efficient

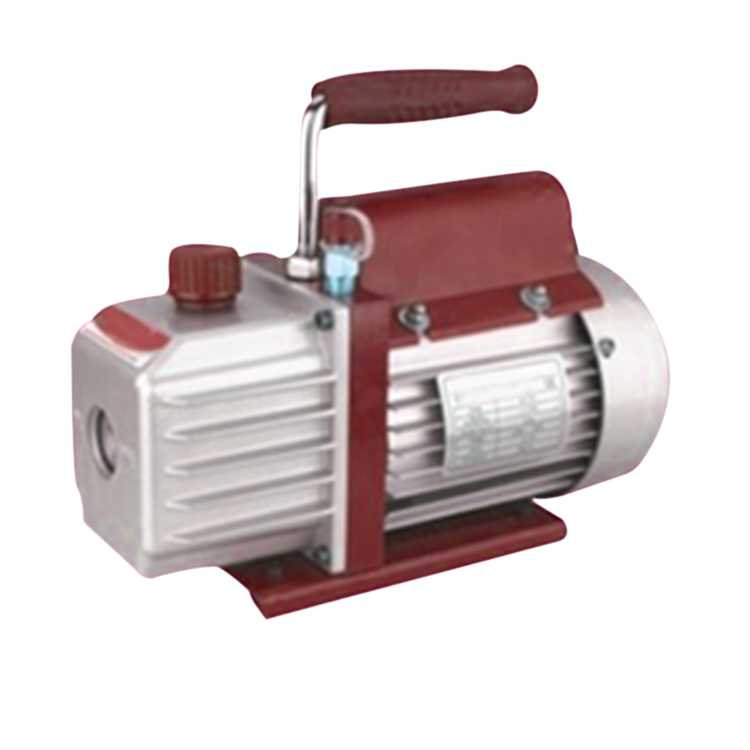

* Two-Stage Rotary Vane Deep Vacuum Pump
* Direct drive motor allows for easy start up and is maintenance free
* Direct coupling between the motor and pump results in quiet running and good performance
* Force fed lubrication provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump
operation. Cleaner oil reduces ware and break downs.
* Oil drain valve positioned at bottom of oil reservoir.
* Ballast valve on top of the pump
* Great tool for: system evacuation (refrigeration or air conditioning), printing, medical, vacuum packing, hot forming
plastics and other requirements where a high quality pump may be required
* * Aluminum alloy casing: Alloy casing has high heat dissipation to keep the motor and pump cool, while being light weight and
efficient
* Two-Stage Rotary Vane Deep Vacuum Pump
* Direct drive motor allows for easy start up and is maintenance free
* Direct coupling between the motor and pump results in quiet running and good performance
* Force fed lubrication provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump
operation. Cleaner oil reduces ware and break downs.
* Oil drain valve positioned at bottom of oil reservoir.
* Ballast valve on top of the pump
* Great tool for: system evacuation (refrigeration or air conditioning), printing, medical, vacuum packing, hot forming
plastics and other requirements where a high quality pump may be required
Vacuum pump VE215
Vacuum pump VE245
* Nominal Capacity: 7.6 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 1/2 HP
* Voltage: 220 V 50 Hz
* Oil volume: 340 ml
* Length x width x height: 340x138x244 mm
* Net weight: 11.4kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13105
* Final vacuum : <0,005 mbar
* Motor Power: 1/2 HP
* Voltage: 220 V 50 Hz
* Oil volume: 340 ml
* Length x width x height: 340x138x244 mm
* Net weight: 11.4kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13105
Vacuum pump VE260
* Nominal Capacity: 10.2 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 3/4HP
* Voltage: 220 V 50 Hz
* Oil volume: 600 ml
* Length x width x height: 395x145x260 mm
* Net weight: 16.5 kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13106
* Final vacuum : <0,005 mbar
* Motor Power: 3/4HP
* Voltage: 220 V 50 Hz
* Oil volume: 600 ml
* Length x width x height: 395x145x260 mm
* Net weight: 16.5 kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13106
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
If you need to customize, please click here to contact us.
