Quick Details
-
Model Number:
-
BGE800
-
Place of Origin:
-
Shandong, China
-
Name:
-
Automated Electrolytic Analyzer / Blood Gas Electrolyte Analyzer
-
Item:
-
Body Element Measurer
-
Color:
-
White
-
Language version:
-
English. Chinese
-
Screen:
-
10.4'' TFT Touch Screen
-
Input Parameters:
-
Patient Temperature, Hemoglobin, FiO2, B.P.
-
Analysis Time:
-
<90s
-
Sample Volume:
-
95μl (whole blood),35μl (capillary blood)
-
Calibration:
-
Automatic, Programmable, One-point and Two-point
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BGE800
-
Place of Origin:
-
Shandong, China
-
Name:
-
Automated Electrolytic Analyzer / Blood Gas Electrolyte Analyzer
-
Item:
-
Body Element Measurer
-
Color:
-
White
-
Language version:
-
English. Chinese
-
Screen:
-
10.4'' TFT Touch Screen
-
Input Parameters:
-
Patient Temperature, Hemoglobin, FiO2, B.P.
-
Analysis Time:
-
<90s
-
Sample Volume:
-
95μl (whole blood),35μl (capillary blood)
-
Calibration:
-
Automatic, Programmable, One-point and Two-point

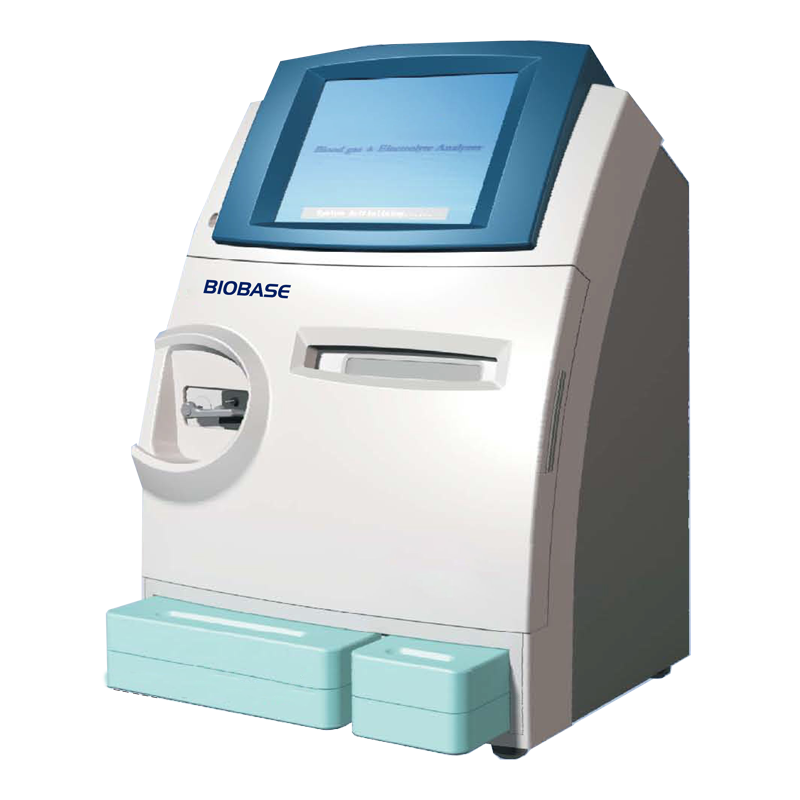

BGE800 Series Blood Gas & Electrolyte Analyzer
Feature
①．10.4’’ TFT Touch Screen
②．Infrared human-dector
③．Auto QC Cartridge
④．Easy to use, fast data input
⑤．Cost-saving standy mode
⑥．Rich data management
⑦．Flexible and simple calibrants cartridge
⑧．Friendly operation interface
②．Infrared human-dector
③．Auto QC Cartridge
④．Easy to use, fast data input
⑤．Cost-saving standy mode
⑥．Rich data management
⑦．Flexible and simple calibrants cartridge
⑧．Friendly operation interface
|
Test Items
|
Measuring Range
|
Unit
|
|
pH(CH)
|
6.000~9.000
|
pH scale
|
|
pCO2
|
1.607~26.67
|
kpa
|
|
|
8.0~200.0
|
mmHg
|
|
pO2
|
kpa
|
kpa
|
|
|
0~800.0
|
mmHg
|
|
K
|
0.5~15.0
|
mmol/L
|
|
Na+
|
20.0~200.0
|
mmol/L
|
|
Cl-
|
20.0~200.0
|
mmol/L
|
|
Ca++
|
0.3~5.0
|
mmol/L
|
|
Hct
|
12.0~65.0
|
%
|
|
B.P.
|
500~800
|
|
|
Glu
|
1.1~66.7
|
mmol/L
|
|
Lac
|
0.4~30.0
|
mmol/L
|
|
Derived(Calculated) Parameters
|
|
|
|
pH(TC)
|
pH Temperature Corrected
|
|
|
pCO2(TC)
|
pCO2 Temperature Corrected
|
|
|
pO2(TC)
|
pCO2 Temperature Corrected
|
|
|
TCO2
|
Total Carbon Dioxide
|
|
|
HCO3
|
Actual Plasma Bicarbonate
|
|
|
BEb
|
Base Excess in Blood
|
|
|
BEecf
|
Base Excess Inextra Cellular Fluids
|
|
|
SBC
|
Standard Bicarbonate
|
|
|
So2%
|
Calculated Oxygen Staturation Percentage
|
|
|
Ca++(7.4)
|
Ionized Calcium Normalized’’ to pH 7.4
|
|
|
TCa
|
Total Calcium Content
|
|
|
AG
|
Anion Gap
|
|
|
RI
|
Respiratory Index
|
|
|
AaDO2
|
Alveolar Artillery Oxygen Gradient
|
|
|
O2SAT
|
Oxygen Saturation
|
|
|
tHb(c)
|
Hernoglobin (Calculated)
|
|
Specifications
BGE-800A:
pH(CH), pCO2, pO2, K,Na+, CL-, Ca++, Hct, B.P.
BGE-800B: pH, pCO2, pO2, Hct, B.P.
BGE-800B: pH, pCO2, pO2, Hct, B.P.
|
Model
|
BGE-800Series
|
|
Sample
|
Whole blood, Serum, Plasma, Dialysate, CSF
|
|
Input Parameters
|
Patient Temperature, Hemoglobin, FiO2, B.P.
|
|
Analysis Time
|
＜90s
|
|
Sample Volume
|
95μl (whole blood),35μl (capillary blood)
|
|
Calibration
|
Automatic, Programmable, One-point and Two-point
|
|
Data Storage
|
More than 10,000 results
|
|
Display
|
10.4'' TFT Touch Screen
|
|
Battery
|
Leadacidbattery,2.3Ah
|
|
Printer
|
Build inthermalprinter, 70mm
|
|
Barcode Reader
|
Up to 14 Kindsbarcodetype
|
|
Interface
|
Serialline RS-232
|
|
|
TCP/IPinterface
|
|
|
USBport
|
|
|
Integratedbar-code reader
|
|
Working Conditions
|
PowerSupply:AC220±10% 50/60Hz; 110±10% 60Hz;150W
|
|
|
Temperature:15℃~30℃
|
|
|
Storage Environment:5~45℃
|
|
Package Size(W*D*H)
|
800*680*640mm
|
|
Gross Weight
|
50kg
|
|
ReagentPackage Size
|
320*460*370mm
|
|
ReagentGross Weight
|
7kg
|
