Quick Details
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-ACD240S24100
-
Output Frequency:
-
50-60Hz
-
Output Current:
-
100A
-
Product name:
-
24V 100A AC/DC converter
-
Model:
-
YK-ACD240S24100
-
AC Input rate voltage:
-
240Vac
-
AC Input voltage range:
-
180~270VAC
-
Output Voltage Range:
-
24VDC
-
Output voltage range:
-
20-40VDC
-
Size:
-
482*88*300mm
-
Weight:
-
8Kg
Quick Details
-
Input Voltage:
-
240VAC
-
Output Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-ACD240S24100
-
Output Frequency:
-
50-60Hz
-
Output Current:
-
100A
-
Product name:
-
24V 100A AC/DC converter
-
Model:
-
YK-ACD240S24100
-
AC Input rate voltage:
-
240Vac
-
AC Input voltage range:
-
180~270VAC
-
Output Voltage Range:
-
24VDC
-
Output voltage range:
-
20-40VDC
-
Size:
-
482*88*300mm
-
Weight:
-
8Kg
Products Description
Main features
☆
Wide input voltage range, output voltage can be fine-tuned
☆ Can be connected to external battery backup, with charge/discharge management function
☆ High accuracy of voltage stabilization, small output noise ripple
☆ Overload, overvoltage, overcurrent, over temperature, undervoltage, short-circuit and other protections
☆ Intelligent temperature control cooling fan
☆ Can be used in parallel with more than one equalizing current (optional when ordering)
☆ Standard 19-inch rack mount
☆ AC220V and DC220V dual input can be customized (optional when ordering)
☆ Can be connected to external battery backup, with charge/discharge management function
☆ High accuracy of voltage stabilization, small output noise ripple
☆ Overload, overvoltage, overcurrent, over temperature, undervoltage, short-circuit and other protections
☆ Intelligent temperature control cooling fan
☆ Can be used in parallel with more than one equalizing current (optional when ordering)
☆ Standard 19-inch rack mount
☆ AC220V and DC220V dual input can be customized (optional when ordering)
Product Specifications
|
Model
|
YK-ACD240S24100
|
|
AC Input rate voltage
|
240VAC
|
|
AC Input voltage range
|
180~270VAC
|
|
Output rate voltage
|
24VDC
|
|
Output voltage range
|
20-40VDC
|
|
Output rate Current
|
100A
|
|
Load regulation
|
≤0.2%
|
|
Power grid regulation
|
≤0.1%
|
|
Degree of imbalance for equalized current
|
≤±5%
|
|
Phone weighted noise voltage
|
≤2mV（CCITT）
|
|
Peak—peak noise
|
≤150mV
|
|
Wide frequency noise
|
≤50mV
|
|
Discrete noise
|
≤20mV
|
|
Efficiency
|
≧83%
|
|
Dynamic response
|
20% ~ 100% step load≤200Restoring time≤100uS
|
|
Working temperature
|
－5～45℃
|
|
Cooling mode
|
Temperature control wind cooling
|
|
MTBF
|
100,000Hour
|
|
Weight
|
8Kg
|
|
Dimension
|
482.6×88×300mm
|

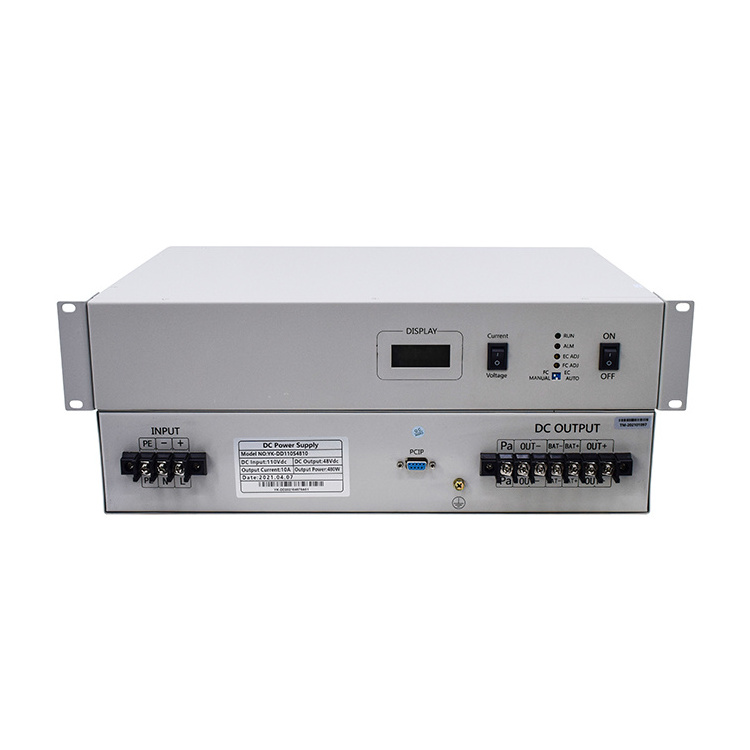

Details Images
