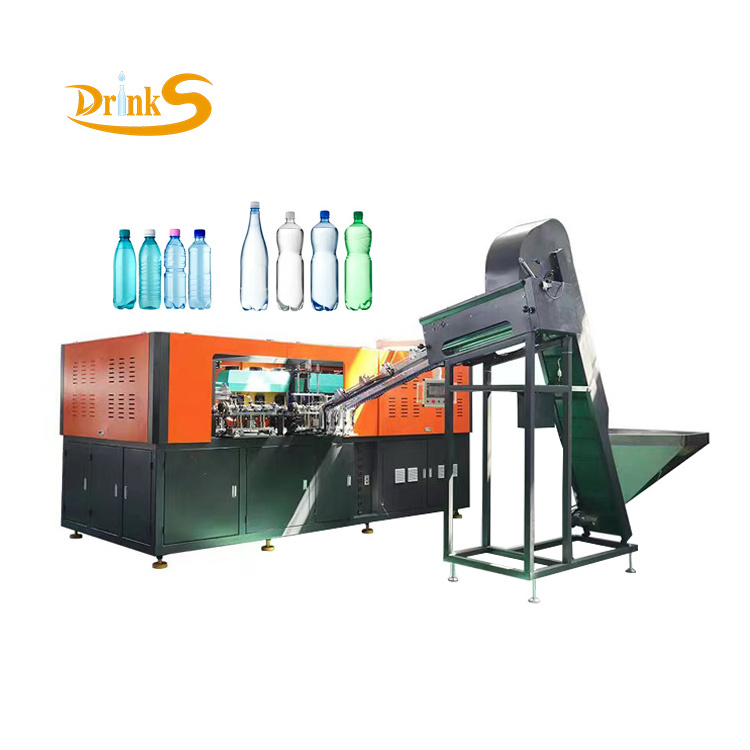

2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower

2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower

FOB Reference Price: Get Latest Price
≥1 Sets
US $10000
≥2 Sets
US $4000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Bottle Volume(ml):
500 ml
Place of Origin:
Jiangsu, China
Brand Name:
Drinks
Year:
2022
Voltage:
220v/380v
Dimension(L*W*H):
4500*2250*2200mm
Hollow part volume:
100-2500ml
Power (kW):
45
Weight (KG):
3500 KG
Product name:
Automatic bottle blowing machine
Raw material:
PET preform
Cavity:
2 / 3 / 4 / 6 cavity
Driven grade:
Electric
Preform heating method:
Electric circulation heating
PLC:
SIMENS(Germany)
After-sales Service Provided:
Engineers
Suitable bottle:
100-2000ml Bottle
Capacity:
1000-6000BPH
Advantages:
Easy Operation
Marketing Type:
New Product 2022

Quick Details

Neck Diameter(mm):
28 mm
Max.Bottle Diameter(mm):
110 mm
Max.Bottle Height(mm):
400 mm
Bottle Volume(ml):
500 ml
Place of Origin:
Jiangsu, China
Brand Name:
Drinks
Year:
2022
Voltage:
220v/380v
Dimension(L*W*H):
4500*2250*2200mm
Hollow part volume:
100-2500ml
Power (kW):
45
Weight (KG):
3500 KG
Product name:
Automatic bottle blowing machine
Raw material:
PET preform
Cavity:
2 / 3 / 4 / 6 cavity
Driven grade:
Electric
Preform heating method:
Electric circulation heating
PLC:
SIMENS(Germany)
After-sales Service Provided:
Engineers
Suitable bottle:
100-2000ml Bottle
Capacity:
1000-6000BPH
Advantages:
Easy Operation
Marketing Type:
New Product 2022
Product Description
2 Cavity 3 Cavity 4 Cavity 6 Cavity Fully Automatic pet Bottle Making Machine / Plastic Bottle Blowing Machine / Bottle Blower
The machine can be customized according to the bottle type or design drawings provided by customers
Specification
Type
4 Cavity
Output
According to bottle shape
Max 4000pcs/h
Product specification
Bottle body diameter
20mm-100mm
Bottle height
50mm-350mm
Bottle mouth diameter
15mm-38mm
Mold
Cavity
4 cavities
Mold thickness
200mm
Mold effective area
800*800mm
Main power
Power, voltage
380V 3phase 50/60HZ
Install machine power/actual use power
68KW/52KW
Air source
Low pressure air compressor
3m³/min 2.0MPa
High pressure air compressor
5.2m³/min 3MPa
Cold-dry machine
3m³/min 3MPa 1set
Cooling water
Cooling quantity
30L/min
Main machine size
L*W*H
3400*1900*2500mm 2600KG
Feeder size
L*W*H
2000*1350*2550mm  550KG

Main Features

1. High safety, high speed with high efficiency
2. Manual saving, one man is enough for operation the machine
3. Stable performing with easy maintaining
4. Imported PLC controlling and man-machine interface computer
5. Japan Omron inspection sensor
6. Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is
move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong
7. Power saving design that can increase your profits
8. Segregate type air controlling system, which is designed for avoiding waste pollution
Detailed Images
Electric box


Servo motor: P anasonic (Japan)

Frequency converter: Mitsubishi (Japan)

Electromagnetic valve: F esto (Germany)

Blowing valve: From USA

Pressure reducing valve: AirTAC (Taiwan)

Related Products
If you want to know more products, please view our website: https://drinksmachinery.en.alibaba.com/productlist.html

Carbonated beverage filling machine

Crown capping machine

Bottled juice filling machine

Shrink sleeve labeling machine

Automatic Shrink wrapping machine

5 gallon water filling machine

Company information
Our Service

1.Sample service
We can send you a working video of the machine.
You are very welcome to visit our company and inspect the operation of the machine on site. We will send people to the airport to pick you up.

2. Customized service
We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.

3. After-sale service
After receiving the final payment, we will provide the bill of lading on time to ensure that the customer receives the goods as soon as possible.
When you have completed all the preparations, we will send engineers to your factory to install the machines and train your employees until they can operate the machine very well.
We can provide one year warranty with spare parts free, And free lifetime technical service.

FAQ
Q1. Are you a factory or trading company?
A1: We are a professional beverage packaging equipment manufacturing factory. We always pay attention to the development of the industry, and We can give a discount according to the quantity of machine you purchase.
B1: At the same time we take effective measures to control the production process for ensuring the quality of products
C1: You can browse our Alibaba website: drinksmachinery.en.alibaba.com

Q2. Where is your factory located? How can I visit there?
A2: Our factory is located in Group 6 of Xiangqun Village, LeYu Town, Zhangjiagang city, Jiangsu Province, China. Warmly welcome customers at home and abroad to come and guide.

Q3. What products does your company offer by yourself?
A3: We are specialized in water filling machine, water treatment plant, 5 gallon water filling machine, and related equipment.

Q4: How can I know your machine works well?
A4: We will show you the condition of the machine before delivery.

Q5: Do you have technical support after we purchased your machines?
A5: One year warranty, free replacement parts, one year after we provide cost price repair and lifetime technical service. And we have professional engineers who often visit overseas customers' factories and solve problems for customers free of charge.
