Quick Details
-
Application:
-
Mall
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
United Insulation
-
Model Number:
-
UI HVAC 25 80 120
-
Type:
-
glass wool insulation
-
Material:
-
fiberglass, Fiberglass
-
Color:
-
Yellow
-
Density:
-
80kg/m3
-
Thickness:
-
25mm
-
Width:
-
1200mm
-
Facing:
-
Alumunum foil/fiber glass tissue
-
Thermal Conductivity:
-
0.034-0.044w/mk
-
Hydrophobicity:
-
≥98%
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Mall
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
United Insulation
-
Model Number:
-
UI HVAC 25 80 120
-
Type:
-
glass wool insulation
-
Material:
-
fiberglass, Fiberglass
-
Color:
-
Yellow
-
Density:
-
80kg/m3
-
Thickness:
-
25mm
-
Width:
-
1200mm
-
Facing:
-
Alumunum foil/fiber glass tissue
-
Thermal Conductivity:
-
0.034-0.044w/mk
-
Hydrophobicity:
-
≥98%
-
Certificate:
-
CE
PRODUCT INFORMATION

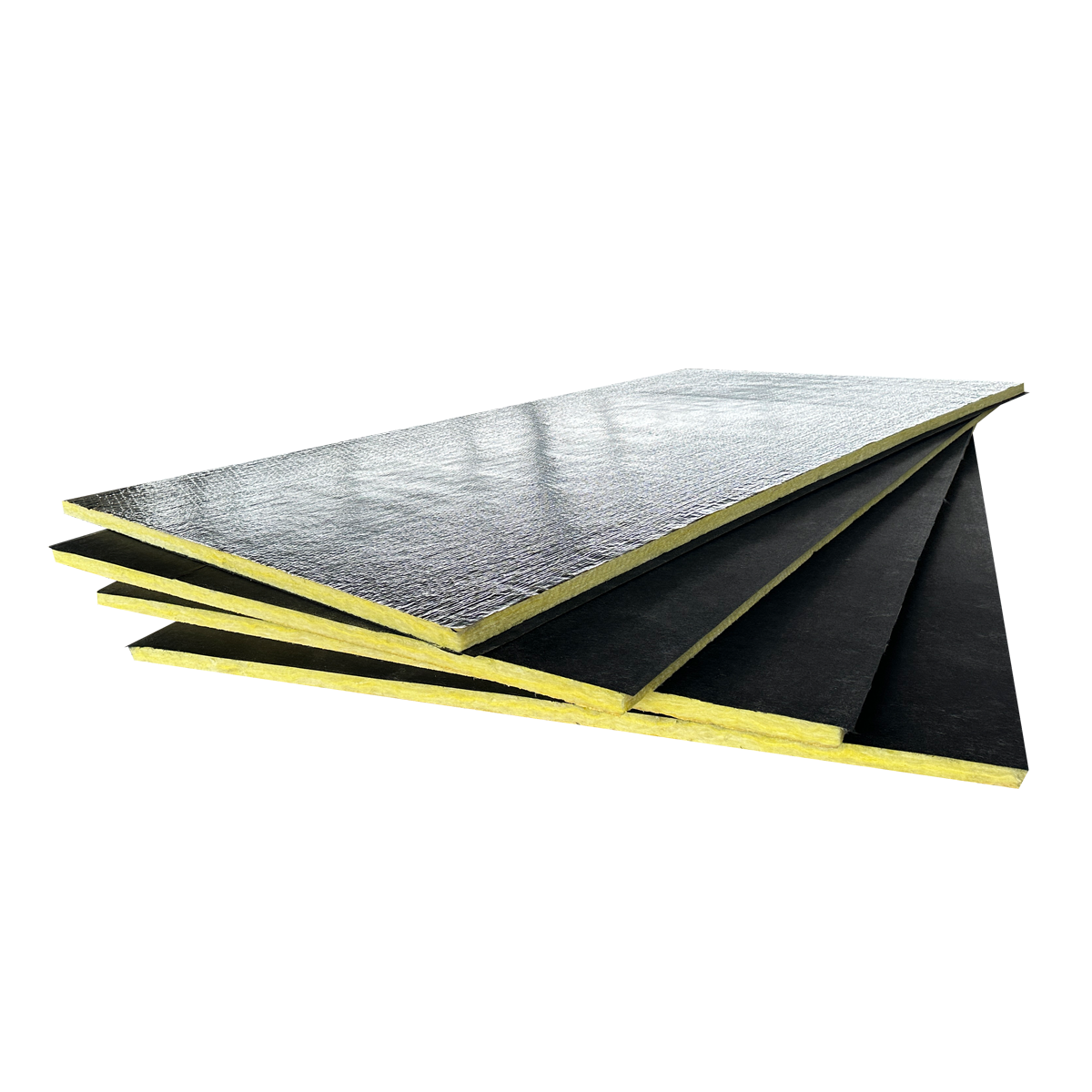

United Insulation HVAC glass wool duct panel dampens unwanted noise and promotes consistent temperatures for less wasted energy. In addition, it contributes to a healthier indoor environment through less air leakage and is protected against damage from microbial growth. It is easy to fabricate for faster installation. Our duct board solutions offer a wide range of benefits to fit your requirements and needs.
Smei-Rigd or Rigid Panel
AVAILABLE SIZE
| Product Code |
Density
(kg/m³) |
Thickness
(mm) |
Width
(mm) |
Conductivty
(W/m·K) |
Packing
(pcs/PKG) |
PKG/40'HQ
(No#) |
|
| UET HVPL 4825 | 48 | 25 | 600 | 0.035 | 1 |
Loading Qty,
Please consult |
|
| UET HVPL 4830 | 48 | 30 | 600 | 0.035 | 1 | ||
| UET HVPL 4840 | 48 | 40 | 600 | 0.035 | 1 | ||
| UET HVPL 4850 | 48 | 50 | 600 | 0.035 | 1 | ||
| UET HVPL 6425 | 64 | 25 | 600 | 0.034 | 1 | ||
| UET HVPL 6430 | 64 | 30 | 600 | 0.034 | 1 | ||
| UET HVPL 6440 | 64 | 40 | 600 | 0.034 | 1 | ||
| UET HVPL 6450 | 64 | 50 | 600 | 0.034 | 1 | ||
| UET HVPL 9625 | 96 | 25 | 1200 | 0.032 | 1 | ||
| UET HVPL 9630 | 96 | 30 | 1200 | 0.032 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF UET HVPL 9630
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 96kgs/m³ | |
| Thickness | GB/T 13350-2008 | 30mm | |
| Average diameter of fibers | GB/T 13350-2008 | 6.5μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.034W/m·K | |
| Thermal Resistance | ASTM C653 | 1.40m²·K/W | |
| Average NRC | EN ISO 354 | 1.00 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
SOUND ABSORPTION
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| 25 | 0.04 | 0.27 | 0.71 | 0.96 | 1.03 | 0.99 | 0.75 | |
| 40 | 0.11 | 0.45 | 0.96 | 1.07 | 1.06 | 1.00 | 0.90 | |
| 50 | 0.14 | 0.81 | 1.10 | 1.07 | 1.03 | 0.01 | 1.00 |
AVAILABLE FACINGS
FSK, Vinyl, Foil, WMP, and Kraft Facing is available accordingly to project design.
PACKAGING
Glass wool panel is packed by pallet, wrapped by a stretch film. It's easy to load and un-load with forklift to save labor cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Improve the energy efficiency of the building
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
• Use in the fabrication of HVAC systems, air diffusers and register boxes
• Used to fabricate ducts for commercial and residential construction
• Use in manufactured and modular housing duct system
• Used to fabricate ducts for commercial and residential construction
• Use in manufactured and modular housing duct system
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
