Quick Details
-
Weight (KG):
-
250 KG
-
Applicable Industries:
-
Mixing and Grinding Equipment
-
Volume (L):
-
30-2000
-
Rotate Speed (rpm):
-
20~60rpm
-
Material Capacity (L):
-
10.7-700
-
Output Granularity (mesh):
-
≥300
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Output (kg/h):
-
10.5 - 700 kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
TMAX
-
Weight (KG):
-
250 KG
-
Applicable Industries:
-
Mixing and Grinding Equipment
-
Volume (L):
-
30-2000
-
Rotate Speed (rpm):
-
20~60rpm
-
Material Capacity (L):
-
10.7-700
-
Output Granularity (mesh):
-
≥300
-
After-sales Service Provided:
-
Free spare parts

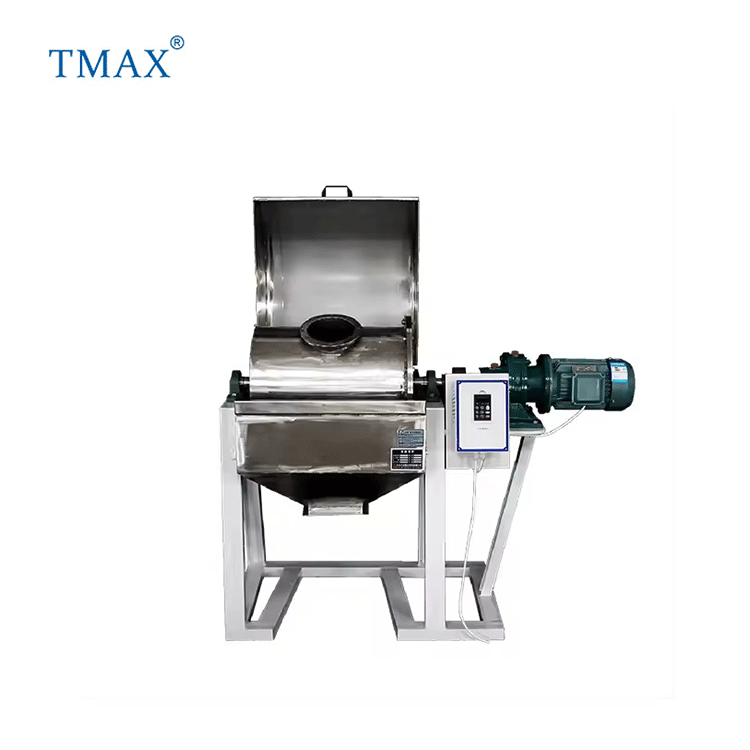

When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.
Features
1. Stable running, high efficiency, low noise and non-pollution
2. All kinds of hard materials can be ground with dry or wet grinding method; the machine is suitable for rough and fine grinding or can be also applied to mixing materials.
3. The machine is self-equipped with pouring device, and has function of separating powder and ball media automatically, convenient to output powder.
4. Equipped with safety cover, finest pure degree and non-pollution.
5. Anti-abrasion, high efficiency of grinding.
6. A variety of liner jars in different materials can be selected such as alloyed steel, stainless steel, abrasion-resisting polyurethane, corundum ceramic, zirconia, and etc. Models of 20-2000L volume are available for customers’ needs.
Selection Helps of Light Roll Mill
1. Model Instruction: QM-(VOLUME)-(A: means speed is adjustable, B: common model). Example: QM-50-A means it is a model of 50L volume roll mill with function of speed adjusting;
2. Model No of roll mill can be selected according to quantity (weight) of grinding materials;
3. Selection of materials of jars and balls can be made by property of material;
4. Automatic pouring device and anti-dust cover is available for your option.
Specifications
Matching Solutions Recommendation for Materials & Roll Mill Jars
|
Materials & Requests |
Recommended Solutions |
|
Soil materials and other materials which are not allowed with any impurity contamination |
Agate mill jar |
|
Metal or nonmetal which are not allowed with any impurity contamination |
Zirconium mill jar |
|
High hardness materials like diamond, tungsten carbide |
Tungsten carbide mill jar |
|
Strong add & alkali materials, or other materials under high temperature |
PTFE mill jar |
|
Iron ore materials or other materials with low impurity sensitivity |
304 stainless steel mill jar |
|
Pigment or materials with later processing under high temperature |
Nylon mill jar |
|
Aluminum materials like ceramic glaze |
Corundum mill jar |
|
Electronic materials like lithium battery |
Polyurethane mill jar |
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Available Mill Balls & Specifications
|
Descriptions |
Available Specifications (Diameter Size) |
|
304 Stainless steel mill balls |
From 1mm to 30mm |
|
316l Stainless steel mill balls |
From 1mm to 30mm |
|
Alumina mill balls |
From 1mm-50mm |
|
Zirconium mill balls |
From 0.1mm to 30mm |
|
Agate mill balls |
From 1mm-30mm |
|
Tungsten carbide mill balls |
From 2mm to 20mm |
|
Carbon steel mill balls |
From 1mm to 30mm |
|
Iron core PU mill balls |
From 15mm-30mm |
Suggestions for Matching Solution About Grinding Medium & Materials
