KW10-Z0P micro switch is rated for controlling electrical loads ranging from logic-level/computer-based circuits to limited power-duty switching (up to 3 A/125 Vac).
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DAIER
-
Model Number:
-
KW10-Z0P
-
Max. Current:
-
3A
-
Operating Temperature:
-
-25℃~+75℃
-
Protection Level:
-
IP40
-
IP level:
-
IP40
-
Current:
-
1A~3A
-
Voltage:
-
125/250VAC
-
Contact Resistance:
-
≤50m Ω
-
Insulation Resistance:
-
≥100M Ω (500VDC)
-
Dielectric Strength:
-
600VAC 1Minute
-
Ambient Humidity Used:
-
<85% RH
-
Electrical Life:
-
≥10,000 Cycles
-
Mechanical Life:
-
≥100,000 Cycles
-
Certificate:
-
CE,Rohs,CQC,TUV
-
Application:
-
Mouse
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIER
-
Model Number:
-
KW10-Z0P
-
Max. Current:
-
3A
-
Operating Temperature:
-
-25℃~+75℃
-
Protection Level:
-
IP40
-
IP level:
-
IP40
-
Current:
-
1A~3A
-
Voltage:
-
125/250VAC
-
Contact Resistance:
-
≤50m Ω
-
Insulation Resistance:
-
≥100M Ω (500VDC)
-
Dielectric Strength:
-
600VAC 1Minute
-
Ambient Humidity Used:
-
<85% RH
-
Electrical Life:
-
≥10,000 Cycles
-
Mechanical Life:
-
≥100,000 Cycles
-
Certificate:
-
CE,Rohs,CQC,TUV
-
Application:
-
Mouse
Product Description
|
Product Name
|
KW10 SPDT NO Lever Pcb Terminal 3pin Mini Micro Switch
|
|
Rating
|
1A~3A 125VAC/250VAC
|
|
Housing
|
Nylon 66
|
|
Terminal
|
Brass with sliver plated
|
|
Lever length
|
0 mm
|
|
Switch Operation
|
OFF – momentary ON
3pin Mini Micro Switch
|
|
Contact Configuration
|
SPDT
|
Products Show

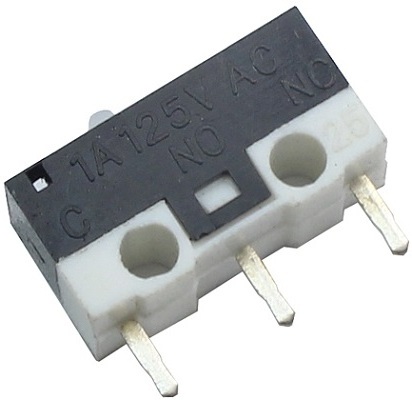

KW10-Z0P
KW10-Z0P
KW10-Z0P micro switch package is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity
Workshop
Yueqing Daier Electric Co., Ltd. was established in 2003,the company covers an area of 2,500 square meters. Daier is a collection of scientific research, production and domestic and international trade company. The company mainly develops, produces and sells knobs and other accessories.
The company has more than 200 employees, and has a highly qualified engaged in electronic components and international trade experience decades of research and development, production and sales team.
Daier owns a powerful technical staff, advanced production equipment,and perfected quality control system.Most of our products have CE,CQC,TUV.Rohs and UL Certificate. All production, processing and sales are in strict accordance with ISO9001:2015.
Product Certified
Exhibition
Our team
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Yes. we have a research & development dept.
