Quick Details
-
Dimension(L*W*H):
-
13.2m X 3.2m X 6.3m
-
Weight:
-
5000 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Concerete Batch Plant
-
Capacity:
-
25m3/h
-
Name:
-
Belt Conveyor Harga Concrete Batching Plant
-
Local Service Location:
-
Russia
-
Type:
-
Building Construction Tools
-
Application:
-
Construction Projects
-
Model:
-
HZS25/35/50/60
-
Batching Machine:
-
PLD1600 Batching Machine
-
After Warranty Service:
-
Video Technical Support
Quick Details
-
Machine Type:
-
Belt conveyor
-
Place of Origin:
-
Zhejiang, China
-
Power:
-
75
-
Dimension(L*W*H):
-
13.2m X 3.2m X 6.3m
-
Weight:
-
5000 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Concerete Batch Plant
-
Capacity:
-
25m3/h
-
Name:
-
Belt Conveyor Harga Concrete Batching Plant
-
Local Service Location:
-
Russia
-
Type:
-
Building Construction Tools
-
Application:
-
Construction Projects
-
Model:
-
HZS25/35/50/60
-
Batching Machine:
-
PLD1600 Batching Machine
-
After Warranty Service:
-
Video Technical Support
Product Features

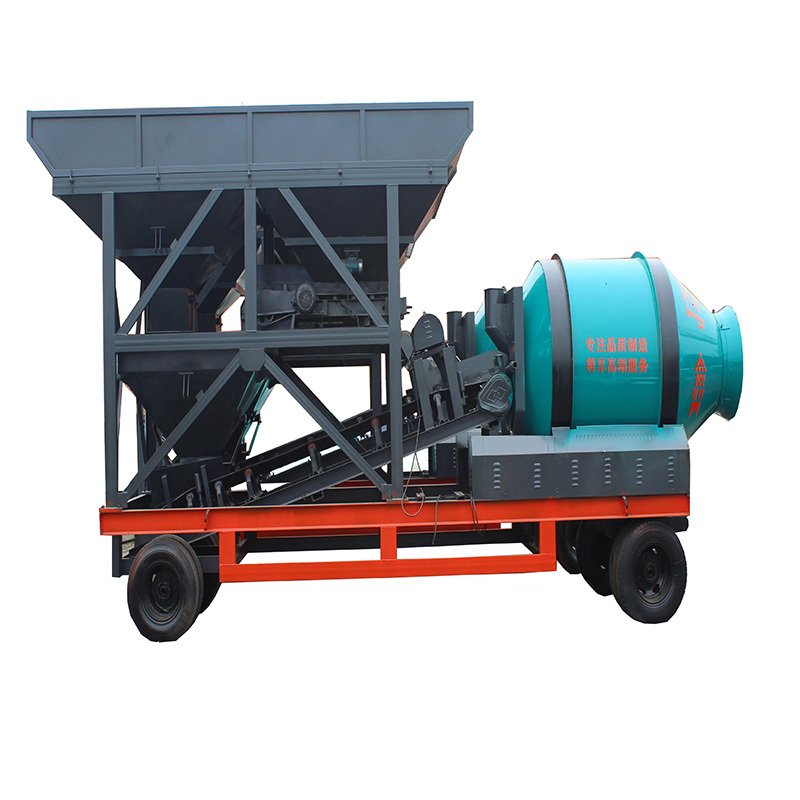

Mobile concrete batching plant is a concrete production equipment that integrates the batching, weighing, conveying, mixing,unloading and automatic control systems into a mobile unit. It has the same production process and operation method as the stationary concrete batching plant, but gets the advantages of flexible movement and easy disassembled and assembled. When moving the work site, except the screw conveyor and cement silo, other parts do not need to be disassembled
The components of YHZS concrete mixing plant are
1.JS series mixer
2. Aggregate, powder storage, weighing and conveying system;
3. Water supply, weighing and drainage system;
4. Additive storage, supply and weighing system;
5. Mixed dust collecting system;
6. Main tower structure;
7. Pneumatic system;8.Automatic control system.
Brief Introduction of Mobile concrete batching plant:
YHZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. YHZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
|
Model
|
|
YHZS25
|
YHZS35
|
YHZS50
|
YHZS75
|
YHZS100
|
|
|
Theory capacity
|
|
25m³/h
|
35m³/h
|
50m³/h
|
75m³/h
|
100m³/h
|
|
|
Discharging height
|
|
3800mm
|
3800mm
|
3800mm
|
3800mm
|
3800mm
|
|
|
Total power
|
|
38.5kw
|
42kw
|
60kw
|
86kw
|
100kw
|
|
|
Approximate weight without silo
|
|
About 13T
|
About 15T
|
About 18T
|
About 22T
|
About 26T
|
|
|
Dimension(L * W * H)
|
|
13.2m X 3.2m
X 6.3m |
13.2m X 3.2m
X 6.3m |
16m X 3.3m
X 8m |
18.5m X 3.9m
X 8.2m |
18.5m X 3.9m
X 8.2m |
|
|
Moving size(L * W * H)
|
|
11.8m X 2m
X3.8m |
11.8m X 2m
X3.8m |
15.6m X 2.1m
X4.2m |
18.1m X 2.3m
X 4.3m |
18.1m X 2.3m
X 4.3m |
|
|
Mixing System
|
Model of Mixer
|
JS500
|
JS750
|
JS1000
|
JS1500
|
JS2000
|
|
|
|
Mixing motor
|
18.5kw
|
22kw
|
37kw
|
30kw×2
|
37kw×2
|
|
|
|
Charging volume
|
800L
|
1200L
|
1600L
|
2400L
|
3200L
|
|
|
|
Discharging volume
|
500L
|
750L
|
1000L
|
1500L
|
2000L
|
|
|
Aggregate System
|
Aggregate bin
|
5m³×2
|
6m³×2
|
7m³×2-4
|
8m³×2-4
|
10m³×2-4
|
|
|
|
Cylinder
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
|
|
Measurement System
|
Cement weighing hopper
|
300KG
|
400KG
|
560KG
|
900KG
|
1120KG
|
|
|
|
Water weighing and support frame
|
120KG
|
170KG
|
220KG
|
330KG
|
450KG
|
|
|
|
Additive weighing and support frame
|
20KG
|
20KG
|
30KG
|
40KG
|
50KG
|
|
|
Moving System
|
Towing pin
|
φ50mm/
φ90mm1 set |
φ50mm/
φ90mm1 set |
φ50mm/
φ90mm1set |
φ50mm/
φ90mm 1set |
φ50mm/
φ90mm 1 set |
|
|
|
Tyre
|
70R16 4sets
|
70R16 4sets
|
70R16 4sets
|
75R16 4sets
|
75R16 4sets
|
|
|
Computer ControlSystem
|
Industrial control
computer |
1 set
|
1 set
|
1 set
|
1 set
|
1 set
|
|
|
|
Display
|
15” liquid crystal LCD
|
15” liquid crystal LCD
|
15” liquid crstal LCD
|
17” liquid crystal LCD
|
17” liquid crystal LCD
|
|
