Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THEHAO
-
Model Number:
-
TAR
-
Material:
-
aluminum zinc clad plate(customized)
-
Product Name:
-
Mv&Hv Ring Main Unit Switchgear
-
Application:
-
Power Distribution
-
OEM:
-
OEM Service Provided
-
MOQ:
-
1 Set
-
Package:
-
Wooden Packing
-
Keyword:
-
Ring Main Unit
-
Rated current:
-
630A
-
Frequency:
-
50 Hz
-
Type:
-
Insulated Switchgear Cabinet
Quick Details
-
Voltage:
-
11000, 12000, 22000, 24000, 33000, 36000, 40500
-
Current:
-
630
-
Size:
-
910*420*1750mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THEHAO
-
Model Number:
-
TAR
-
Material:
-
aluminum zinc clad plate(customized)
-
Product Name:
-
Mv&Hv Ring Main Unit Switchgear
-
Application:
-
Power Distribution
-
OEM:
-
OEM Service Provided
-
MOQ:
-
1 Set
-
Package:
-
Wooden Packing
-
Keyword:
-
Ring Main Unit
-
Rated current:
-
630A
-
Frequency:
-
50 Hz
-
Type:
-
Insulated Switchgear Cabinet
Products Description
Specitificate
|
Place of Origin
|
Shanghai
|
|
ltem
|
value
|
|
Place of Origin
|
Shanghai
|
|
Brand Name
|
THEHAO
|
|
Model Number
|
TAR
|
|
Voltage
|
10kv, 11kv, 12kv, 15kv, 20kv, 24kv, 33kv,36kv, 40.5kv,
|
|
Material
|
aluminum zinc cladplate(customized)
|
|
Size
|
910*420*1750mm
|
|
Rated frequency
|
50hz
|
|
Rated current
|
630a
|
|
Temperature rise test
|
1.1lr
|
|
Rated peak value withstanding current
|
63kw
|
|
Rated short-circuit making current
|
63kw
|
|
Rated active load current
|
630a
|
|
Power supply
|
DC 48/110
|
|
|
AC220
|
|
Service life
|
40years
|

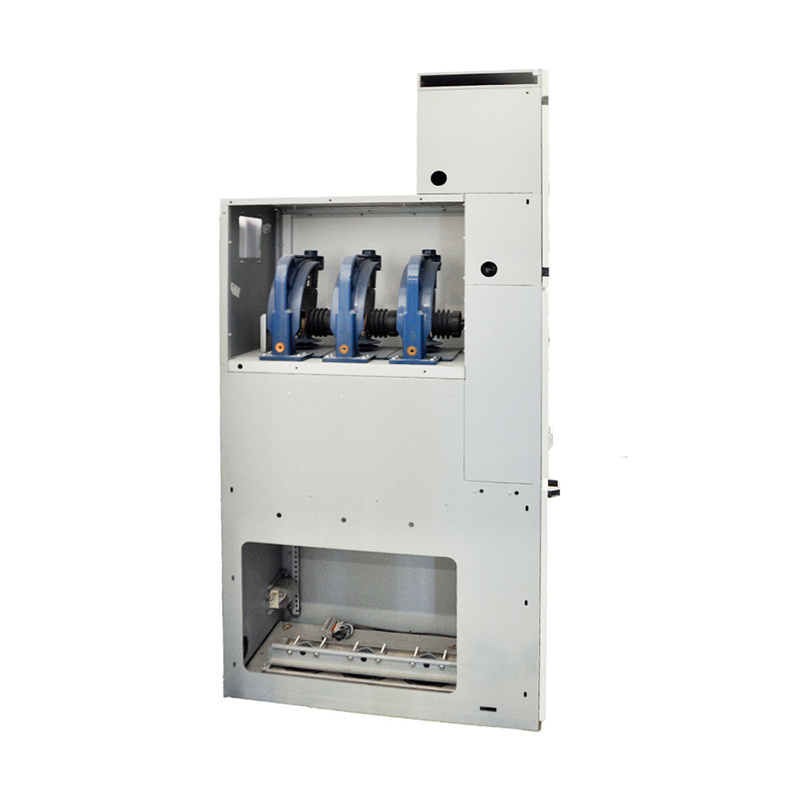

Introduction to TAR series RUM Switchgear
TAR solid insulated air insulated switch device is made up of functional modules in small size and compact structure:
□ Load switch, breaker, isolating switch and ground switch are installed in the closed metal cabinet.
□ The cable chamber can be connected with power grid or transformer through interface.
□ Operating mechanisms of load switch, breaker, isolating switch and ground switch are installed in the operating mechanism box.
□ Indicating instrument and comprehensive protector are installed in the small low-pressure chamber.
□ The fuse storage is combined with load switch.
□ The busbar chamber can extend busbar.
□ It is in accordance with the requirement of Five-protection Interlocking for electric power industry.
Obvious features
● Insulated, sealed, appropriate for places up to 4000m above sea level
● By ingenious design, the isolating fracture has no place to hide.
● Full series solutions can meet the needs of different customers.
● The three-position switch facilitates a more reliable and safer running. Meanwhile, all of the switches can realize rapid open-close.
● The standardized universal main bus-bar on the top is simple, convenient and reliable to be connected, and it can be assembled and extended flexibly.
● All of the unit models adopt unified standard cable pull-plug ends.
● The cable chamber has plenty of height space for places of easy installation.
● The hermetically sealed gas tank, filled with micropressure and ordinary pressuredry gas, achieves high-performance and high reliability of insulation.
Why Choose Us
Company
Exhibition
Product packaging
FAQ
1.How can we guarantee quality?
We have a professional technical team, professional after-sales service department online multi-one-to-one service, overseas technical support.
2.What can you buy from us?
HV switchgear , MV switchgear Lv switchgear Circuit breaker Compact substation Trans former,
3.Why should you buy from us not from other suppliers?
We are the manufacturer, with favorable price, dozens of patents, and cooperation with China's national power grid, the product can be used for 40 years.
4.Do you accept customized service ?
We offer OEM/ODM service , can print your logo on product.
5.What is your MOQ?
MOQ is 1 piece.
6.How long is your delivery lead time ?
According to your product requirement. About 3~ 15days is available
