Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CATCAST
-
Model Number:
-
HPR3624D
-
Application:
-
digital TV broadcasting,CATV,IPTV
-
Product name:
-
24 Channels digital FTA Tuner ISDBT Receiver
-
Brand name:
-
Catcast
-
Input1:
-
16 Tuners input
-
Input2:
-
2 ASI input
-
Output1:
-
2 ASI output (optional)
-
Output2:
-
IP output (256 SPTS and1 MPTS)
-
Maximum PID Remapping:
-
180 output pids per channel
-
Power requirements:
-
AC100~240V,50/60Hz
-
Nature:
-
isdbt receiver
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CATCAST
-
Model Number:
-
HPR3624D
-
Application:
-
digital TV broadcasting,CATV,IPTV
-
Product name:
-
24 Channels digital FTA Tuner ISDBT Receiver
-
Brand name:
-
Catcast
-
Input1:
-
16 Tuners input
-
Input2:
-
2 ASI input
-
Output1:
-
2 ASI output (optional)
-
Output2:
-
IP output (256 SPTS and1 MPTS)
-
Maximum PID Remapping:
-
180 output pids per channel
-
Power requirements:
-
AC100~240V,50/60Hz
-
Nature:
-
isdbt receiver

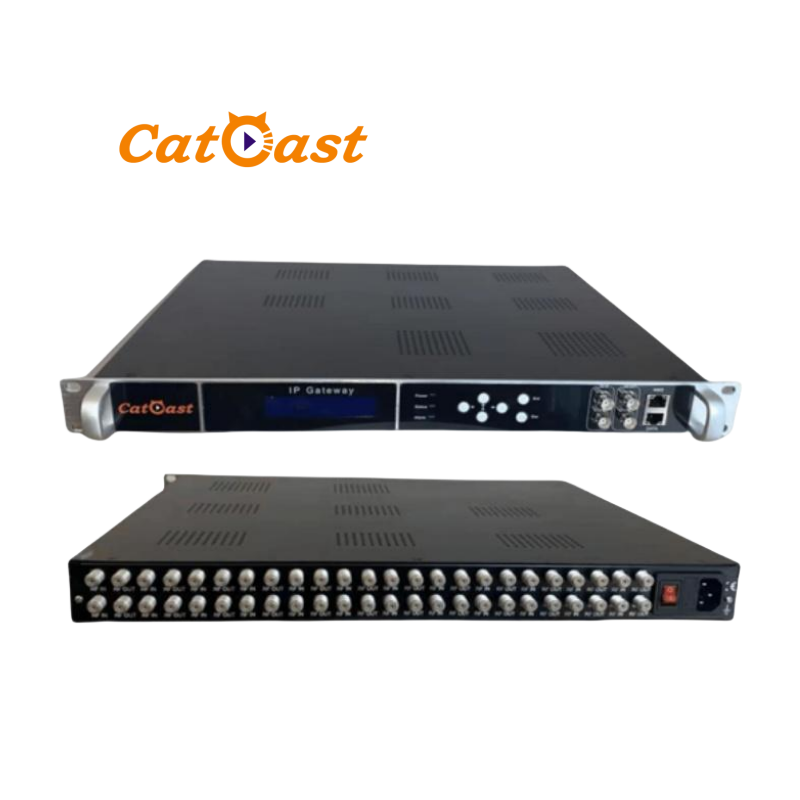

24 Channels digital FTA Tuner ISDBT Receiver multiplexed hardware ISDBT Tuner Receiver
Product Description
Summary
HPR3624D is professional high integration ISDBT Receiver which includes tuner demodulation, multiplexing. It supports
4/8/12/16/20/24 tuner input ， support different types of tuner ( DVB-S/S2、DVB-C、DVB-T、 ATSC、ISDBT) input, 1000M IP output, 1 MPTS output and 256 SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live broadcasting etc.
4/8/12/16/20/24 tuner input ， support different types of tuner ( DVB-S/S2、DVB-C、DVB-T、 ATSC、ISDBT) input, 1000M IP output, 1 MPTS output and 256 SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live broadcasting etc.
Key Features
* 4/8/12/16/20/24 tuner input; the tuner supports (DVB-S/S2,DVB-C,DVB-T/T2,ATSC,ISDBT)
* 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
* Support different types of tuner ( DVB-S/S2 、DVB-C、DVB-T、ATSC、ISDBT, etc. ) input, or mixed use ( e.g., 4 - way dvb - t and 4 -way ATSC input at the same time, making up 8 - way input )
* 2 ASI inputs
* The input program stream is multiplexed and packaged into TS stream and IP output, 1000M, UDP protocol
* 2 ASI Independent output (optional) as copy of 1MPTS
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting
* PID pass
* LCD、key function
* Support different types of tuner ( DVB-S/S2 、DVB-C、DVB-T、ATSC、ISDBT, etc. ) input, or mixed use ( e.g., 4 - way dvb - t and 4 -way ATSC input at the same time, making up 8 - way input )
* 2 ASI inputs
* The input program stream is multiplexed and packaged into TS stream and IP output, 1000M, UDP protocol
* 2 ASI Independent output (optional) as copy of 1MPTS
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting
* PID pass
* LCD、key function
* ISDBT Receiver
* Control via web management, and easy updates via web
* Control via web management, and easy updates via web
Specification
|
Input
|
4/8/12/16/20/24 tuner;
and the tuner supports (DVB-S/S2,DVB-C,DVB-T/T2,ATSC,ISDBT) |
|
|
|
|
2 ASI inputs
|
|
|
|
Output
|
2 ASI output (optional)
|
|
|
|
|
IP outpu（t 256 SPTS and1 MPTS）IP output over UDP and RTP protocol 1000M ethernet port
|
|
|
|
Multiplexing
|
Maximum PID
Remapping |
180 output pids per channel
|
|
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|
|
Accurate PCR adjusting
|
|
|
System function
|
Network management(WEB)
|
|
|
|
|
Chinese and English language
|
|
|
|
|
Ethernet software upgrade
|
|
|
|
Miscellaneous
|
Dimension
(W×L×H) |
482mm×480mm×45mm
|
|
|
|
Environment
|
0~45℃(work)；-20~80℃(storage)
|
|
|
|
Power
requirements |
AC100~240V，50/60Hz
|
|
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd
is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
