Quick Details
-
Voltage:
-
220v/380v/415v
-
Place of Origin:
-
China
-
Brand Name:
-
Maijin
-
Model Number:
-
PB37
-
Warranty:
-
1 year warranty
-
Product name:
-

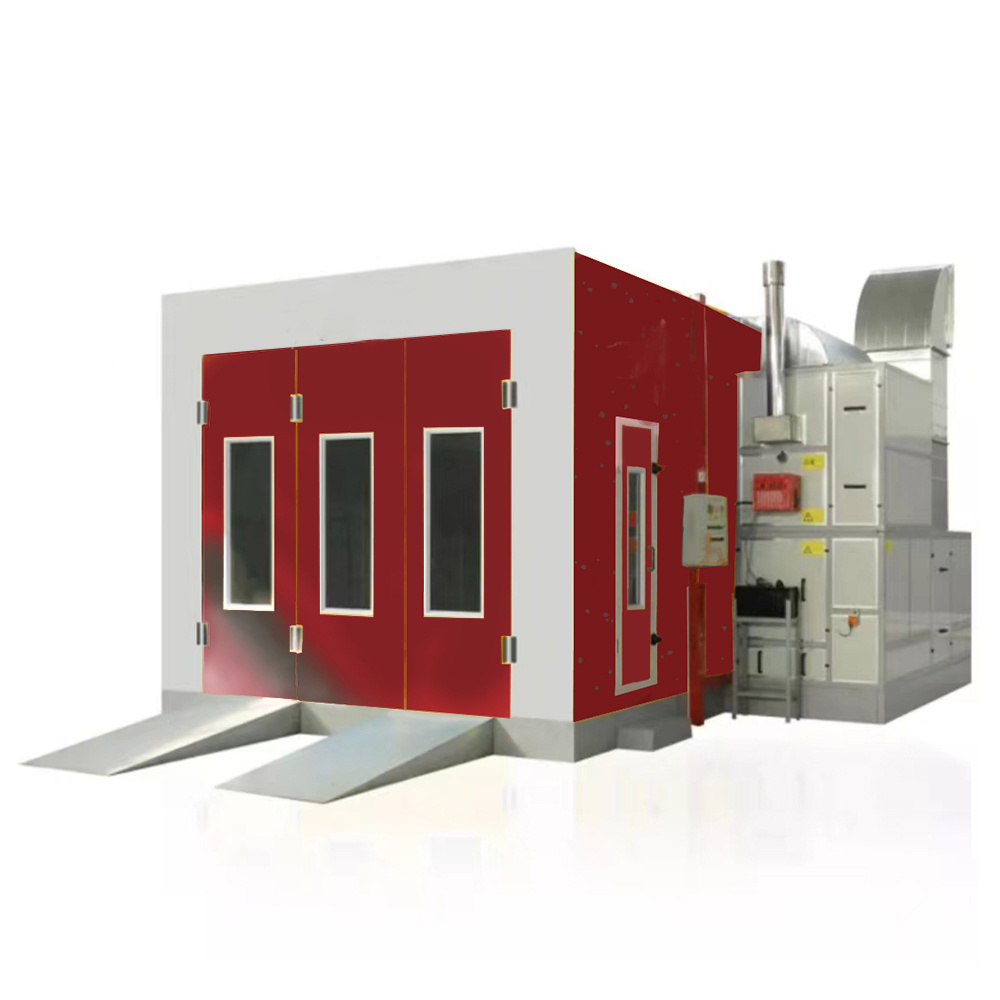

Spray Booth Paint Room
-
Usage:
-
Car Baking Spray Paint Booth
-
Certificate:
-
CE/ISO9001
-
Customize:
-
Avilable
-
Baking temperature:
-
Baking temperature
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Fuel consumption:
-
6-8L/vehicle
-
Ceiling light:
-
8units*4pcs=32pcs*24W LED Lights
-
Control system:
-
Standard Control System
-
Total power:
-
7 KW
Quick Details
-
Power:
-
7kw
-
External Size:
-
7000*5900*3400 (mm)
-
Internal Size:
-
6900*3900*2650 (mm)
-
Voltage:
-
220v/380v/415v
-
Place of Origin:
-
China
-
Brand Name:
-
Maijin
-
Model Number:
-
PB37
-
Warranty:
-
1 year warranty
-
Product name:
-
Spray Booth Paint Room
-
Usage:
-
Car Baking Spray Paint Booth
-
Certificate:
-
CE/ISO9001
-
Customize:
-
Avilable
-
Baking temperature:
-
Baking temperature
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Fuel consumption:
-
6-8L/vehicle
-
Ceiling light:
-
8units*4pcs=32pcs*24W LED Lights
-
Control system:
-
Standard Control System
-
Total power:
-
7 KW
Title goes here.
--Wall panel: sandwich style, 6=50mm, rock wool,polystyrene isavailable as required.
--Basement: steel structure, 3 rows of vein board and 2 rows ofgrids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover. 1pcs ofemergency door with pressure lock.
--Ramp: 2 pcs of vein board.--One unit of 7.5kw intake fan and one unit of 4kw exhaust fan ..
--4m straight exhaust ducts, one 90° bend, and one 60“ bend.4m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. riello G20 burner.
--Roof filter: 4 pcs of filter, mounted above support frame, whichis made of steel and powder coated.
--2 pcs of floor filter and 1 pcs of air mouth filter.--Upper light: 10sets, 4*40w per set.
--Control box: components made in china, overload, overheat phase-lacking protection, engine Y star-delta start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
Product Paramenters
|
Product name
|
Spray Paint Booth
|
|
|
|
|||
|
Model
|
PB37
|
|
|
|
|||
|
Motor Power
|
37 kw
|
|
|
|
|||
|
Voltage
|
220v/380v/415v
|
|
|
|
|||
|
Warranty
|
24 months
|
|
|
|
|||
|
Outer clamping rim
|
10"-24"
|
|
|
|
|||
|
Turning width
|
15" -16"
|
|
|
|
|||
|
Outside dimension
|
7000*5900*3400mm
|
|
|
|
|||
|
Inside dimension
|
6900*3900*2800mm
|
|
|
|
|||
