Automatic best soldering desoldering station DH A2 VS R490 bga rework station

Product Features

◆ Precise optical alignment system
① Color optical system with functions of split vision, two color separation, zoom in/out and micro-adjust, equipped with aberration detection device, with auto focus and software operation
② CCD camera amplify up to 200x, with top/down light brightness adjust function, mounting accuracy is within 0.01 mm

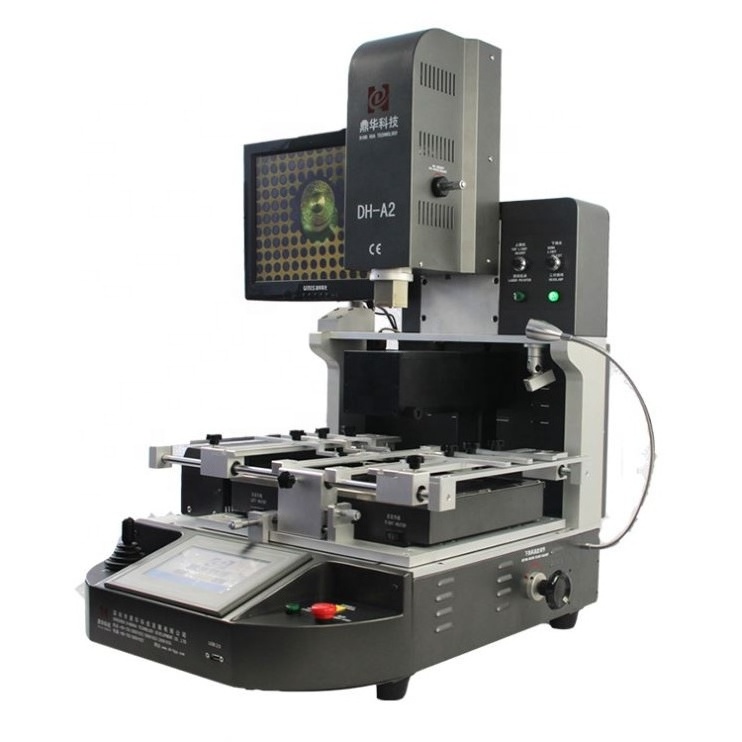

Automatic reballing machine stazione saldante professional DH-A2 bga rework station
◆ Advanced features
① Top hot air flow is adjustable, to meet the demand of any chips.
② Desoldering, mounting and soldering automatically.
③ Built-in infrared laser positioning, help fast positioning for PCB.
④ Top heating head and mounting head 2 in 1 design.

⑤ Mounting head with built-in pressure testing device, to protect the PCB from being crushed.
⑥ build-in vacuum in mounting head pick up BGA chip automatically after desoldering completed.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station

◆ Three independently controlled heaters
① top and bottom heaters are hot-air heating, the third is infrared preheating zone, the top and bottom heaters can set 8 segments rising temperature/constant time/temperature rising slope , can save tens of thousands of groups temperature curves.
② it can heat PCB board and bga chips at the same time. And the third IR heater can preheat the PCB board from bottom evenly, to avoid PCB from deformation during repair process. All three heaters can heat independently .
③ It uses k-type thermocouple closed-loop control and PID automatic temperature compensation system, together with PLC and temperature module to enable precise temperature deviation to ±2 degree centigrade.
④ The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station
◆ Multi-functional ergonomic system
① bottom heater can be adjusted up and down.
② Adopted all kinds of magnetic top and bottom nozzles, with 360° rotation, easy for installation and replacement, customized sizes are available.
③ Multi-functional PCB support shelf, can be moved along X axis, together with universal fixture and V-groove bracket, suitable for all kind of PCB positioning.
④ powerful cross-flow fan automatically cool the PCB board fast after desoldering or soldering completed, it can prevent the heaters from aging. Fan will be shut down automatically when the heaters temperature drops to normal temperature.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station
◆ Superior safety functions
Machines are CE certification guaranteed. It is equipped with emergency button. Also there is voice warning around 5 seconds before soldering/desoldering process complete. With automatic power-off protection device when abnormal accident happens, with a double over-heating protection control.

Smart PC(Brains of machine)

1.PLC system,human-machine interface with Touch screen for easy operation and high accuracy rework.
2.Manage the temperature profiles:setting,storage,application,analysis,debug.Up to 16-segments temperature control,100,000 groups storage for different BGA's rework temperature profile.
3.Control the machine.

Optical Alignment

Name: CCD Camera Lens

Brand: Panassonic
Origin: Japan
1.Effectively increase the accuracy of alignment and success rate of repairing.
2.Image dispayed on monitor screen.

Laser positioning automatic bga reballing machine for promotion

Built-in infrared laser positioning, help fast positioning for PCB board.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station

Three independent Heaters(3 Temp Zones)

1.Top Hot Air +Bottom Hot Air+Infrared preheating platform.The top and bottom can be moved upward/downward.
2.Make heating focusd and even.Effectively increase rework rate.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station

Manual & Automatic Mode

1.Manual:Joystic (①to right/left----camera images zoom in/out.② up/down ----top heater up/down)
2.Just press one botton to start soldering/desoldering/mounting process.

Laser positioning automatic bga reballing machine for promotion

Plus size infrared preheating zone, covered with steel mesh

Automatic reballing machine stazione saldante professional DH-A2 bga rework station

Nozzel with reflow vent.

1.All the nozzles are made of anti-rust Titanium alloy.
2.Top nozzle has reflow vent to prevent the damage to surrouding
components.
3.Magnetic nozzle.Easy to install/adjust/change.

Temperature control.

1.K-type thermocouple + closed loop + PID auto temperature compensation make temperature accuracy within 1º Celsius.
2.Effectively increase success rate of rework.

Automatic reballing machine stazione saldante professional DH-A2 bga rework station
