2HP Heat Resistant High Pressure Vacuum Blower for Desiccant Dryers

GOORUI side channel blower/ring blower/ regenerative blower/ vacuum pump/ air compressor

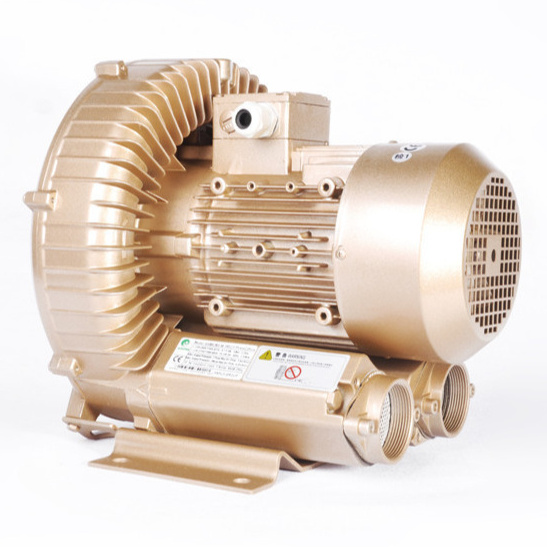

Product image :

Technical parameter of model :

Model	Single	Frequency	Rated	Voltage	Rated	Max	Rated	Rated	Sound	Weight
	Double		Output		Current	Airflow	Vacuum	Pressure
	Stage	Hz	kW	V	A	m3/h	mbar	mbar	dB(A)	Kg
GHBH 002 34 1R7	Single	50	1.6	200-240/345-415Y	8.5/4.9Y	318	-160	150	69	26
		60	2.1	220-275/380-480Y	8.8/5.5Y	376	-160	150	72

Blower working curve:

Blower principle:

Air gets-in through the inlet (1), then enters the side channel (2), now the high-speed-circling impeller will push the air to run after its direction.

Meanwhile, centrifugal makes the air running outward,which will give it higher speed and bigger pressure. With operation of impeller,

the air will be speeded and  pressed again and again. When the pressure were higher than outside,the air will get out from the outlet (4).

Blower applications :

• Agriculture(Fish pond and aeration tanks)
• Beverage(bottle drying)
• Bio fuels/bio-gas system
• Food and vegetable processing
• Medical and Health service(Dental cart and dental vacuum)
• Package (Air knives blown-off / Labeling/Drying)
• Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
• Printing
• Paper and pulp/ paper converting
• Textile industry
• Transportation/Loading/Unloading(Pneumatic conveying/material handling)
• Water treatment/sewage treatment
• Woodworking (CNC Routing/bulk handling)

Main features of Goorui blowers:

Oil free and low noise

No routine maintenance with stable performance

Easy install and no vibration

SKF , NSK , ORS bearing adapt to ensure long-life time

Either used for suction ( vacuum ) or discharge ( pressure )

Insulation class: F,   Protection class: IP54

Wide voltage & frequency range 28-60hz

Air flow range: 45 - 2330 m3/h (50/60 Hz)

Pressure range: 80 mbar to 1040 mbar

Vacuum range: -70mbar to -730 mbar

Insulation class: F/H

Protection class: IP54/IP55

How we ensure the quality:

1. All the blowers are equipped with 64 core technologies and 61 national invention patent.

2. All non-standard components are processed by high precision CNC router and tested by three-coordinate measuring facilities.

3. All the blowers are inspected by the most advanced checkout equipment.

Blower package :

Delivery terms :

CIF  by sea or air freight terms

FOB SHENZHEN/GUANGZHOU

EX-WORK TERMS

DDP/DDU

DHL/FEDEX/UPS courier door to door

Other delivery terms are negotiable.

Delivery time:

In stock blower: 2-3days after payment

Out of stock blower:7-15days after order confirmed.

Special blower need to check specific

We keep  more than 1000sets blower regularly  in stock to satisfy  your fast delivery demands.

• 12 months warranty and long-term marketing, after-sale support.
• Professional engineer will help to recommend the most suitable models for your special applications.
• OEM service available.
