Quick Details
-
Feature:
-
Water Soluble
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUNSING
-
Model Number:
-
DS8614
-
Color:
-
transparent
-
Melt point:
-
90-100°C
-
Melt Flow Index:
-
12±7g/10min ; Condition:ASTMD1238-04
-
hot pressing temperature:
-
120℃-150℃
-
thickness(mm):
-
0.05mm-0.15mm
-
width(mm):
-
1380mm
-
certification:
-
REACH,ROHS,ISO9001
-
physical form:
-
solid film with release paper
-
Washing/time:
-
40°C /72H
-
Key words:
-
thermoplastic polyurethane film
Quick Details
-
Material:
-
Polyimide
-
Type:
-
Other
-
Use:
-
Packaging Film
-
Feature:
-
Water Soluble
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUNSING
-
Model Number:
-
DS8614
-
Color:
-
transparent
-
Melt point:
-
90-100°C
-
Melt Flow Index:
-
12±7g/10min ; Condition:ASTMD1238-04
-
hot pressing temperature:
-
120℃-150℃
-
thickness(mm):
-
0.05mm-0.15mm
-
width(mm):
-
1380mm
-
certification:
-
REACH,ROHS,ISO9001
-
physical form:
-
solid film with release paper
-
Washing/time:
-
40°C /72H
-
Key words:
-
thermoplastic polyurethane film

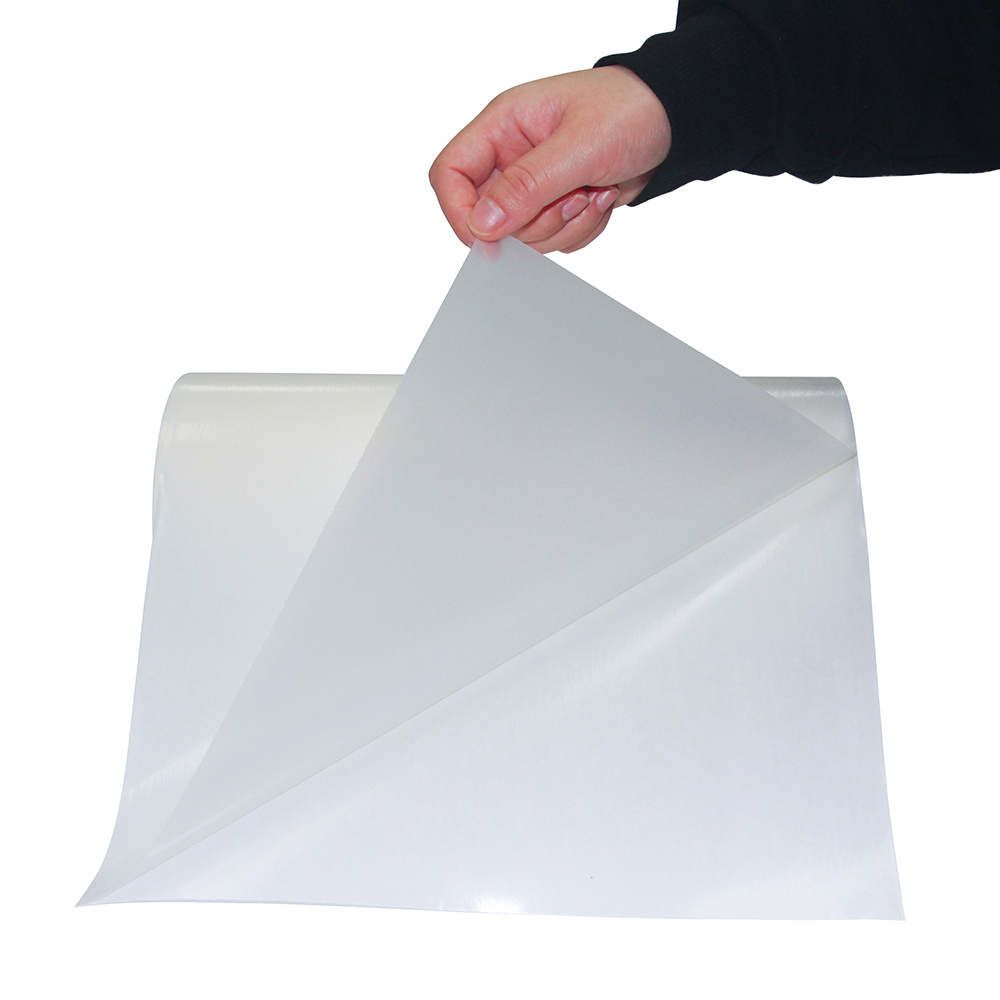

Thermoplastic TPU Hot Melt Polyurethane Film For Laminating Fabric
P roduct : DS8614
TPU Film
Desc ri ption:
This product is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
TPU Film
Application s :
DS 8614 development direction and application is for clothing, shoes, t extile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
Composition:
Polyurethane
Physical C haracteristics:
|
Colo r |
transparent |
Release L iner |
Glassine release paper |
|
Density |
1. 18 ±0.02 g/cm 3 |
Thickness |
0.0125mm-1mm |
|
Opening Time |
8 min |
Width |
5mm-1500mm |
|
Hardness |
88 ± 3 Shore A |
Conventional thickness |
0.03mm, 0.0 5mm ,0. 08mm,0.10mm, 0.12mm |
|
Melt Flow Index |
20 ± 5 g/10min; Condition: ASTMD1238-04 |
Conventional Width |
1380mm |
|
Rheology Temperature |
90 °C -100 °C |
Length |
100 yard s |
|
Operating T emperature
|
120 °C -1 50 °C |
Finished P roducts specification |
1380mm*100yard s /roll |
Recommended Bonding Conditions:
|
Flat Press |
Second Flat Press |
|
Machine Setting: 110 ℃ -1 30 ℃ |
Machine Setting: 120 ℃ -1 50 ℃ |
|
Dwell Time: 5-15 seconds |
Dwell Time: 8-25seconds |
|
Pressure: 0.3-0.6mpa |
Pressure: 0.3-0.6mpa |
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchantability and fitness for a particular purpose. The following is made in lieu of any such warranties. Tunsing believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Buyer Feedback
TPU Film
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) by Air, and 30-40 days by Sea.
TPU Film
Q 1 ) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products ,
Q 2 ) .Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10 years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know ,
Q 3 ) .How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc ,
Q 4 ) . Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation. , then you will have more confidence in our product quality and service ,
Q 5 ) . How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7 - 20 days(depends on order quantity) ,
Q 6 ) . How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
