6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Huanhang
-
Model Number:
-
HHM-XMJ-08
-
Wire Gauge:
-
2.0mm-4.0mm, 2-8mm
-
Brand Name::
-
Huanhang
-
Color:
-
Silver
-
Width:
-
1m,1.2m,1.5m,2m or as your request
-
Application::
-
Building formwork
-
Hole Shape::
-
rectangle
-
Usage::
-
building formwork mesh
-
Length:
-
2-6m
-
Product name:
-
welded wire mesh panel
Quick Details
-
Material:
-
stainless steel
-
Type:
-
Welded Mesh
-
Application:
-
Construction Wire Mesh
-
Place of Origin:
-
China
-
Brand Name:
-
Huanhang
-
Model Number:
-
HHM-XMJ-08
-
Wire Gauge:
-
2.0mm-4.0mm, 2-8mm
-
Brand Name::
-
Huanhang
-
Color:
-
Silver
-
Width:
-
1m,1.2m,1.5m,2m or as your request
-
Application::
-
Building formwork
-
Hole Shape::
-
rectangle
-
Usage::
-
building formwork mesh
-
Length:
-
2-6m
-
Product name:
-
welded wire mesh panel

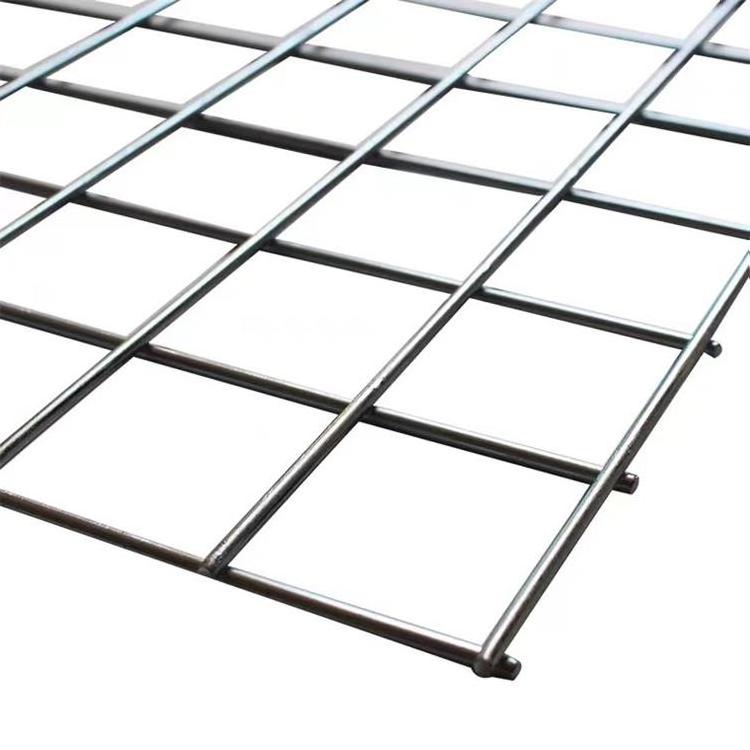

Product Description
Title goes here.
01 LOW MAINTENANCE
Welded mesh panels has thicker wire diameter and largeropening sizes for high security applications, such as prisonfencing,
factory fencing and other site security fencing
02 HIGH RELIABILITY
Welded wire mesh panels enjoy such properties as corro-sion resistance, aging resistance, sunshine resistance andweather
resistance.
resistance.
03 EXTENSIVE USE
welded wire mesh panels not only have long service lifebut also have beautiful appearance. So welded wire meshpanels can be used
in industry, agriculture, factory, animalcages, public places and other areas.
in industry, agriculture, factory, animalcages, public places and other areas.
04 SURFACETREATMENT
Welded wire Mesh panel is made of low carbon steel withgalvanized or Pvc coating surface and stainless steelwires.All of them has
excellent corrosion resistance per-formance and durablelife.
excellent corrosion resistance per-formance and durablelife.
Specification
Materials: 304, 316, 316L stainless steel wire.
Specification table
Specification table
|
Stainless Steel Welded Wire Mesh Roll
|
|
|
||
|
Aperture Size
|
Wire Gauge
|
Width (Feet)
|
||
|
1/4”x1/4”
|
BWG23
|
2-7
|
||
|
3/8”x3/8”
|
BWG19,20,21,22
|
2-7
|
||
|
1/2”x1/2”
|
BWG16,17,18,19,20,21,22,23,24
|
2-7
|
||
|
3/4”x3/4”
|
BWG16,17,18,19,20,21,22
|
2-7
|
||
|
1”x1/2”
|
BWG16,17,18,19
|
2-7
|
||
|
1”x1”
|
BWG14,15,16,17,18,19,20,21
|
2-7
|
||
|
1”x2”
|
BWG14,15,16
|
2-7
|
||
|
2”x2”
|
BWG14,15,16,18
|
2-7
|
||
|
2”x2”
|
BWG10,11,12
|
2-8.2
|
||
|
Stainless steel welded wire mesh panel
|
|
|
||
|
Aperture
|
Wire Gauge
|
Width(Feet)
|
||
|
2”x3”
|
BWG8,10,12
|
2-8.2
|
||
|
2”x4”
|
BWG6,8,11,12
|
2-8.2
|
||
|
3”x3”
|
BWG6,8,10,11
|
2-8.2
|
||
|
4”x4”
|
BWG3,4,5,6,8,9,10
|
2-8.2
|
||
|
4”x6”
|
BWG3,4,5,6,8,9,10
|
2-8.2
|
||
|
6”x6”
|
BWG2,4,6,7,8,9
|
2-8.2
|
||
