Quick Details
-
Brand Name:
-
Triumph Load
-
Model Number:
-
100kw dummy load bank
-
Color:
-
according to customers'prefer
-
Rating Voltage/Frequency:
-
AC 400V 50HZ
-
PF(Power Factor):
-
1
-
Load Tolerance(overall):
-
±3%
-
Control Power:
-
AC85-240v/ 50Hz/60Hz
-
Dimension:
-
About 540mm*292mm*604mm
-
Weight:
-
About 30kgs
-
Ambient Temperature:
-
-20℃~+50℃
-
PLC:
-
Siemens
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
100kW
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Triumph Load
-
Model Number:
-
100kw dummy load bank
-
Color:
-
according to customers'prefer
-
Rating Voltage/Frequency:
-
AC 400V 50HZ
-
PF(Power Factor):
-
1
-
Load Tolerance(overall):
-
±3%
-
Control Power:
-
AC85-240v/ 50Hz/60Hz
-
Dimension:
-
About 540mm*292mm*604mm
-
Weight:
-
About 30kgs
-
Ambient Temperature:
-
-20℃~+50℃
-
PLC:
-
Siemens

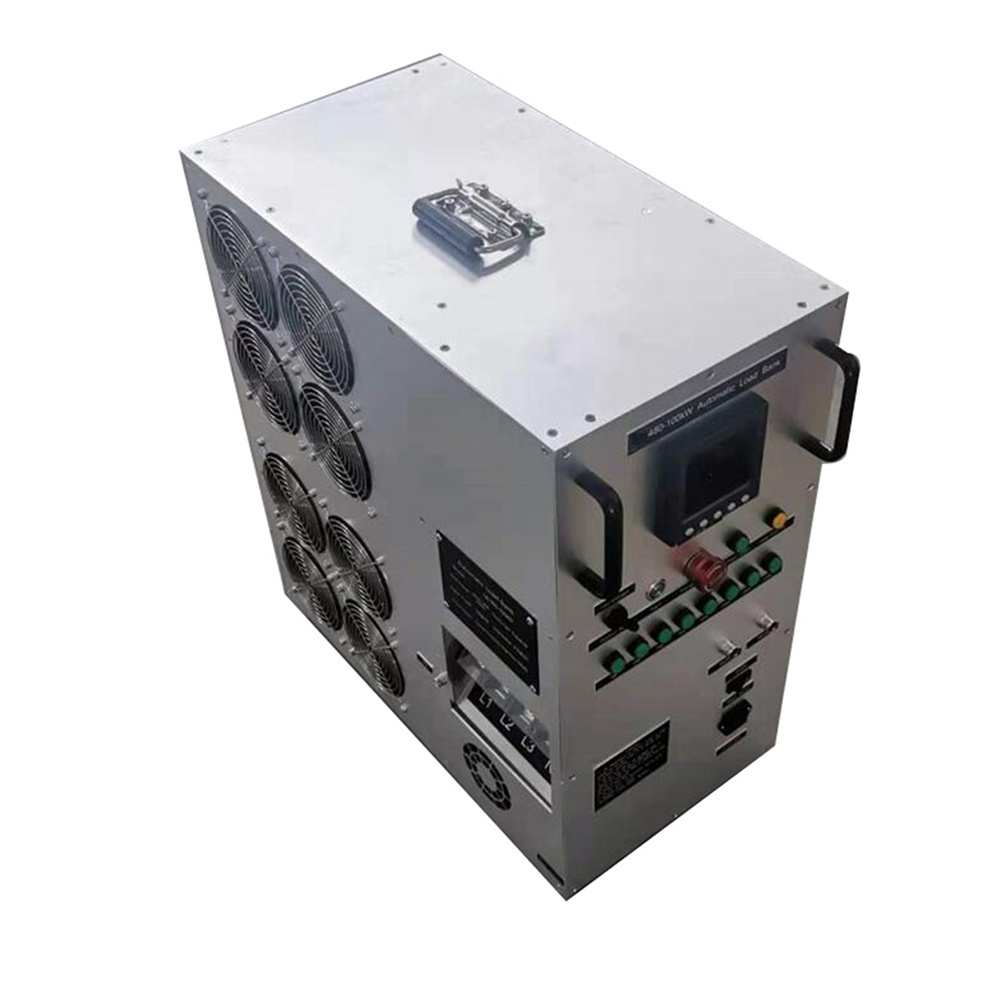

Load Bank 100KW Load Bank For Sale Used Load Banks
Introduction
AC 40 0-100kW Automatic Load Bank is mainly used to test the performance of generator. It can provide scientific monitor measure for generating set equipment.
Specification
|
AC 40 0-100kW Automatic Load Bank |
|
|
Rating Voltage/Frequency |
400 VAC/50Hz/60hz, 3 phase 4 wire, line voltage 400 V, phase voltage 2 3 0V |
|
Rated Power |
Resistive load: 100kW |
|
Installed Capacity |
Resistive load: 100kW |
|
Load Step |
1,2,2,5,10,10,20,50kW, min step load: 1kW |
|
PF(Power Factor) |
1 |
|
Load Tolerance (each step) |
±5% |
|
Load Tolerance(overall) |
±3% |
|
Display Precision |
0.5 class |
|
Control Power |
Single voltage 85-240VAC 50Hz/60hz |
|
Wire Connection |
Load power supply input——Connector-bar Control power supply input—— Quick plug |
|
Insulation |
F |
|
Duty cycle |
Continuous |
|
Transportation |
Hoisting, there are lifting lugs on top of casing and wheel castors at bottom |
|
Casing Color |
Grey(RAL7035)or as you required |
|
Equipment Dimension |
About 540mm*292mm*604mm |
|
Weight |
About 30kgs |
|
Operating Environment Parameter |
|
|
Workplace |
indoor and outdoor |
|
Ambient Temperature |
-20℃~+50℃ |
|
Relative Humidity |
≤95% |
|
Altitude |
≤2500 meter |
|
Atmospheric Pressure |
86~106kPa |
|
Brands of Main Components |
|
|
Contactor |
Schneider |
|
Fuse |
Miro |
|
PLC |
Siemens |
|
Data processing software |
Kaixiang(self-developed) |
|
Alloy Resistance |
Kaixiang(self-developed) |
