Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
haloauth
-
Model Number:
-
GGD
-
Material:
-
By product
-
Product Name:
-
low Voltage Switchgear
-
Keyword:
-
low Voltage Switchgear GGD
-
Rated current:
-
630-4000A
-
Application:
-
Power Plant
-
Warranty:
-
12 Months
-
Protection Level:
-
IP20-IP40
-
Package:
-
Wooden Packing
-
Peak withstand current:
-
30KA 60KA 1025KA
-
Rated breaking current:
-
15KA 30KA 50KA
Quick Details
-
Voltage:
-
380
-
Current:
-
3150
-
Size:
-
800
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
haloauth
-
Model Number:
-
GGD
-
Material:
-
By product
-
Product Name:
-
low Voltage Switchgear
-
Keyword:
-
low Voltage Switchgear GGD
-
Rated current:
-
630-4000A
-
Application:
-
Power Plant
-
Warranty:
-
12 Months
-
Protection Level:
-
IP20-IP40
-
Package:
-
Wooden Packing
-
Peak withstand current:
-
30KA 60KA 1025KA
-
Rated breaking current:
-
15KA 30KA 50KA

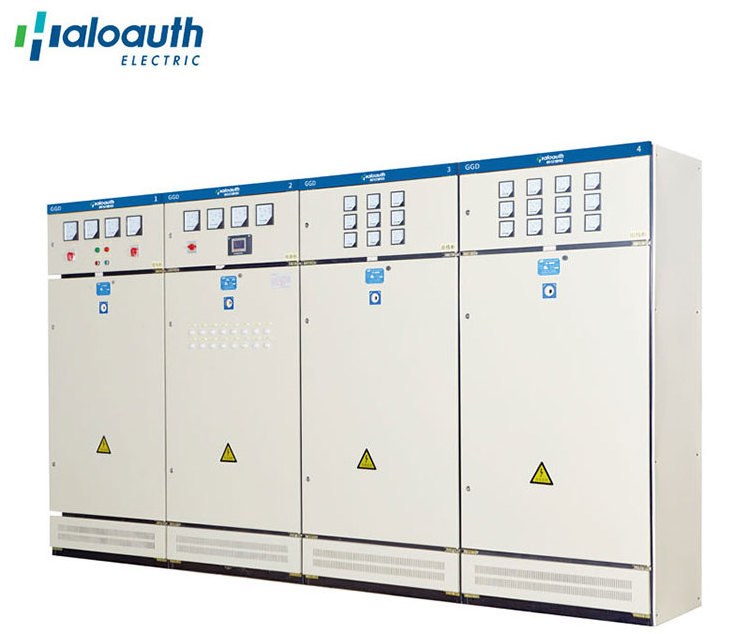

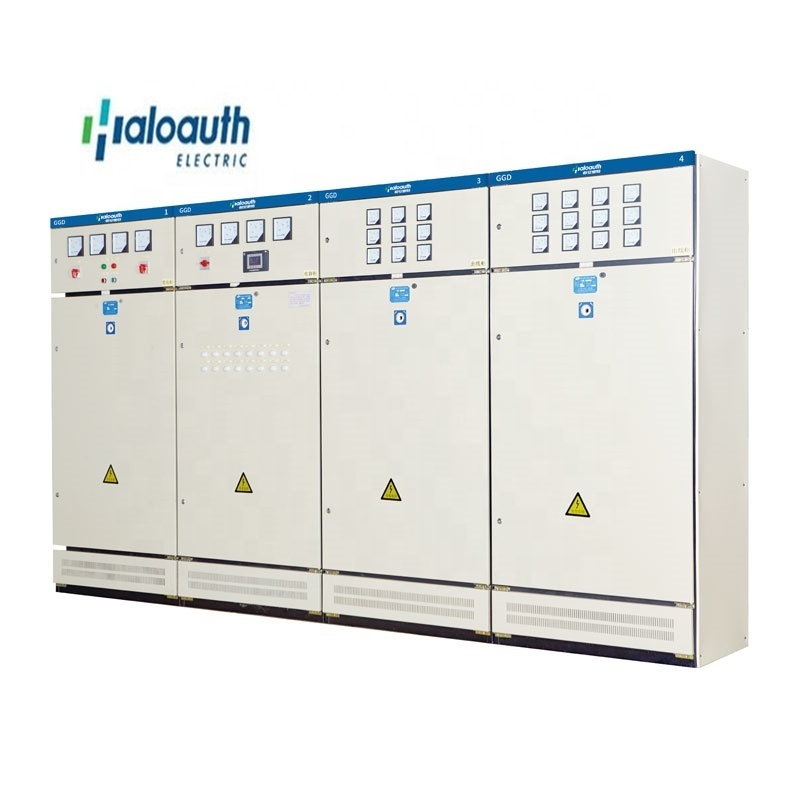

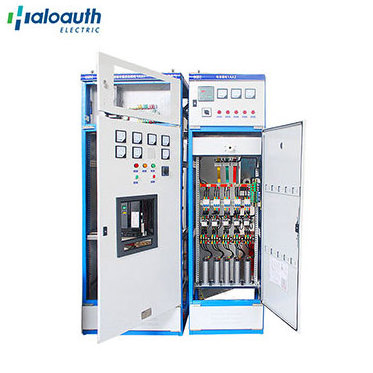

Product Overview
GGD type AC low voltage power distribution cabinet is suitable for power users such as power plants, substations, industrial enterprises and so on as AC 50Hz, rated working voltage 380v, rated working current to 3150A power distribution system, as power, light-ing and power distribution equipment power conversion, distribution and control.
The product has high breaking capacity and rated short-term withstand current up to 50kA. Flexible circuit scheme, convenient combination, strong practicability, novel structure and other characteristics. This product is one of the representative products of assembled and fixed panel switch cabinets in China.
Technical Parameter
|

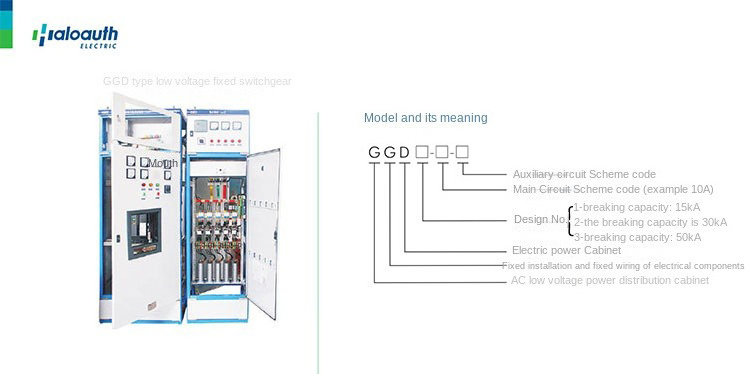

model
|
Rated working voltage AC (V)
|
Rated insulation voltage AC (V)
|
Rated working current (A)
|
Rated segmented current (kA)
|
Peak withstand current (kA)
|
|
GGD1
|
380
|
660
|
400 600 630 1000
|
15
|
30
|
|
GGD2
|
|
|
1000 1500 1600
|
30
|
63
|
|
GGD3
|
|
|
2000 2500 3150
|
50
|
105
|
