curling,Dimethyl silicone oil 201,Food Grade), roll bottom auto feeding and bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling, cup discharging, collection.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Gawang Machine
-
Voltage:
-
3 phase 380v
-
Power:
-
4.8kw
-
Dimension(L*W*H):
-
2700mm*1300mm*1600mm
-
Weight:
-
1500 kg
-
Type:
-
Double Wall Ripple Coffee Paper Cup Machine
-
Material:
-
150~400gsm PE coated paper
-
Cup Bottom Knurling:
-
2side PE paper by cool device Knurling
-
Suitable:
-
Single & Double side PE Coated
-
Cup Side Welding:
-
Ultrasonic
-
Capacity:
-
45-55 pcs/min
-
Cup Bottom Heating:
-
Hot Air
-
Cup size:
-
3~12oz
-
Total Power:
-
6KW
-
Finished Products:
-
Paper Cup Paper Bowl
Quick Details
-
Production Capacity:
-
80cups/min
-
Processing Type:
-
Paper Cup Making Machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gawang Machine
-
Voltage:
-
3 phase 380v
-
Power:
-
4.8kw
-
Dimension(L*W*H):
-
2700mm*1300mm*1600mm
-
Weight:
-
1500 kg
-
Type:
-
Double Wall Ripple Coffee Paper Cup Machine
-
Material:
-
150~400gsm PE coated paper
-
Cup Bottom Knurling:
-
2side PE paper by cool device Knurling
-
Suitable:
-
Single & Double side PE Coated
-
Cup Side Welding:
-
Ultrasonic
-
Capacity:
-
45-55 pcs/min
-
Cup Bottom Heating:
-
Hot Air
-
Cup size:
-
3~12oz
-
Total Power:
-
6KW
-
Finished Products:
-
Paper Cup Paper Bowl
Products Description
Description

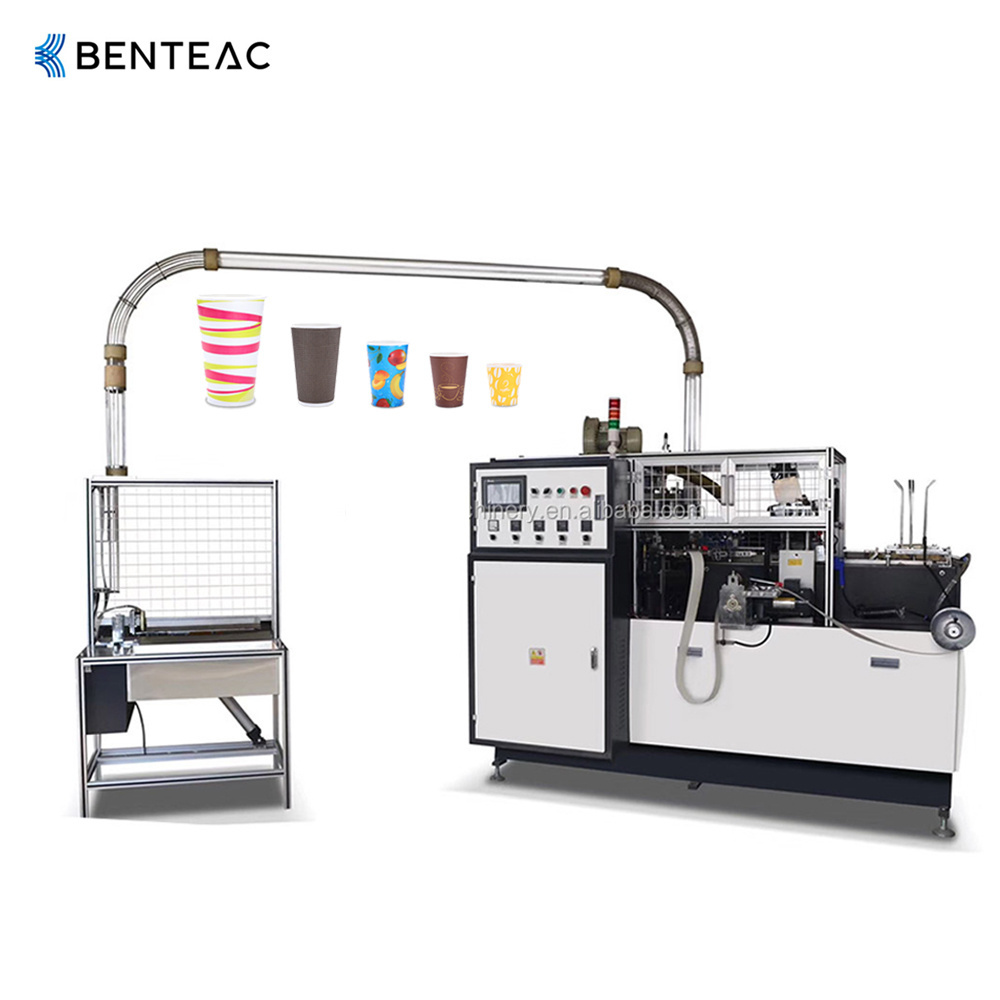

It makes paper cups after running a whole procedure of automatic pre-printed cup-fan-paper feeding, cup-side-body welding(heater or ultrasonic), silicone-oil lubricating(for top
|
Specification of paper cup
|
3~16oz
|
|
Output
|
65-85pcs/min
|
|
Main motor power
|
2.2kw
|
|
Heating power
|
8kw
|
|
Installed power
|
15kw
|
|
Air Pressure Request
|
0.4m3/min, 0.5Mpa
|
|
Applicable raw paper
|
190~350g/m2(single/double-sided PE coated paper）
|
|
Machine weight:
|
3100kg
|
Overall frame structure
The overall design is a box structure with welded ribs on the sides. The spray lubrication system is used to reduce wear and dissipate heat effectively, so that the machine has a longer life and more stable operation.
Machine Highlights
1. Different from ordinary paper cup machine, this model adopts full-body square steel structure, which is not more compact and stable under the condition of high-speed operation.
2.The main motor uses a gear reducer motor, using imported bearings NSK.
3.The use of fully automatic closed lubrication system, without the need for manual oil lubrication, can ensure that the machine runs for a long time without interruption at high speed.
4. Parts and components are produced in a standardized manner with strong versatility and good interdependence performance, which is convenient for equipment maintenance.
Mechanical quality assurance
1. All moving parts on the table are easily accessible, which is convenient for daily cleaning and maintenance.
2. All the moving parts under the countertop are shower-type lubricated and replaced with the specified lubricating oil every 4 to 6 months.
Whole line of making paper cups, Paper Cup Making Line
1.PE Coated Paper:
1.1One & Two Side PE Coated Paper (roll & sheet),
1.2Printed and Punched cup-fan blanks (Cost base on size, thickness, print color),
2.Printing Machine (Printer) : print logo,
2.1 4-color GW-YS-850 Flexo print machine (Roll paper print),
2.2 6-color GW-YS-850 Flexo print machine (Roll paper print),
3. Die cutting machine, cut the printed paper to cup-fan blank,
3.1 GW-DC-750 Reel Die Cutting Machine,(One ROW, Max. 750x270mm cut),
3.2 GW--DC-930 Reel Die Cutting Machine,(3-ROW, Max. 900x510mm cut),
3.3 Sheet Paper Die Cutting Machine (ML-930, semi automatic hand machine)
4. Paper Cups Making & Forming Machines, make the cups,
5. Double Wall Paper Cup Machine,
6. Cup Plastic Lid Forming Machine.
