Quick Details
-
Brand:
-
AOTE
-
weight:
-
2000 kg
-
Certification:
-
CE ISO9001, CE ISO9001
-
Size:
-
4900*1900*2400 mm
-
Material:
-
Plastic
-
power:
-
8KW
-
Model:
-
SZFM-1200
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
paper laminating machine
-
Keyword:
-
paper laminating machine
-
Brand:
-
AOTE
-
weight:
-
2000 kg
-
Certification:
-
CE ISO9001, CE ISO9001
-
Size:
-
4900*1900*2400 mm
-
Material:
-
Plastic
-
power:
-
8KW
-
Model:
-
SZFM-1200
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
| Hot sale glossy lamination machine automatic waterbased glue cold paper laminating machine bopp film coating machine |
Introduction:

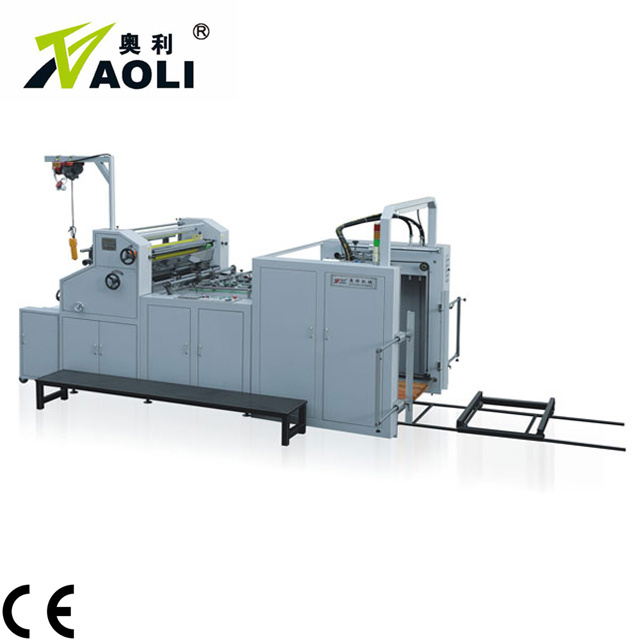

SZFM-1200 Automatic Waterbased Cold Laminating Machine is designed for cold waterbased glue lamination , speed up to 100m/min, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, easy to operate.
Configuration&Functions:
1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.
2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.
4. Immerging Coating System : Adopts immerging coating method, can save glue consumption and easy to control coating amount.
5. Heating Lamps : Equipped with heating lamps, ensure that the machine can work in cold weather.
6. Perforation Knife : Equipped with high accuracy perforation knife, cooperate with our pneumatic differential pull and separating device to cut sheets perfectly.
7. Rewind to Roll : After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.
8. Anti- curvature Delivery Platform: Especially designed for thin paper, avoid paper curvature.
|
Main technical parameter |
|
Model |
SZFM-1200 |
|
Max.Paper Size |
1000X1150mm |
|
Min.Paper Size |
285X350mm |
|
Paper Thickness |
100-500gsm |
|
Film Thickness |
8~25 micron |
|
Max. Speed |
100m/min |
|
Voltge |
380V 50Hz |
|
Total Power |
8KW |
|
Working Power |
3~5KW |
|
Lap Accuracy |
±2mm |
|
Coating Glue Amount |
3~8g/m^2 |
|
Hight of Feeder Pile |
1000mm |
|
Dimension (L*W*H) |
4900×2000×2100 mm |
|
Wood Box Dimension (L*W*H) |
1.1820×2050×2200 mm(FEEDER) 2.2000×2050×1900 mm(LAMINATING PART) |
|
Total Weight |
2000 kg |
|
Main Parts |
|
PLC and touch screen |
Chinese Taiwan Weinview |
|
Transducer |
China Kewo |
|
Programming controller |
Chinese Taiwan Delta |
|
Servomotor |
Chinese Taiwan Delta |
|
Ac contactor |
Frence schneider |
|
relay |
Frence schneider |
|
Push button |
Frence schneider |
|
Automatic water-based Laminating machine picture Show |
1.
Feeder Part
Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min, smoothly without stop, obviously increase the efficience.
2. Delivery Platform
Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, anti-curvature device can deliver sheets in high speed without curvature.
3. Lamination Main Part
Adopts Immerging coating system with rubber coating roller, can coat glue even and save much glue.
Rubber and high accuracy mirror laminating rollers ensure high laminating performance.
Equipped with High accuracy Perforation Knife, assist for cutting process.
4. Heating Lamps
Equipped with heating lamps to ensure glue can work in cold weather.
5. Rewinding Part
After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.
