Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
dongguang
-
Brand Name:
-
OEM&ODM
-
Model Number:
-
5840-31ZY
-
Torque:
-
10-20N.m
-
Product Name:
-

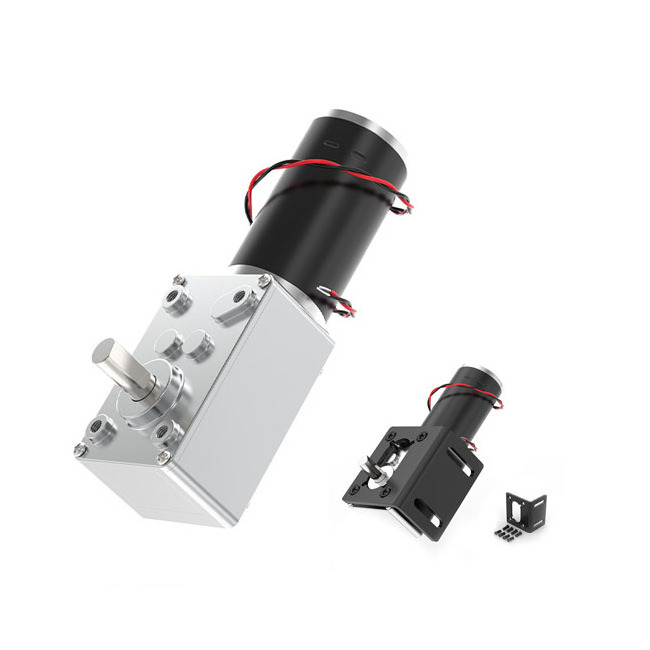

5840-31ZY dc worm gear motor
-
Rated Voltage:
-
dc 12/24v
-
Diameter of shaft:
-
6mm
-
Material:
-
metal steel
-
Noise:
-
<65dB
-
Weight:
-
300g
-
Color:
-
silver grey
-
Types of bearing:
-
sleeve and ball
-
Shape of shaft:
-
D round/round/flat/thread
-
Motor type:
-
brushless/brush
Quick Details
-
Speed(RPM):
-
80rpm
-
Continuous Current(A):
-
0.5AA
-
Efficiency:
-
IE 1
-
Warranty:
-
1year
-
Place of Origin:
-
dongguang
-
Brand Name:
-
OEM&ODM
-
Model Number:
-
5840-31ZY
-
Torque:
-
10-20N.m
-
Product Name:
-
5840-31ZY dc worm gear motor
-
Rated Voltage:
-
dc 12/24v
-
Diameter of shaft:
-
6mm
-
Material:
-
metal steel
-
Noise:
-
<65dB
-
Weight:
-
300g
-
Color:
-
silver grey
-
Types of bearing:
-
sleeve and ball
-
Shape of shaft:
-
D round/round/flat/thread
-
Motor type:
-
brushless/brush
Product Description
Properties
1.High-end materials to supply.
2.The sleeve and ball bearing to reduce the friction.
3.The shape and length of shaft can be customized even the thread.
4.The encoder and controller can be supplied.
5.Resistance corrosion and
anti-oxidation.
6.Right angle,90deg.
7.Self-locking performance.
|
Housing materials
|
Kristite
|
Backlashat no-loda
|
<0.5deg
|
|
|
bearingat output
|
|
sleeve bearings
|
ball bearings
|
|
|
radial load(10mm from flange)
|
|
<0.8kgf
|
1kgf
|
|
|
shafttaxial load
|
|
<0.6kgf
|
<0.6kgf
|
|
|
share press fit force max
|
|
<30kgf
|
<50kgf
|
|
|
radial play of share
|
|
<0.08mm
|
<0.05mm
|
|
|
thrust play of shaft
|
|
<0.2mm
|
<0.2mm
|
|
|
Reduction ratio
|
Rated tolerance torque
|
Rated tolerance torque
|
Efficiency
|
Turn-bioking force distance
|
weight(g) sleeve bearing
|
weight(g) ball bearings
|
|
1/17
|
5kgf-cm MAX
|
8.0kgf-cm
|
80%
|
9.0kgf-cm
|
310.0
|
315.0
|
|
1/30
|
7.0kgf-cm MAX
|
10.5kgf-cm
|
70%
|
11.9kgf-cm
|
310.0
|
315.0
|
|
1/50
|
8.5kgf-cm MAX
|
11.5kgf-cm
|
70%
|
14.45kgf-cm
|
310.0
|
315.0
|
|
1/82
|
9.5kgf-cm MAX
|
13.0kgf-cm
|
60%
|
15.2kgf-cm
|
325.0
|
325.0
|
|
1/104
|
11.0kgf-cm MAX
|
16.0kgf-cm
|
60%
|
17.6kgf-cm
|
325.0
|
325.0
|
|
1/150
|
15.5kgf-cm MAX
|
20.5kgf-cm
|
50%
|
23.25kgf-cm
|
335.0
|
335.0
|
|
1/200
|
17.5kgf-cm MAX
|
22.5kgf-cm
|
50%
|
26.25kgf-cm
|
335.0
|
335.0
|
|
1/250
|
18.5kgf-cm MAX
|
23.5kgf-cm
|
50%
|
27.75kgf-cm
|
335.0
|
335.0
|
|
1/300
|
20.5kgf-cm MAX
|
25.5kgf-cm
|
50%
|
30.75kgf-cm
|
335.0
|
335.0
|
|
1/406
|
25.0kgf-cm MAX
|
29.0kgf-cm
|
40%
|
36.1kgf-cm
|
375.0
|
375.0
|
|
1/505
|
30.0kgf-cm MAX
|
34.0kgf-cm
|
40%
|
46.2kgf-cm
|
375.0
|
375.0
|
|
1/996
|
40.0kgf-cm MAX
|
46.0kgf-cm
|
40%
|
61.6kgf-cm
|
375.0
|
375.0
|
More details:
1:pure copper core.
2.Powerful magnet.
3.High quality gear.
4.Metal shell.
2.Powerful magnet.
3.High quality gear.
4.Metal shell.
5.High torque shaft.
About the spare parts
1)voltage,current,speed and torque.
2)Shape of shaft:"D" "Round" "Flat" "Hexagon Axis" "Square axis".
3)Bearing:ball bearing.
4)Materials of shell:plastic and metal.
5)Tooth form:Spur gear,helical gear.
2)Shape of shaft:"D" "Round" "Flat" "Hexagon Axis" "Square axis".
3)Bearing:ball bearing.
4)Materials of shell:plastic and metal.
5)Tooth form:Spur gear,helical gear.
Actual Photos
Application
Application
:
it can be widely applied for Sweeper,smart trash,Electric screwdriver,Sphygmomanoneter...
