- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SAMET
-
Voltage:
-
380/customize
-
Dimension(L*W*H):
-
600*600*1060mm
-
Weight (KG):
-
240 KG
-
Product Name:
-
wood planer
-
Function:
-
Woodworking Planing
-
maximum planing width:
-
400mm
-
maximum planing length:
-
200mm
-
Spindle speed:
-
9800rmp
-
motor power:
-
3kw/380v
-
size:
-
500*600*1060
-
The processing thickness:
-
6-140mm
-
Minimum planing length:
-
3mm
-
weight:
-
238kg
Quick Details
-
Max.Planing Depth(mm):
-
95 mm
-
Max.Planing Width(mm):
-
400
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMET
-
Voltage:
-
380/customize
-
Dimension(L*W*H):
-
600*600*1060mm
-
Weight (KG):
-
240 KG
-
Product Name:
-
wood planer
-
Function:
-
Woodworking Planing
-
maximum planing width:
-
400mm
-
maximum planing length:
-
200mm
-
Spindle speed:
-
9800rmp
-
motor power:
-
3kw/380v
-
size:
-
500*600*1060
-
The processing thickness:
-
6-140mm
-
Minimum planing length:
-
3mm
-
weight:
-
238kg
|
Model
|
MB102
|
MB104
|
MB105
|
MB106
|
|
Max planing width
|
200mm
|
400mm
|
500mm
|
600mm
|
|
Max planing thickness
|
100mm
|
120mm
|
150mm
|
150mm
|
|
Minimum workpiece thickness
|
10mm
|
10mm
|
10mm
|
10mm
|
|
Feeding speed
|
13.5m/min
|
13.5m/min
|
13.5m/min
|
13.5m/min
|
|
Max planing amount
|
4mm
|
4mm
|
4mm
|
4mm
|
|
Knife shaft diameter
|
71mm
|
71mm
|
71mm
|
71mm
|
|
Cutter shaft speed
|
4200r/min
|
4200r/min
|
4200r/min
|
4200r/min
|
|
Motor
|
2.2kw
|
2.2kw
|
3kw
|
3kw
|
|
Dimensions
|
500*600*1060
|
760*630*1100mm
|
760*930*1270mm
|
800*1060*1270mm
|
|
Weight
|
200kgs
|
380kg
|
450kg
|
500kg
|

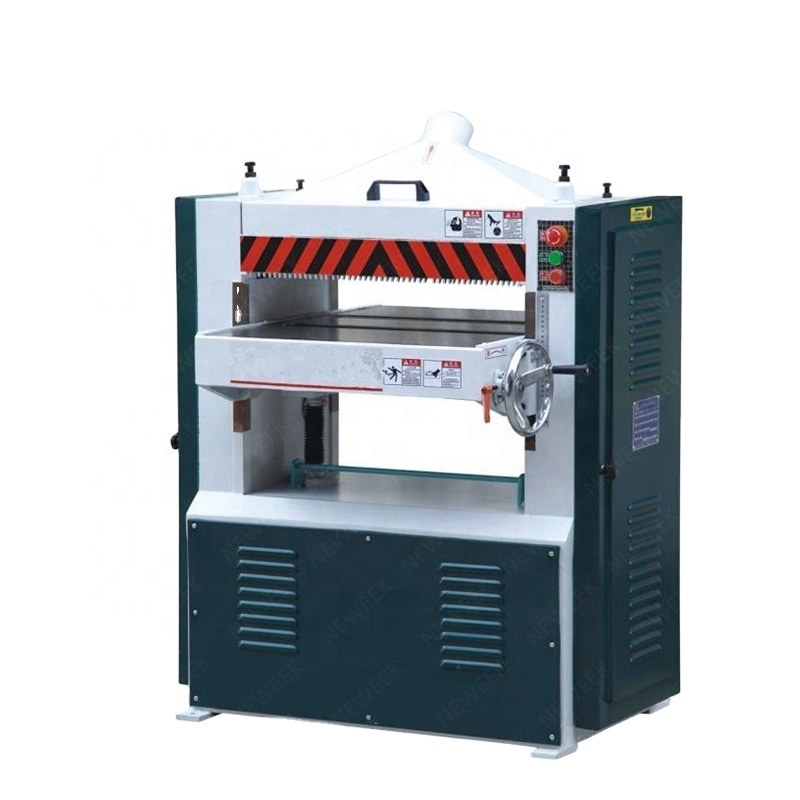

Precision planer creates smooth wood, high strength and durable
Three-page remote wheel with handle cast iron for accurate scale
Bilingual notes for emergency stop, start and stop Clear color
High-temperature paint baking process rust prevention and wear resistance Transmission force balance
The surface planer is used to process the rough rough rough surface of the workpiece into a smooth and flat plane, making this plane as the datum plane for subsequent processing.
The planer can also use the guide ruler to process the adjacent surface of the datum into an angle plane with the datum.
