Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hangzhou
-
Model Number:
-
Satellite Optical Receiver DT-SAT-R2040
-
Input Optical Power:
-
-18~+2 dBm
-
Optical Return Loss:
-
>45 dB
-
Optical Receiver Wavelength:
-
1200~1610 nm
-
Responsivity:
-
>0.85 A/W
-
Frequency Range:
-
40-2,600 MHz
-
Flatness(CATV):
-
±1 dB (40-870MHz)
-
Flatness (SAT-IF):
-
±2.5 dB (950-2,600MHz)
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hangzhou
-
Model Number:
-
Satellite Optical Receiver DT-SAT-R2040
-
Input Optical Power:
-
-18~+2 dBm
-
Optical Return Loss:
-
>45 dB
-
Optical Receiver Wavelength:
-
1200~1610 nm
-
Responsivity:
-
>0.85 A/W
-
Frequency Range:
-
40-2,600 MHz
-
Flatness(CATV):
-
±1 dB (40-870MHz)
-
Flatness (SAT-IF):
-
±2.5 dB (950-2,600MHz)
Product Description
2040 Satellite Optical Receiver (DT-SAT-R2040),Working Wavelength:1200~1610nm,Input Range:18~+2dBm,Optical
Return Loss:>45dB,Optical connector:SC/APC ,RF Operation bandwidth:40-2600MHz,Optical AGC range:-8~+2dBm,Power consumption:<2W,Power Input Voltage:D12V,Dimensions:50x88x22mm,Weight:140g,American Standard or European
Standard Power Plug is optional.
Return Loss:>45dB,Optical connector:SC/APC ,RF Operation bandwidth:40-2600MHz,Optical AGC range:-8~+2dBm,Power consumption:<2W,Power Input Voltage:D12V,Dimensions:50x88x22mm,Weight:140g,American Standard or European
Standard Power Plug is optional.
Features
⊙STATUS INDICATION
⊙Optical Connector: SC/APC
⊙ Good Linearity and Flatness
⊙Good RF Shielding Protection
⊙Model Number: ORN-2040SA
⊙Small and Cute Design for Easy Handling
⊙ Designed For FTTH (Fiber To The Home Network)
⊙Frequency range 40-2,600MHz For CATV And Sat-IF End-users
⊙Aluminum Profiles casing,excellent heat dissipation performance
⊙Wide optical power (-18dBm to +2dBm) AGC range(-8dBm to +2dBm).
⊙RF Output: +85dBuV per channel at 3.5% OMI (22dBmV modulation input)
⊙Optical Connector: SC/APC
⊙ Good Linearity and Flatness
⊙Good RF Shielding Protection
⊙Model Number: ORN-2040SA
⊙Small and Cute Design for Easy Handling
⊙ Designed For FTTH (Fiber To The Home Network)
⊙Frequency range 40-2,600MHz For CATV And Sat-IF End-users
⊙Aluminum Profiles casing,excellent heat dissipation performance
⊙Wide optical power (-18dBm to +2dBm) AGC range(-8dBm to +2dBm).
⊙RF Output: +85dBuV per channel at 3.5% OMI (22dBmV modulation input)

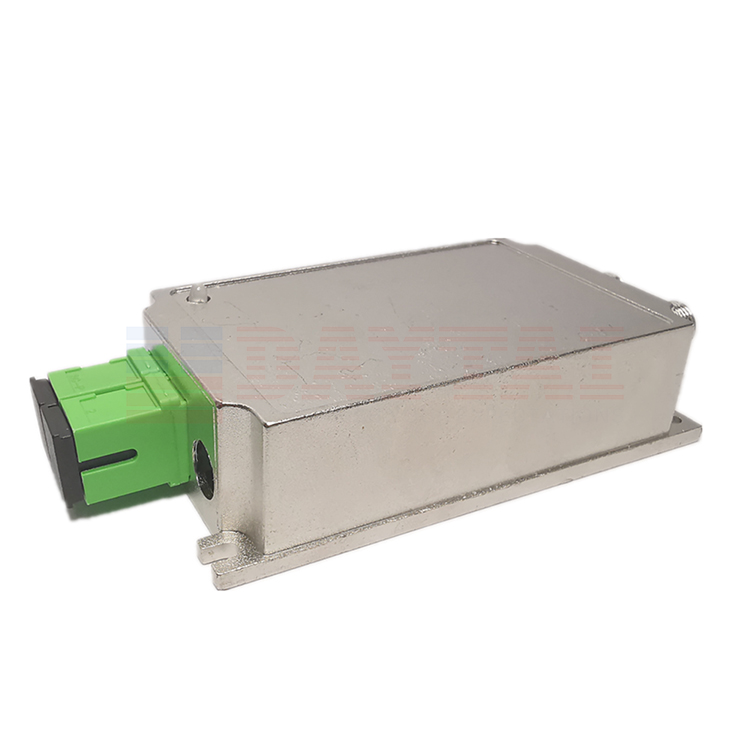

Detailed Images
|
Item
|
|
|
|
Specification
|
|
|
||||||
|
Number Item
|
|
|
Unit
|
|
Description
|
Remark
|
||||||
|
Customer Interface
|
|
|
|
|
|
|
||||||
|
1
|
RF Connector
|
|
|
|
75Ω"F" connector
|
|
||||||
|
2
|
Optical Connector
|
|
|
|
SC/APC
|
Can be Customized
|
||||||
|
Optical Parameter
|
|
|
|
|
|
|
||||||
|
3
|
Input Optical Power
|
|
dBm
|
|
-18~+2
|
|
||||||
|
4
|
Optical Return Loss
|
|
dB
|
|
>45
|
|
||||||
|
5
|
Optical Receiver Wavelength
|
|
nm
|
|
1200~1610
|
1550nm filter Optional
|
||||||
|
6
|
Respnsivity
|
|
A/W
|
|
>0.85
|
|
||||||
|
RF Parameter
|
|
|
|
|
|
|
||||||
|
7
|
Frequency Range
|
|
MHz
|
|
40-2,600
|
|
||||||
|
8
|
Flatness(CATV)
|
|
dB
|
|
±1
|
40-870MHz
|
||||||
|
9
|
Flatness (SAT-IF)
|
|
dB
|
|
±2.5
|
950-2,600MHz
|
||||||
|
10
|
Output Level RF1
|
|
dBuV
|
|
85
|
From AGC-8 to +2dBm
|
||||||
|
|
Output Level RF2
|
|
dBuV
|
|
NA
|
Two RF OutputOptional
|
||||||
|
11
|
Optical AGC Range
|
|
dBm
|
|
-8 ~ -+2
|
Optical Input AGC function
|
||||||
|
12
|
RF Gain Range
|
|
dB
|
|
20
|
RF Signal Input AGC function
|
||||||
|
13
|
Output Impedance
|
|
Ω
|
|
75
|
|
||||||
|
14
|
CATV Output Freq. Response
|
|
MHz
|
|
40 ~870
|
Test in Analog Signal
|
||||||
|
15
|
C/N
|
|
dB
|
|
42
|
-10dBm inpput,96NTSC,OMI+3.5%
|
||||||
|
16
|
CSO
|
|
dBc
|
|
57
|
|
||||||
|
17
|
CTB
|
|
dBc
|
|
57
|
|
||||||
|
18
|
CATV Output Freq. Response
|
|
MHz
|
|
950 ~2,600
|
Test in Digital Signal
|
||||||
|
19
|
MER
|
|
dB
|
|
38
|
-10dBm inpput,96NTSC
|
||||||
|
20
|
MER
|
|
dB
|
|
34
|
-15dBm inpput,96NTSC
|
||||||
|
21
|
MER
|
|
dB
|
|
28
|
-20dBm inpput,96NTSC
|
||||||
|
Other Parameter
|
|
|
|
|
|
|
||||||
|
22
|
Power Input Voltage
|
|
VDC
|
|
12V
|
|
||||||
|
23
|
Power Consumption
|
|
W
|
|
<2
|
|
||||||
|
24
|
Dimensions
|
|
mm
|
|
50× 88× 22
|
|
||||||
|
25
|
Net weight
|
|
KG
|
|
0.14
|
|
||||||
