Quick Details
-
Brand Name:
-
Shuguang brand
-
Voltage:
-
380V
-
Power:
-
37 KW
-
Dimension(L*W*H):
-
5.15*1.15*1.8m
-
Weight (KG):
-
1000
-
Name:
-
wood shaving machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
SG-145
-
Technology:
-
Turkey processing technology
-
Raw materials:
-
Sticks, twigs, branches, leftover material
-
Feed size:
-
Diameter less than 45cm,Length less than 140cm
-
Blade:
-
6 pieces
-
Speed:
-
4500r/min
-
Depth of wood shaving:
-
1-5 mm
-
Usage:
-
shaving board,poultry farm,biological energy
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
shaving board
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
Shuguang brand
-
Voltage:
-
380V
-
Power:
-
37 KW
-
Dimension(L*W*H):
-
5.15*1.15*1.8m
-
Weight (KG):
-
1000
-
Name:
-
wood shaving machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
SG-145
-
Technology:
-
Turkey processing technology
-
Raw materials:
-
Sticks, twigs, branches, leftover material
-
Feed size:
-
Diameter less than 45cm,Length less than 140cm
-
Blade:
-
6 pieces
-
Speed:
-
4500r/min
-
Depth of wood shaving:
-
1-5 mm
-
Usage:
-
shaving board,poultry farm,biological energy

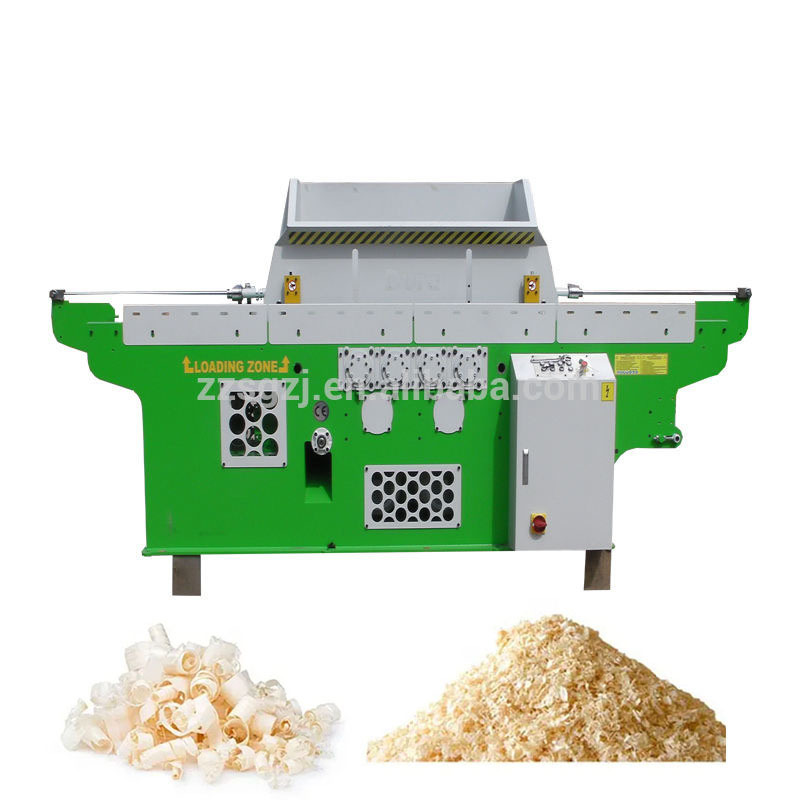

High Quality Wood Shaving Making Machine
Introduction of wood shaving machine wood shaving making machine
Shaving machine, also called wood crusher machine, wood shaving machine, wood chips machine. According to our domestic need and adopt Turkey process technology, we do some improvement on this machine.It can process the Stick, branches, branch to wood shavings.
1.Technical paremeters
|
Input material length(cm) |
140 |
|
Input material width(cm) |
45 |
|
Cutting head(set) |
4 |
|
Blade(set) |
6 |
|
RPM(r/min) |
4500 |
|
Diameter of input(mm) |
140 |
|
Power(kw) |
18.5+18.5+4+1.5=42.5kw |
|
Shaving depth(mm) |
1-5 |
|
Hopper route(mm) |
2200 |
|
Feeding speed (hydraulic)(m/min) |
6-15 |
|
Dimensions(W×L×H)(cm) |
115×515×180 |
|
weight(kg) |
2850 |
|
SG-145 |
DOC(depth of cut) |
|||||
|
1mm |
2mm |
3mm |
4mm |
5mm |
||
|
Speed |
0.10 m/sc |
427kg |
654kg |
880kg |
1107kg |
1334kg |
|
0.15 m/sc |
540kg |
880kg |
1221kg |
1561kg |
1901kg |
|
|
0.20 m/sc |
654kg |
1107kg |
1561kg |
2014kg |
2468kg |
|
|
0.25 m/sc |
767kg |
1334kg |
1901kg |
2468kg |
3035kg |
|
2.Wood shaving machine Introduction
Shaving machine, also called wood crusher machine, wood shaving machine, wood chips machine. According to our domestic need and adopt Turkey process technology, we do some improvement on this machine.It can process the Stick, branches, branch to wood shavings. hot sale wood shaving machine
Application range
1.It is widely used in chipboard (plywood), furniture manufacturing industry,it is very convenience for furniture factory;
2.It is the raw material of wood pulp paper for paper making factory;
3.In logistics, he can do some fragile padding, prevent damage;
4.It is widely used in poultryyard as padding in animal lodge,different animal should be used difference thickness wood shavings;
5.Besides,it can as the ignition material of biological energy source.
1.How is the product quality?
We have CE certification
We take a test on every product before delivery
Customers who have purchased have said that the product quality is good.
2.Is the product price high?
We are supplier and the prices are ex-factory prices
Discount can be given according to quantity
3.
How long is the warranty of your equipment? Do you supply spare parts?
Our warranty period is one year generally. We can supply spare parts.
4.How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
5. Why choose Shuguang Heavy Machinery Co.,Ltd?
A: We are factory.
25-year’s experience in heavy machinery.
Professional team offers technical support to customers.
All our machines passed the CE certificate.
We have a professional after-sale service team to promptly and thoroughly solve your problems.
If you are looking for this machine,please contact us now!
