Quick Details
-
Mounting Type:
-
Standard
-
Description:
-
Microwave Radar Sensor Human Body Sensor Module
-
Lead time:
-
In stock
-
Lowest price:
-
Plz contact us
-
Service:
-
One-stop BOM Service
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JMY
-
Model Number:
-
RCWL-0516
-
Mounting Type:
-
Standard
-
Description:
-
Microwave Radar Sensor Human Body Sensor Module
-
Lead time:
-
In stock
-
Lowest price:
-
Plz contact us
-
Service:
-
One-stop BOM Service
Products Description

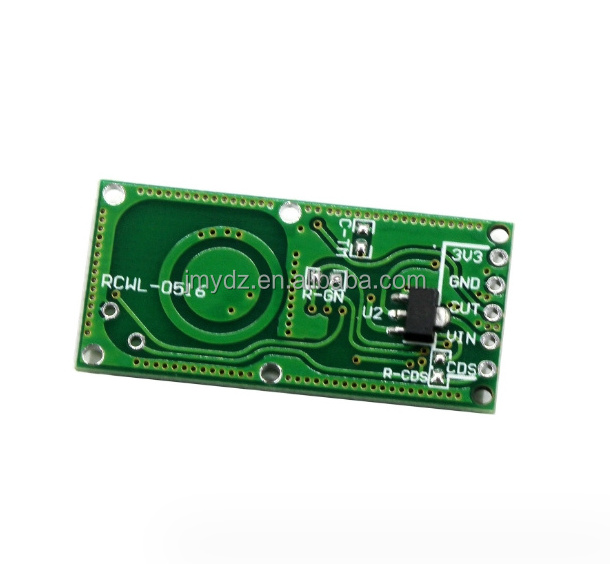

RCWL-0516
Microwave Radar Sensor 5-7M Human Body Sensor Module
1: 3V3
3.3V output voltage, driving current 100mA.
2: GND
Modular.
3: 0UT
Control signal output, when there is object movement in the detection area, 0UT outputs a high level; C-TI can set the repeated triggering time. If there is a triggering signal (object movement) during the repeated triggering time, it will continuously output a high level; If there are no moving objects in the detection area, output a low level.
4: VIN
Module power input, 4-28V.
5: CDS
Trigger control signal; Less than 0.7V, 0UT continuously outputs low level; Greater than 0.7V, tested for normal operation.
The CDS pin is externally connected to a photosensitive resistor, which can turn off the module detection function at night.
