Quick Details
-
Product name:
-
linear slot diffuser
-
Function:
-
saving supply and extract air combinations
-
Material:
-
aluminum alloy sheet
-
Material thickness:
-
1.0 / 1.2mm
-
Core:
-
black blades
-
Frame color:
-
powder coated RAL colors
-
Feature:
-
Blades can be adjusted manually
-
optional:
-
Plenum box
-
optional core:
-
Fixed and removable
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
FANRYN
-
Model Number:
-
LSD yf
-
Product name:
-
linear slot diffuser
-
Function:
-
saving supply and extract air combinations
-
Material:
-
aluminum alloy sheet
-
Material thickness:
-
1.0 / 1.2mm
-
Core:
-
black blades
-
Frame color:
-
powder coated RAL colors
-
Feature:
-
Blades can be adjusted manually
-
optional:
-
Plenum box
-
optional core:
-
Fixed and removable

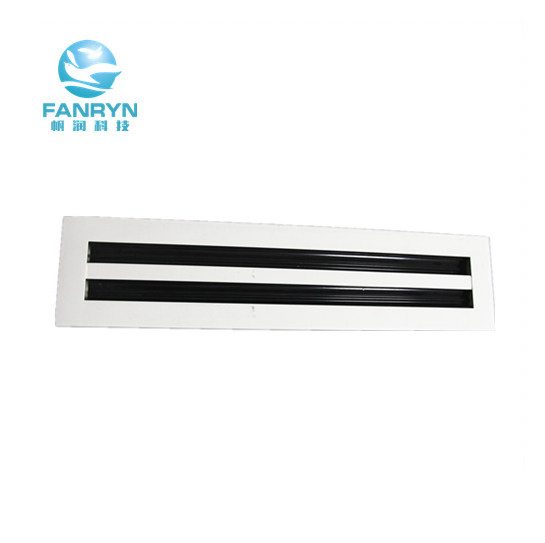

Customized Size High-performance Air Conditioning vent cover Aluminum Linear Slot Diffuser
|
SLOTS 1 |
A |
B |
C |
D |
H |
|
1 |
40 |
62.5 |
20 |
19 |
40/41.5 |
|
2 |
79 |
101.5 |
20 |
19 |
40/41.5 |
|
3 |
117 |
140 |
20 |
19 |
40/41.5 |
|
4 |
156 |
179 |
20 |
19 |
40/41.5 |
|
5 |
195 |
218 |
20 |
19 |
40/41.5 |
|
6 |
234 |
256.5 |
20 |
19 |
40/41.5 |
|
SLOTS 2 |
A |
B |
C |
D |
H |
|
1 |
40 |
80 |
32 |
19 |
40/41.5 |
|
2 |
79 |
119 |
32 |
19 |
40/41.5 |
|
3 |
117 |
157 |
32 |
19 |
40/41.5 |
|
4 |
156 |
196 |
32 |
19 |
40/41.5 |
|
5 |
195 |
235 |
32 |
19 |
40/41.5 |
|
6 |
234 |
274 |
32 |
19 |
40/41.5 |
|
SLOTS |
A |
B |
C |
D |
H |
|
1 |
45.5 |
68.5 |
20 |
25 |
40/41.5 |
|
2 |
89.5 |
112.5 |
20 |
25 |
40/41.5 |
|
3 |
133.5 |
156.5 |
20 |
25 |
40/41.5 |
|
4 |
177.5 |
200.5 |
20 |
25 |
40/41.5 |
|
5 |
221.5 |
244.5 |
20 |
25 |
40/41.5 |
|
6 |
265.5 |
288.5 |
20 |
25 |
40/41.5 |
|
SLOTS |
A |
B |
C |
D |
H |
|
1 |
45.5 |
85.5 |
32 |
25 |
40/41.5 |
|
2 |
89.5 |
129.5 |
32 |
25 |
40/41.5 |
|
3 |
133.5 |
173.5 |
32 |
25 |
40/41.5 |
|
4 |
177.5 |
217.5 |
32 |
25 |
40/41.5 |
|
5 |
221.5 |
261.5 |
32 |
25 |
40/41.5 |
|
6 |
265.5 |
305.5 |
32 |
25 |
40/41.5 |
Product Introduction of the linear slot diffuser
The frame & blades are made of aluminum.
The black blades can be fully adjusted vertically or horizontally from face opening.
Slot diffuser are space saving supply and extract air combinations.
Product Feature and the application of linear slot diffuser
-
Designed for variable air volume systems
-
Blades can be adjusted manually
-
Cutting part adopts the unique way of continuation
-
Fixed and removable core are optional
-
Plenum box is optional
If you are interested in our products, please { click here } to see all the products
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic corner protected + shrink film + strong carton box (Standard Export Packing).
Q3: what is your lead time for one 40HQ container order ?
A3: Usual 25-30 work days after placing order
Q4: What is your advantage on square ceiling diffuser products?
A4: Stamping frame structure is absolutely stable, not easy to be deformed and efficient production
Q5: Can we get samples?
A5: Yes, we supply free sample.
