Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Outdoor
-
Rated Lifting Moment:
-
1000KN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Weight (KG):
-
12000 kg
-
Product name:
-
Nucleon 100t Marine Travel Lift For Sale
-
Color:
-
Custom Paint Color
-
Main electrical parts:
-
Siemens
-
Type:
-
Box Girder
-
Hoisting mechanism:
-
Upper Trolley
-
Lifting mechanism:
-
Trolly
-
Control Method:
-
Remote Control
-
Power Source:
-
3 Phase 380V 50hz
-
Crane feature:
-
Heavy Duty 50t-600t travel lift Crane
-
Control model:
-
Push Button Control
Quick Details
-
Rated Loading Capacity:
-
50 Ton, 25 ton, 90 Ton, 100 ton, 10t, 200ton, 300ton, 500ton, 800ton, 1000ton, 600 ton, 1200 ton, customized
-
Max. Lifting Height:
-
32m
-
Span:
-
18-35m
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Outdoor
-
Rated Lifting Moment:
-
1000KN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Weight (KG):
-
12000 kg
-
Product name:
-
Nucleon 100t Marine Travel Lift For Sale
-
Color:
-
Custom Paint Color
-
Main electrical parts:
-
Siemens
-
Type:
-
Box Girder
-
Hoisting mechanism:
-
Upper Trolley
-
Lifting mechanism:
-
Trolly
-
Control Method:
-
Remote Control
-
Power Source:
-
3 Phase 380V 50hz
-
Crane feature:
-
Heavy Duty 50t-600t travel lift Crane
-
Control model:
-
Push Button Control
Product Specification

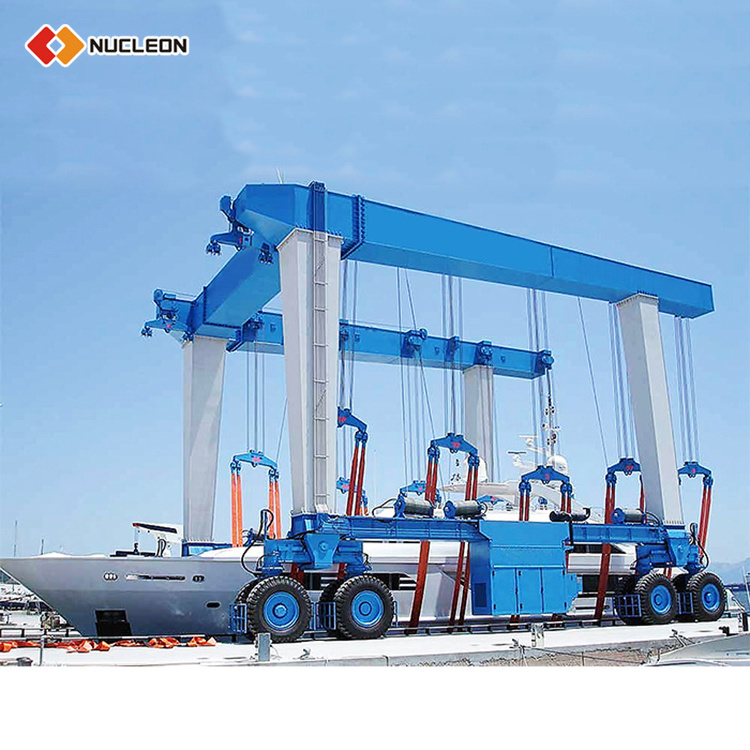

Travel Lift Crane
Yacht handling cranes, also known as boat handlers. It is widely used in water sports games, yacht clubs, navigation, shipping and learning, etc. The upper structure is double door frame "U" type connection framework to meet the different ship types lifting operation demand. It can transport different tonnage (10 tons - 1000 tons) of boats or yachts from the shore dock for on-shore maintenance, repair or launching of new vessels.
The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the new type , it can transfer the boat which the height surpass its height.
Product Paramenters
|
Rated Capacity(T)
|
100
|
150
|
200
|
300
|
|||
|
Grounding Sepcific Pressure(KG/M)
|
11.5
|
11
|
11.5
|
6.5
|
|||
|
Grade Ability(M/Min)
|
2%
|
4%
|
4%
|
4%
|
|||
|
Lifting Speed(M/Min)--Full Load
|
0~2
|
0~1
|
0~2
|
0~1
|
|||
|
Lifting Speed(M/Min)--Non Load
|
0~5
|
0~4
|
0~3
|
0~3
|
|||
|
Traveling Speed(M/Min)--Full Load
|
0~20
|
0~20
|
0~20
|
0~20
|
|||
|
Traveling Speed(M/Min)--Non Load
|
0~35
|
0~35
|
0~35
|
0~35
|
|||
|
Working Ambient Temperature
|
-20℃~+50℃
|
|
|
|
|||
