Quick Details
-
Brand Name:
-
HYCOM
-
Use:
-
FTTx Solution
-
Warranty Time:
-
1 Year
-
Application:
-
CATV System
-
Return Loss:
-
>45dB
-
Material:
-
Aluminum
-
Weight:
-
4kg
-
Warranty:
-
1 Year / 12 Months
-
Condition:
-
Brand-new
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
HY-IP24
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HYCOM
-
Use:
-
FTTx Solution
-
Warranty Time:
-
1 Year
-
Application:
-
CATV System
-
Return Loss:
-
>45dB
-
Material:
-
Aluminum
-
Weight:
-
4kg
-
Warranty:
-
1 Year / 12 Months
-
Condition:
-
Brand-new
Product Description

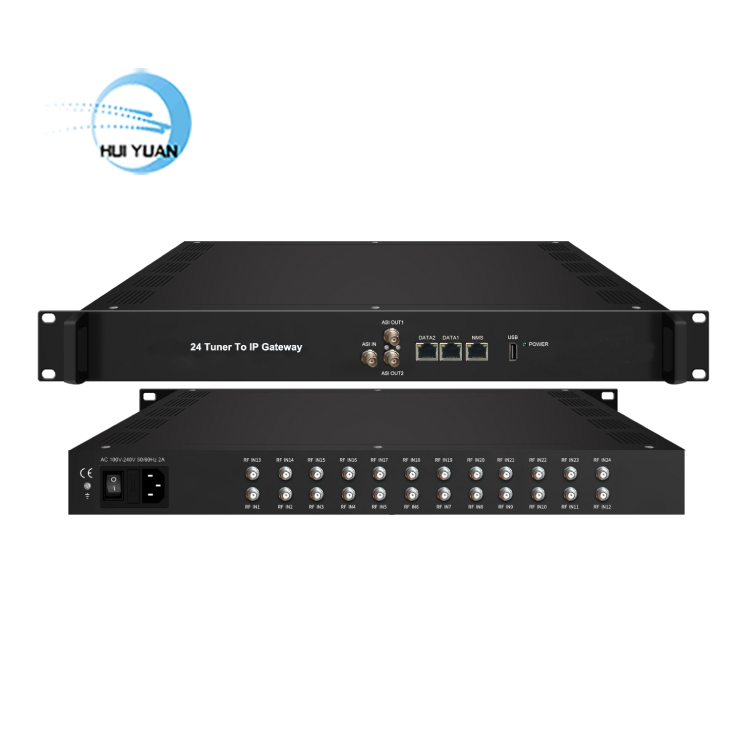

24 Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 24 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 24 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
Details Images
Specification
|
Input
|
|
24 tuners input +1 ASI input---SPTS/MPTS output
|
|
|
|||
|
|
|
DVB-C
|
Frequency In
|
60~890MHz
|
|||
|
|
|
|
Standard
|
J.83A(DVB-C), J.83B, J.83C
|
|||
|
|
|
|
Constellation
|
16/32/64/128/256 QAM
|
|||
|
|
|
DVB-T/T2
|
Frequency In
|
60~890MHz
|
|||
|
|
|
|
Bandwidth
|
6/7/8 M bandwidth
|
|||
|
|
|
ISDB-T
|
Frequency In
|
60~890MHz
|
|||
|
|
|
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
0.5~45Msps
|
|||
|
|
|
|
Signal Strength
|
- 65- -25dBm
|
|||
|
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|||
|
|
|
|
Constellation
|
QPSK
|
|||
|
|
|
|
Max input bitrate
|
≤125 Mbps
|
|||
|
|
|
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~34Msps;
|
|||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK:3/4, 4/5, 5/6, 8/9, 9/10
|
|||
|
|
|
|
Constellation
|
QPSK, 8PSK, 16APSK, 32APSK
|
|||
|
|
|
|
Max input bitrate
|
≤125 Mbps
|
|||
|
|
|
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK: 0.5~40Msps
32APSK: 0.5~34Msps
|
|||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
|||
|
|
|
|
Constellation
|
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
|
|||
|
|
|
|
Max input bitrate
|
≤125 Mbps
|
|||
|
|
|
|
Frequency In
|
54~858MHz
|
|||
|
|
|
|
Bandwidth
|
6M bandwidth
|
|||
|
|
|
|
Constellation
|
8VSB
|
|||
|
BISS Descrambling
|
|
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
|
|
|
|||
|
Output
|
|
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast
|
|
|
|||
|
|
|
24 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast
|
|
|
|||
|
|
|
Web based management
|
|
|
|||
|
|
|
Ethernet software upgrade
|
|
|
|||
|
|
|
Dimension
|
|
482mm×410mm×44mm (W×L×H)
|
|||
|
|
|
Approx weight
|
|
3.6kg
|
|||
|
|
|
Environment
|
|
0~45℃(work); -20~80℃（Storage）
|
|||
|
|
|
Power requirements
|
|
100~240VAC, 50/60Hz
|
|||
|
|
|
Power consumption
|
|
20W
|
|||
Order Information:
HY-21-IP24A: 24 tuners input +1 ASI input---SPTS Output
HY-21-IP24A: 24 tuners input +1 ASI input--- MPTS output
