Carousel Hanging Hook Overhead Monorail Conveyor Shot Blasting Machines for Aluminum Die Castings Structural Steel Works

Carousel Hanging Hook Overhead Monorail Conveyor Shot Blasting Machines for Aluminum Die Castings Structural Steel Works

FOB Reference Price: Get Latest Price

≥1 Sets

US $9999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 11KW*2

Dimension(L*W*H):: Customised

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: shot blasting machine

color:: according to your requirement

Certification:: ce

Quick Details

Place of Origin:: Shandong, China

Brand Name:: BESTECH

Weight (KG):: 8500 KG

Power:: 11KW*2

Dimension(L*W*H):: Customised

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: shot blasting machine

color:: according to your requirement

Certification:: ce

Hanging Chain Shot Blasting Machine

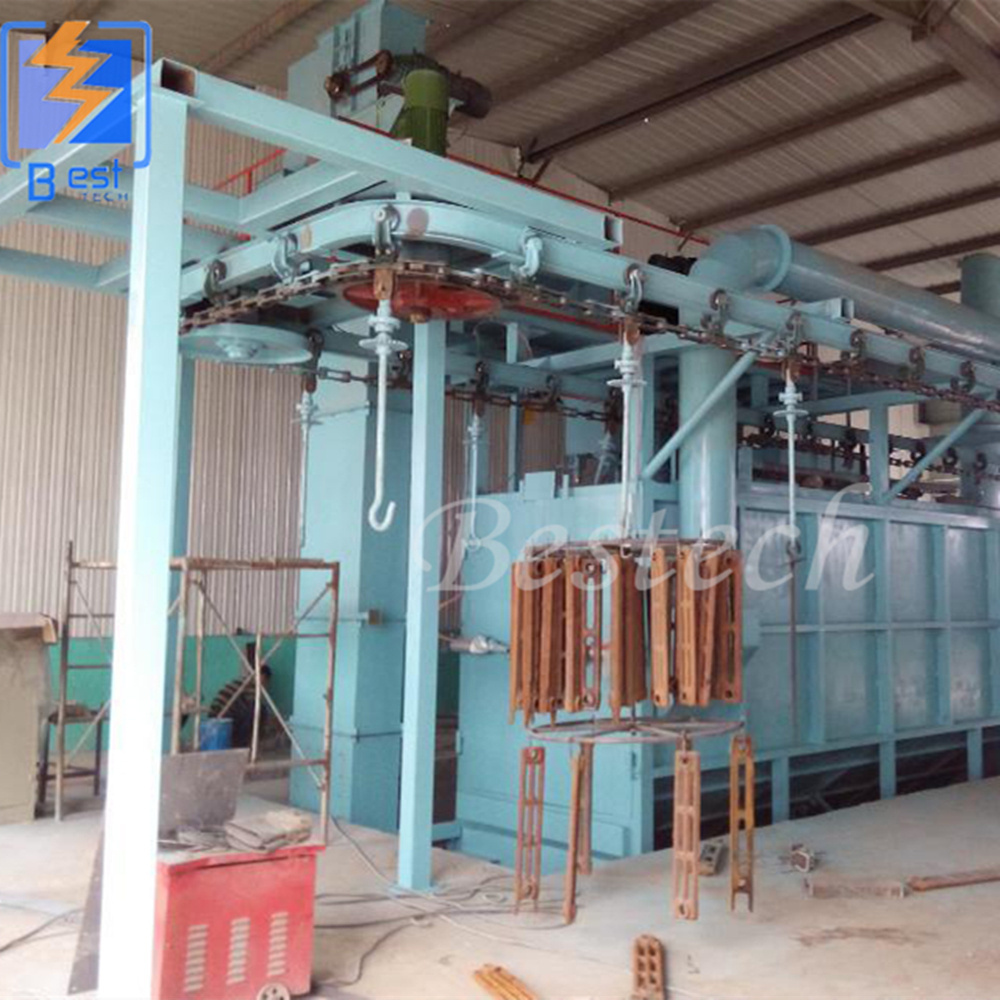

Overhead conveyor shot blasting machine with hooks is designed treatment for mixed loads of medium or large work pieces which are particularly fragile or sensitive that cannot be tumbled in bulk loads. Overhead conveyor shot blasting machines with hooks is ideal for heavy and complex shaped workpieces like: casts, welded constructions, forged and pressed parts, remodeled cold or hot and of various complicated forms, steel bottle, springs, etc. Single hook load capacity can be from 30kg to 300 kg. Hook quantity and conveyor speed is calculated based on the productivity requirement. Work pieces are placed in work piece holders or are suspended directly from the running gear's rotating hook. Work pieces within the blast machine are rotating and moving in a way that makes it possible for very effectively cleaning. A monorail drives the large or heavy parts into and out of the blasting cabinet. Work pieces are loaded outside the blast cabinet on hooks or hanging tools and moved into the blasting chamber. After blasting finished, the hooks move out and workpieces are removed from the hooks to be unloaded. Monorail systems allow multiple work hooks for loading/unloading while another is being blasted, providing high productivity and continuous blasting process.

ApplicationMonorail conveyor (hanging chain) shot blasting machine is suitable for shot blast cleaning of mass production of small and medium-sized iron castings, steel casting, forging and stamping workpiece, particularly suitable for forging, casting workpiece cleaning, to remove the adhering sand, rust, scale, dirt of workpiece surface, make the workpiece presents clean surface, eliminate the internal stress of workpiece, improve the fatigue resistance, increase the workpiece painting adhesion, and eventually to improve workpiece surface and inner quality.As a rule, overhead rail shot blasting machine is offered either for batch and continuous processing.

Type	Q383/Q483	Q385/Q485	Q4810
Cleaning workpieces size(mm)	φ800*1200	φ1000*1500	φ1000*2500
Number of work position	2	2	2
Quantity of impeller head	4	4	6
Impeller head volume(kg/min)	4*250	4*250	6*250
Impeller head power(kw)	4*15	4*15	6*15
Max hangering weight(kg)	300	500	1000
Productivity hanger(/h)	30~60	30~60	40~60
Size of the cleaning room(mm)	768020002900	768020002900	768020003800
Total power(kw)	73.15	73.15	114.72

our service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.

7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

FAQ

Q:What kind of abrasives to be used for hook shot blasting machine ?

A: Steel shots, steel grits or steel cut wire.

Q:How many operators are needed to run hook shot blasting machine ?

A: 1 operator.

Q: Is it possible to install hook shot blasting machine by buyer himself ?
A: Yes
